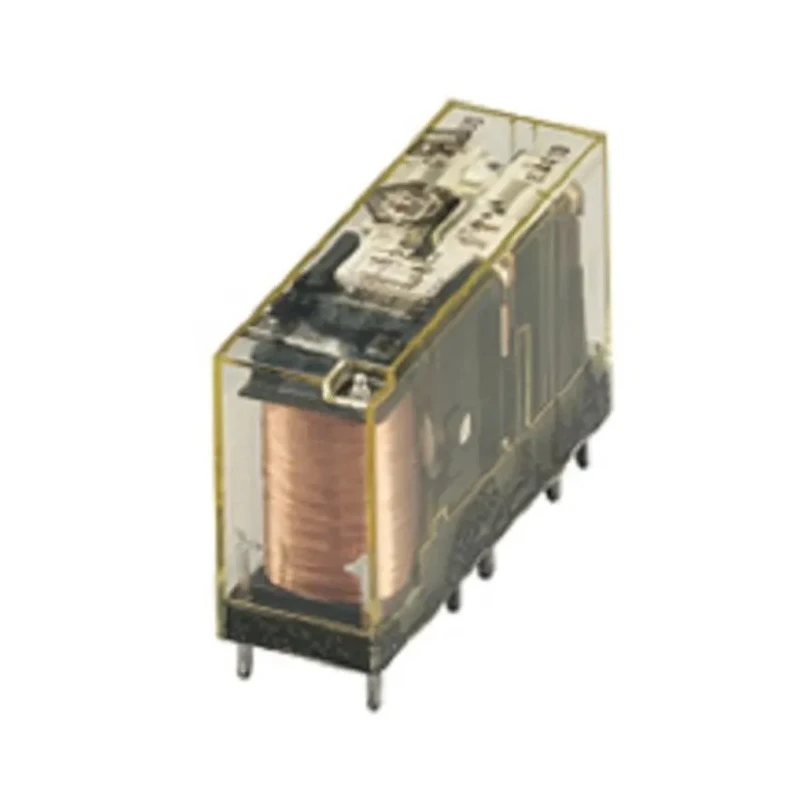

Idec PCB Power Relay 12V DC Coil 30A Switching Current 4 Pole Screw Terminal RF1V-2A2BL-D12

Idec RF1V-2A2BL-D12 PCB Power Relay features a robust 12V DC coil designed to switch currents up to 30A safely and efficiently. This Power Relay is intended for industrial and electrical automation uses where reliable high current switching is required.

Equipped with 4 poles using silver alloy contact material, it ensures long-lasting conductivity and minimal contact resistance of 100mΩ for superior performance. The coil resistance is 400Ω with a low coil power consumption of only 0.36W, making it energy efficient in continuous operation.

This relay is designed for mounting on printed circuit boards (PCB) using screw terminals, providing secure and easy installation. Its compact size (40mm length, 24mm height, and 13mm width) allows use in space-constrained applications.

Operating temperatures range from -40°C to 85°C, suitable for harsh industrial environments. The switching voltage is rated at 125V AC and DC, accommodating a wide range of power relay implementations with a switching power of 180W.

This Idec Power Relay is compliant with RoHS directives, ensuring it meets environmental and safety regulatory requirements. Its construction and performance make it ideal for use in industrial, manufacturing, electrical control, and automation systems.

Package contains a single PCB power relay unit with 4 poles and screw terminal connections, model RF1V-2A2BL-D12.

For those seeking quality power relays suitable for demanding electrical switching applications, the Idec RF1V-2A2BL-D12 is a reliable choice widely used across industrial automation and control.

Explore EnvMart’s extensive catalogue of Power Relays and related industrial components for compatible products and solutions. The relay coil operates at 12V DC with a coil resistance of 400Ω. It supports a switching current of 30A and switching power of 180W.

Switching voltage is 125V AC or DC, suitable for various electrical applications. Contact configuration includes 4 poles with silver alloy contacts for reliable conductivity. Mount type is PCB with screw terminals for secure connections.

Operating temperature ranges from -40°C to 85°C ensuring durability in harsh environments. The relay dimensions are 40mm length, 24mm height, and 13mm width. Contact resistance is low at 100mΩ ensuring minimal signal loss.

Coil power consumption is very low at 0.36W for energy efficiency. The product complies with RoHS standards for environmental safety.
