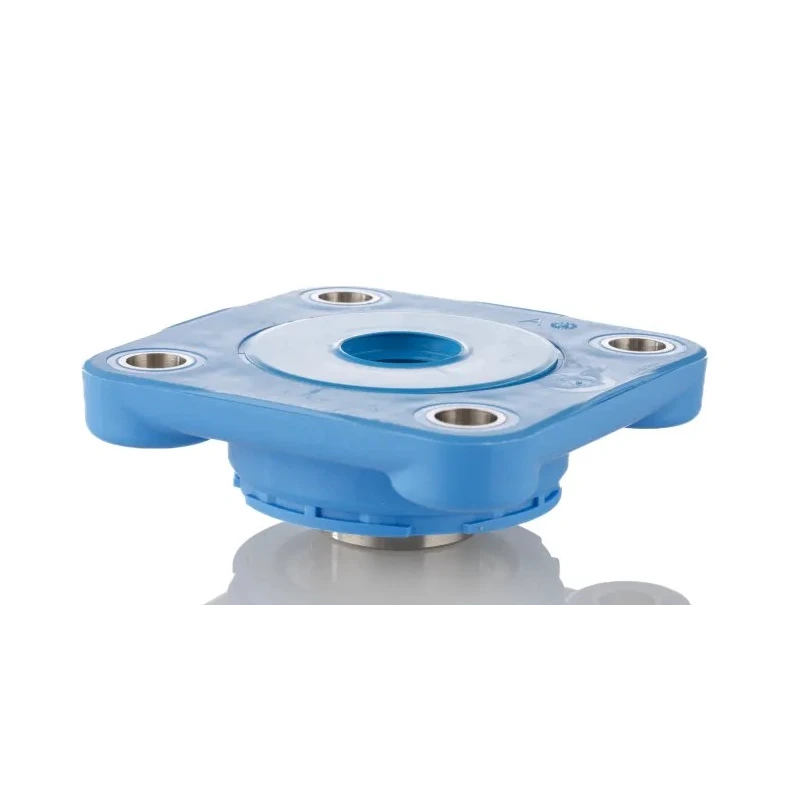

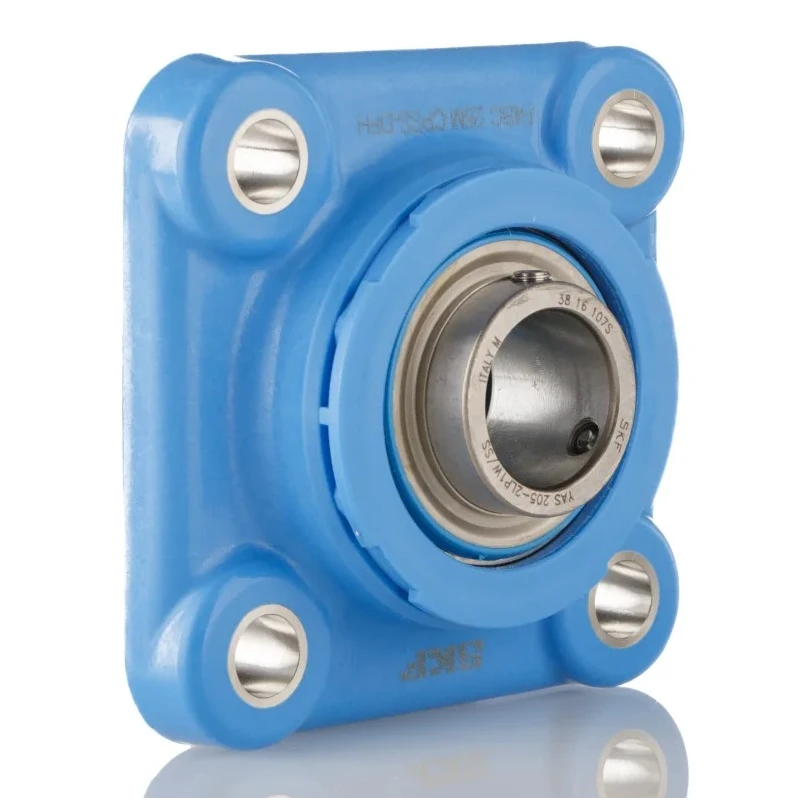

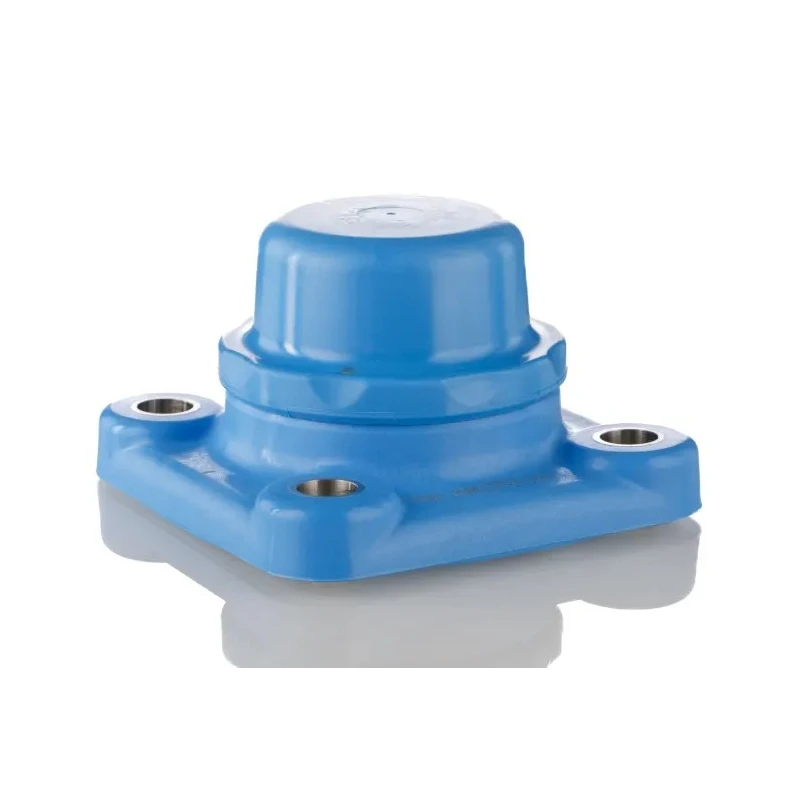

SKF Stainless Steel 4 Hole Flange Bearing Unit 25 mm Inside Diameter F4BC 25M-CPSS-DFH
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | SKF |
| Material | Stainless Steel |
| Length | 99mm |
| Model | F4BC 25M-CPSS-DFH |
| Depth | 55.6mm |
| Width | 55.6mm |
| Series | F4BC 25M-CPSS-DFH |
| Inside Diameter | 25mm |
| Limiting Speed | 700rpm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 212-4515 Brand: [SKF](https://in.rsdelivers.com/brands/skf)Manufacturers Part No.: F4BC 25M-CPSS-DFH |
| Static Load Rating | 7.8kN |
| Better World Claim | Extended Product Life |
| Dynamic Load Rating | 11.9kN |
| Mount Hole Size | 11.5 mm |
| Mount Hole Centre-to-Centre | 70mm |
| Number of Mount Holes | 4 |
| Locking Type | Screw |
Key Features
- The unit features a polypropylene housing reinforced with glass fibre for resistance to detergents and contaminants.
- Includes a sealed-for-life ball bearing with food-grade grease for hygienic applications.
- Back seals and end cover protect against shaft contamination and user injury.
- Suitable for industrial use with a limiting speed of 700 rpm and dynamic load rating of 11.9 kN.
- Mount hole size is 11.5 mm with 4 mount holes for secure installation.
- Ideal for applications in food and beverage, pharmaceutical, medical, and oil and gas industries.
- Designed to accommodate static misalignment by tilting the housing.
- Static load rating of 7.8 kN ensures heavy-duty operational reliability.
Product Description
SKF F4BC 25M-CPSS-DFH is a stainless steel 4 hole flange bearing unit with a 25 mm inside diameter, designed for robust industrial applications that require reliability and hygiene compliance.
The bearing unit consists of a polypropylene housing reinforced with glass fibre, making it resistant to wear, high temperatures, detergents, and contaminants. This ensures long-lasting performance in harsh environments commonly found in food, beverage, pharmaceutical, medical, and oil and gas industries.
The unit incorporates a sealed-for-life ball bearing that is lubricated with food-grade grease, making it suitable for hygienic environments. Back seals protect the bearing against shaft-side contamination, while an end cover protects the exposed shaft end to avoid user injury.
Designed to support heavy-duty loads, the bearing unit has a dynamic load rating of 11.9 kN and a static load rating of 7.8 kN. It accommodates initial static misalignment by allowing the housing to tilt, providing operational flexibility and reliability. The limiting speed for this unit is 700 rpm, making it suitable for various industrial rotary shaft applications.
The unit features a polypropylene (PP) housing reinforced with glass fibre for strength and resistance to harsh chemicals. Sealed-for-life ball bearing lubricated with food-grade grease ensures hygienic operation. Back seals and end cover protect against contamination and ensure user safety.
Static load rating of 7.8 kN and dynamic load rating of 11.9 kN provide durability under heavy loads. Limiting speed up to 700 rpm suitable for industrial environments. Four mounting holes of size 11.5 mm enable secure flange attachment.
Designed to handle industrial applications in food processing, pharmaceuticals, medical devices, and oil and gas sectors. Inside diameter of 25 mm and overall dimensions length 99 mm, width 55.6 mm, depth 55.6 mm. This SKF flange bearing unit is made in Italy, ensuring high manufacturing standards and quality control.
Explore the range of SKF Bearing Units on EnvMart for reliable mechanical and fluid power components suited to industrial rotary bearing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inside diameter of this bearing unit is 25 mm.
The dynamic load rating for the SKF F4BC 25M-CPSS-DFH is 11.9 kN.
The static load rating of the SKF F4BC 25M-CPSS-DFH is 7.8 kN.
The maximum limiting speed for this unit is 700 rpm.
The overall dimensions of this bearing unit are 99 mm in length, 55.6 mm in width, and 55.6 mm in depth.
This bearing unit has four mounting holes.
The size of the mounting holes is 11.5 mm.
The bearing unit features a stainless steel construction and a polypropylene housing reinforced with glass fibre.
This bearing unit is suitable for applications in the food and beverage, pharmaceutical, medical, and oil and gas industries.
Yes, this bearing unit is designed to accommodate static misalignment by allowing the housing to tilt.
The sealed-for-life ball bearing is lubricated with food-grade grease, making it suitable for hygienic applications.
This bearing unit is manufactured in Italy.
