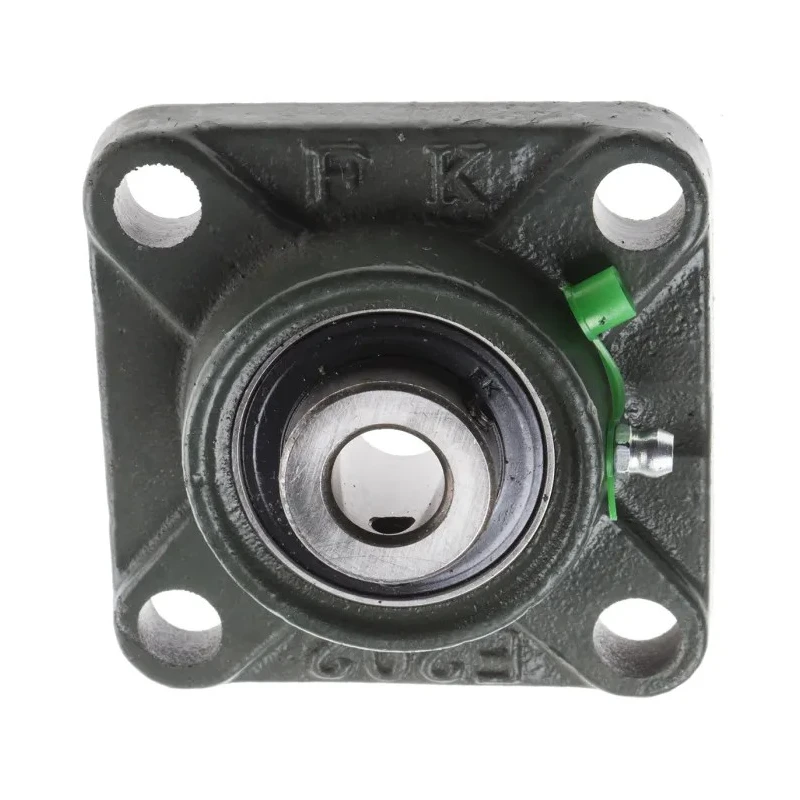

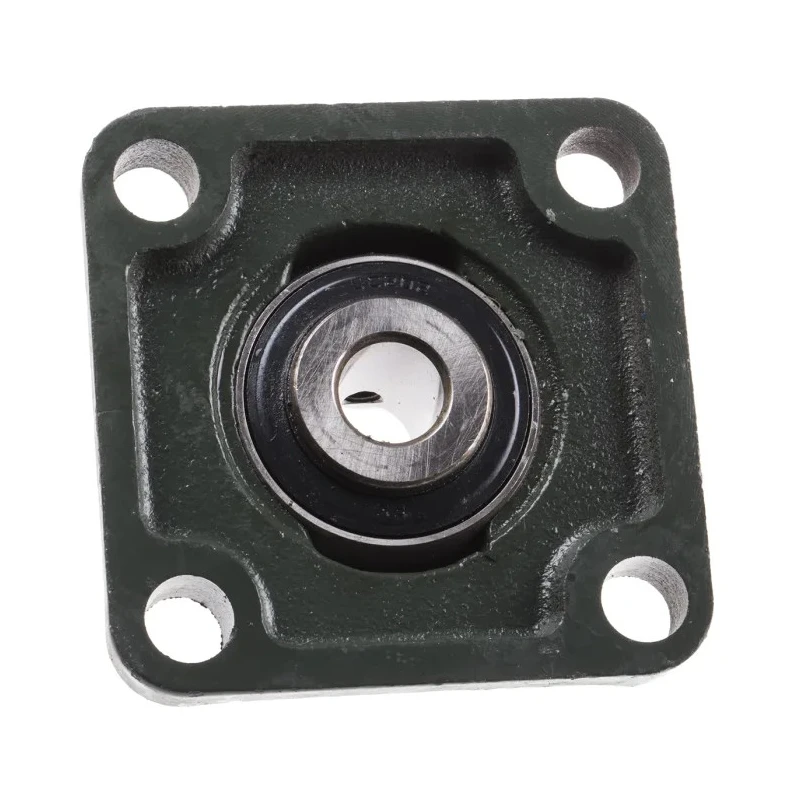

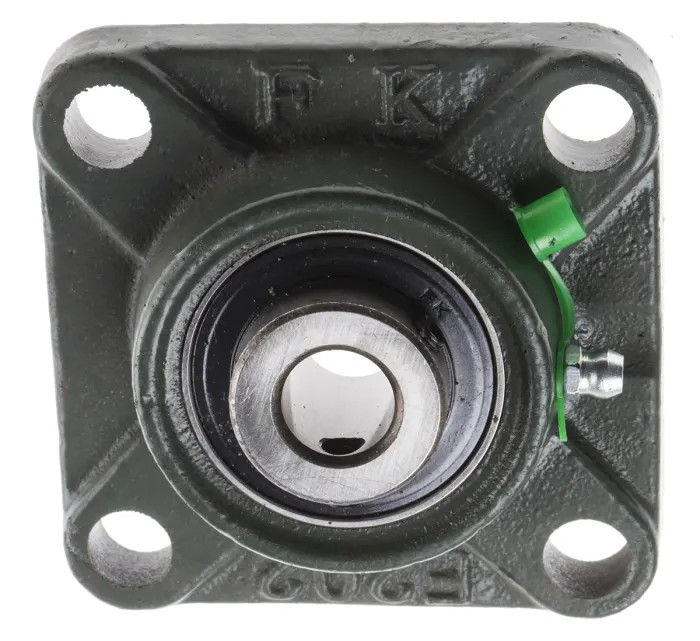

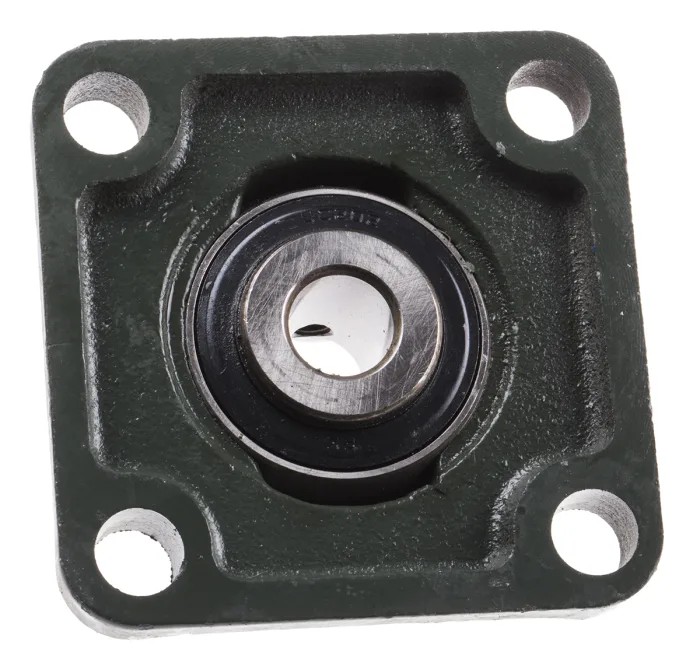

RS PRO 4 Hole Flange Bearing Unit with 15 mm Inside Diameter Cast Iron Body UCF202

RS PRO UCF202 4 Hole Flange Bearing Unit is a cast iron constructed bearing unit featuring a 15 mm inside diameter precise bore designed for normal duty industrial applications. It is engineered to accommodate moderate shaft misalignment and provide stable support to rotating elements.

The square flange design with four mounting holes of 12 mm diameter ensures secure and stable fixture in machines. The compact size with length and width measuring 86 mm and depth of 33.3 mm makes it suitable for equipment where space efficiency is important.

This bearing unit is widely used in varied industrial environments including agricultural machinery, bakery equipment, construction machinery, forestry tools, marine applications, and textile manufacturing machines. The flange type bore allows for straightforward shaft installation and maintenance.

Manufactured in China under RS PRO's quality standards, this bearing unit meets typical industrial requirements without additional third-party certifications. Cast iron body provides durability and reliability in industrial use.

Suitable for moderate initial shaft misalignment. Four mounting holes with 12 mm diameter for secure installation. Length and width dimensions are 86 mm each, ensuring compact design. Depth of 33.3 mm supports robust bearing placement.

Mount hole center-to-center distance measures 64 mm. Flange bore type designed for easy shaft mounting. Commonly used in agricultural, construction, marine, textile, and forestry equipment. Manufactured in China with standard quality controls.
