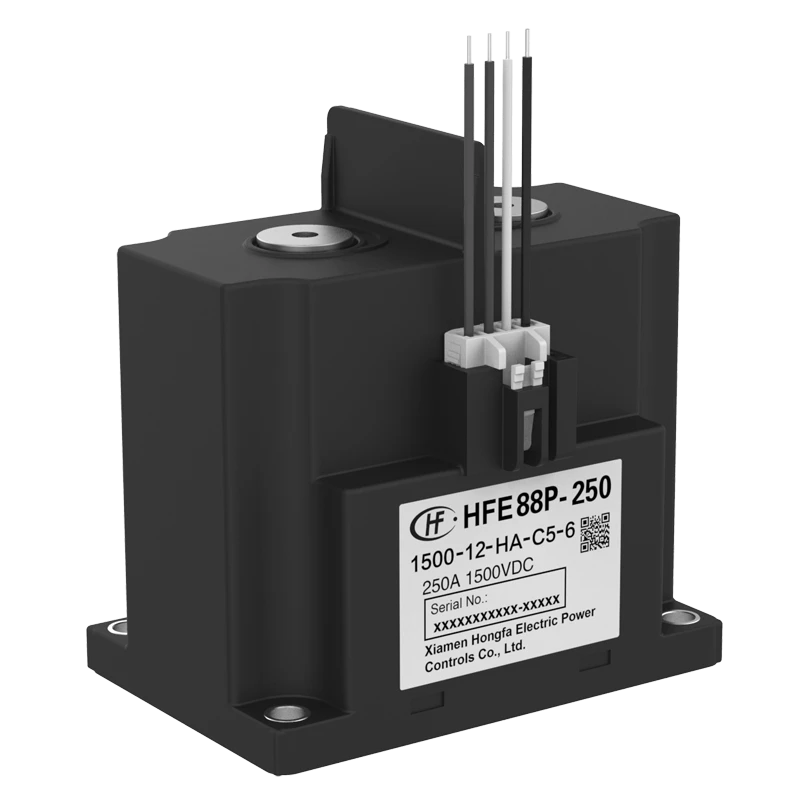

Direct Current Relay HFE88P-250

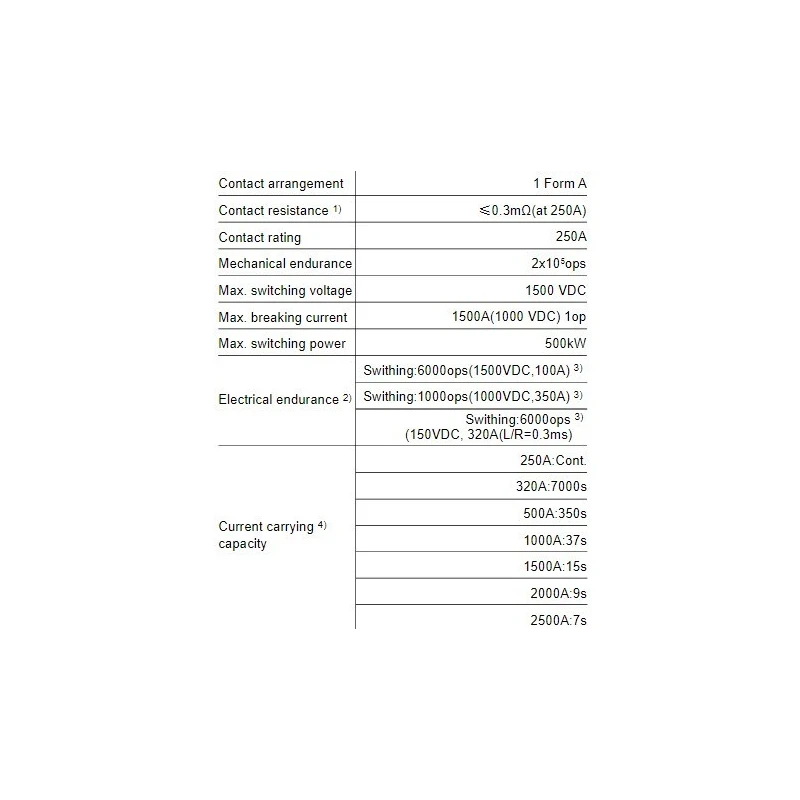

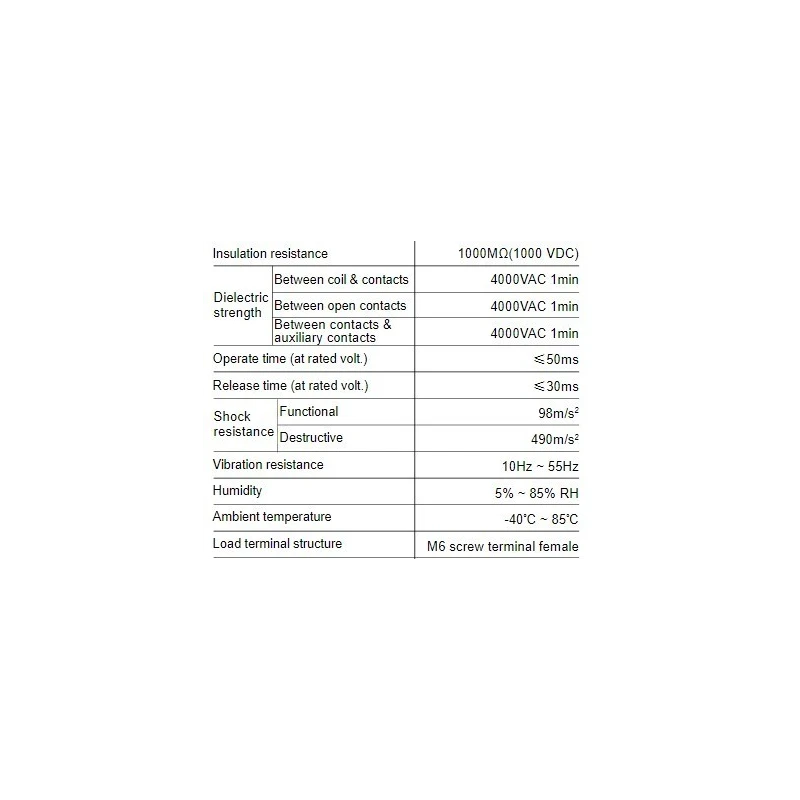

Specifications
| Humidity | 5% ~ 85% RH |
|---|---|
| Ambient Temperature (ºC) | -40 ºC to 85 ºC |
| Contact arrangement | 1 Form A |
| Load terminal structure | M6 Screw terminal female |
Key Features
- Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
- Carrying current 250A continuously at 85°C.
- Insulation resistance is 1000MO(1000 VDC), and dielectric strength between the coil and contacts is 3.3kV, which meets the requirements of IEC 60664-1.
Product Description
Direct Current Relay, HFE88P-250 is a relay that performs high-voltage and high-capacity urgent shutdown of DC circuits. These relays not only energize DC circuit but also shutdown the high voltage circuit at high speed when an error occurs. Direct current (DC) is steady and never reverses. A DC relay uses a single coil of wire wound around the iron core to make the electromagnet.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HFE88P-250 relay can carry a current of 250A continuously at a temperature of 85°C.
It has an insulation resistance of 1000 MΩ at 1000 VDC.
The dielectric strength between the coil and contacts is 3.3 kV, which meets IEC 60664-1 requirements.
The ambient temperature range for this relay is -40°C to 85°C.
It features a 1 Form A contact arrangement.
The load terminal structure is an M6 screw terminal female.
This relay can operate in a humidity range of 5% to 85% RH.
It uses ceramic brazing sealed technology to guarantee no risk of arc leaking, ensuring safety against fire or explosion.
It is a direct current (DC) relay that uses a single coil of wire wound around an iron core to create an electromagnet.
Yes, it is designed to handle high-voltage applications effectively, providing rapid shutdown capabilities when necessary.
