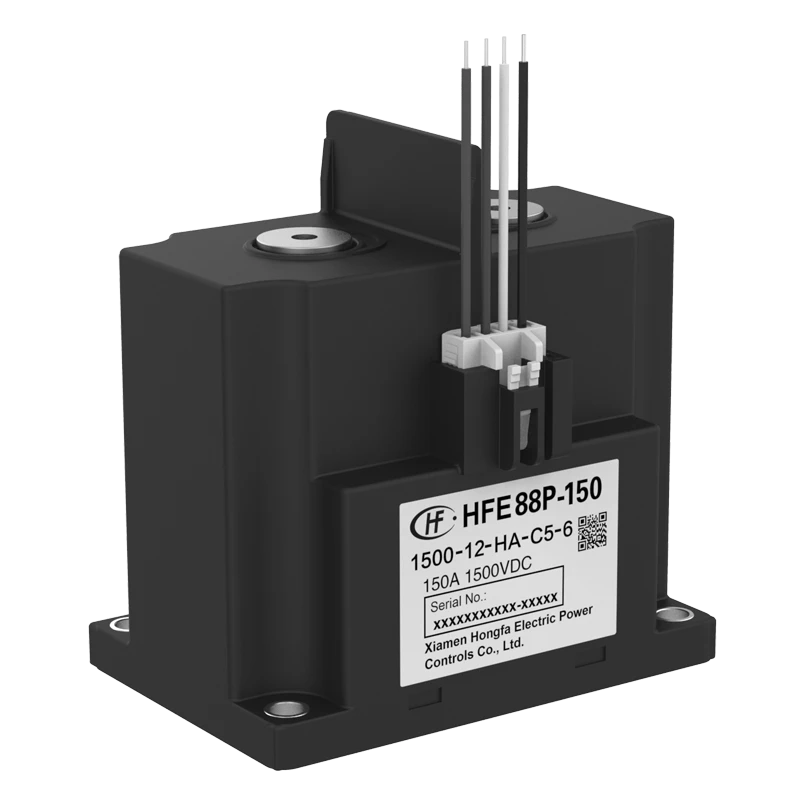

Direct Current Relay HFE88P-150

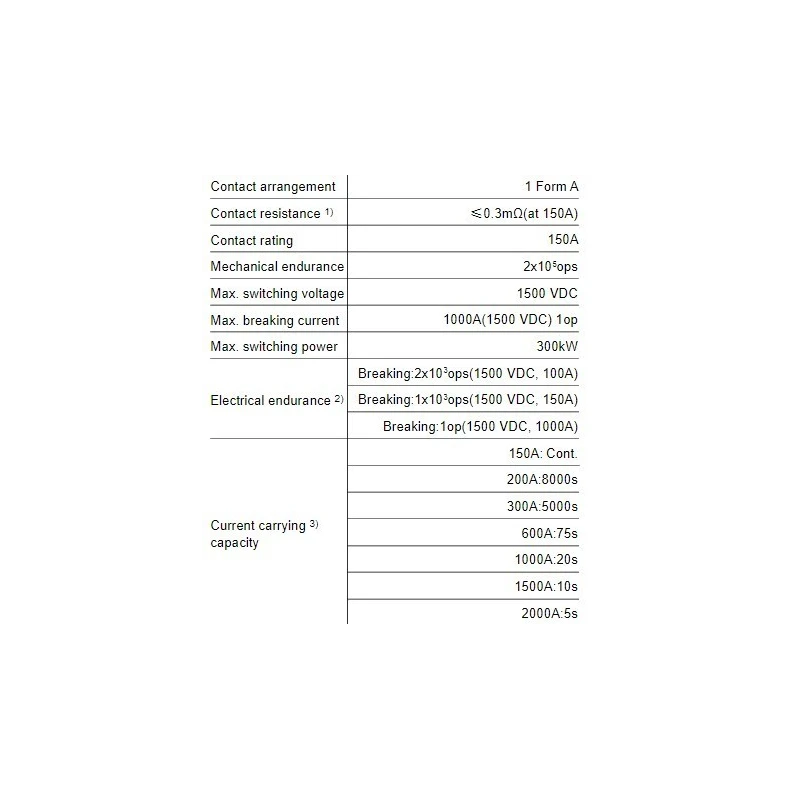

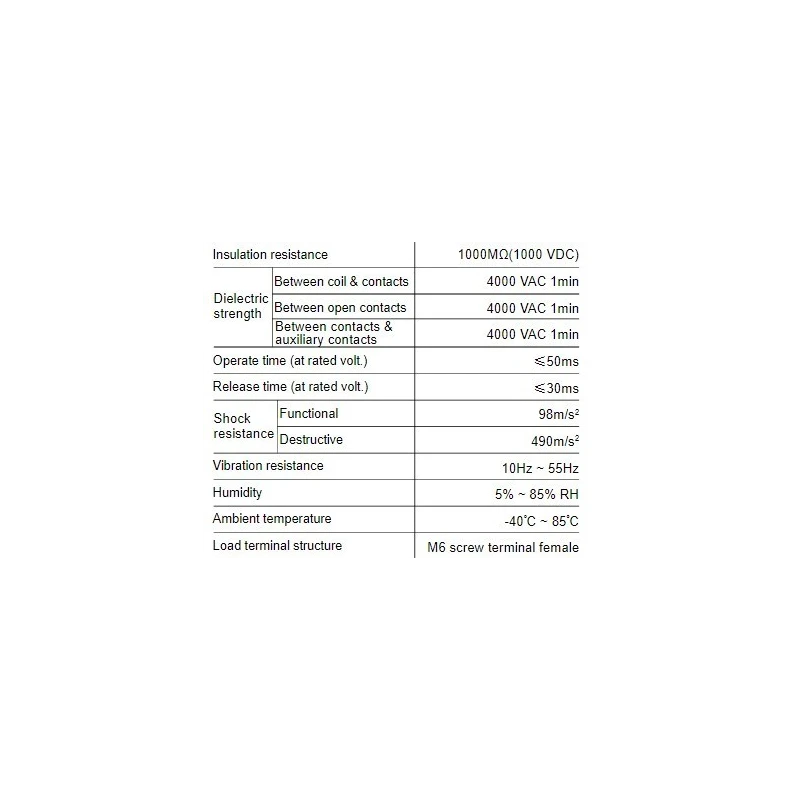

Specifications
| Humidity | 5% ~ 85% RH |
|---|---|
| Ambient Temperature (ºC) | -40 ºC to 85 ºC |
| Contact arrangement | 1 Form A |
| Load terminal structure | M6 Screw terminal female |
Key Features
- Ceramic brazing sealed technology guarantees no risk of arc leaking and ensures no fire or explosion.
- Carrying current 150A continuously at 85°C.
- Insulation resistance is 1000MO(1000 VDC), and dielectric strength between the coil and contacts is 3.3kV, which meets the requirements of IEC 60664-1.
Product Description
Direct Current Relay, HFE88P-150 is a relay that performs high-voltage and high-capacity urgent shutdown of DC circuits. These relays not only energize DC circuit but also shutdown the high voltage circuit at high speed when an error occurs. Direct current (DC) is steady and never reverses. A DC relay uses a single coil of wire wound around the iron core to make the electromagnet.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can carry a continuous current of 150A at 85°C.
The ambient temperature range is from -40 ºC to 85 ºC.
The insulation resistance is 1000 MΩ at 1000 VDC.
The dielectric strength is 3.3 kV, which meets IEC 60664-1 requirements.
It features a 1 Form A contact arrangement.
The load terminal structure is an M6 screw terminal female.
It can operate in a humidity range of 5% to 85% RH.
It uses ceramic brazing sealed technology to guarantee no risk of arc leaking.
It performs high-voltage and high-capacity urgent shutdown of DC circuits.
It is classified as a direct current (DC) relay.
It uses a single coil of wire wound around an iron core to create the electromagnet.
