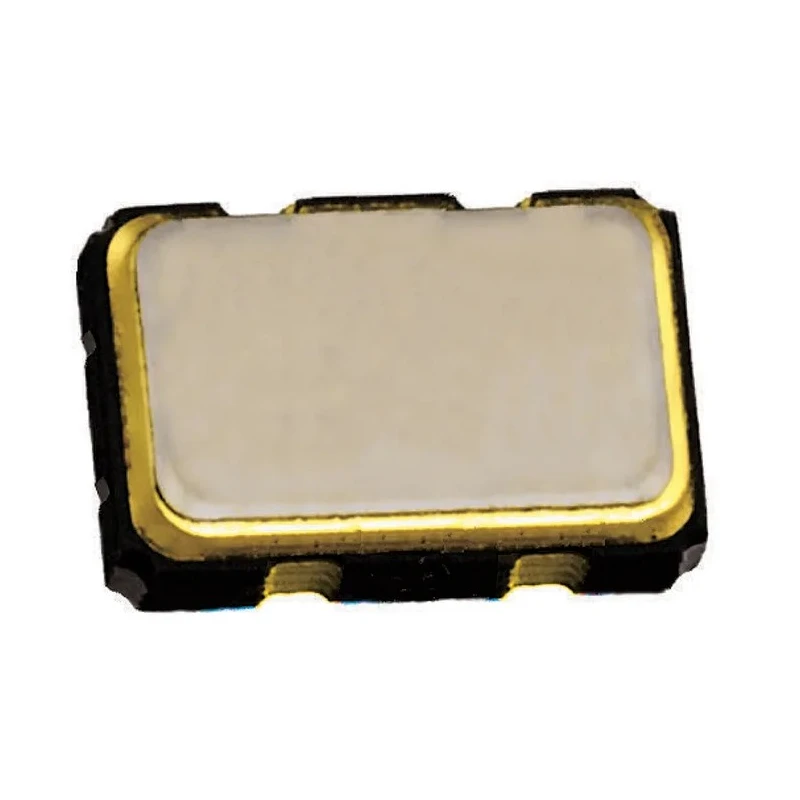

Euroquartz 12 MHz Crystal ±30 ppm Surface Mount 4-Pin 5 mm x 3.2 mm x 1 mm 12pF Load 12.000MHz MJ/30/30/-40+85/12pF
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Euroquartz |
| Height | 1mm |
| Length | 5mm |
| Model | 12.000MHz MJ/30/30/-40+85/12pF |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 50Ω |
Key Features
- Surface mount package allowing easy PCB integration.
- Operational temperature range from -40°C to 85°C for diverse environments.
- Stable frequency with ±30 ppm tolerance for precision applications.
- Low series resistance of 50Ω ensuring efficient oscillation.
- 4-pin configuration for reliable electrical connections.
- Packaged in tape and reel format suitable for automated assembly.
- RoHS compliant ensuring environmental safety and regulation adherence.
Product Description
Euroquartz 12.000MHz MJ/30/30/-40+85/12pF Crystal is a high-performance surface mount oscillator designed for precise frequency control in electronic circuits. This 4-pin crystal unit operates at a standard frequency of 12 MHz and features a load capacitance of 12pF, ensuring stability and accuracy with a frequency tolerance of ±30 ppm.
The compact rectangular ceramic package measures 5 mm in length, 3.2 mm in width, and 1 mm in height, making it suitable for modern, densely packed printed circuit boards. With a robust operating temperature range from -40°C to 85°C, this crystal is engineered to maintain performance across harsh industrial and commercial environments.
Featuring a low series resistance of 50Ω, the crystal efficiently sustains oscillation with minimal power loss. It is supplied in a tape and reel package that supports automated pick-and-place assembly, enhancing production efficiency in manufacturing processes.
The product complies with RoHS directives, ensuring it meets global environmental standards and is free from hazardous substances.
Applications for this crystal include use in frequency generation for communication devices, microcontrollers, instrumentation, and various electronic components requiring stable timing references. Its reliable design is suitable for industrial, laboratory, telecommunications, and consumer electronics.
Surface mount 12 MHz crystal unit. ±30 ppm frequency tolerance ensuring precise timing. Compact 5 mm x 3.2 mm x 1 mm ceramic package. Wide operating temperature range: -40°C to 85°C. Low series resistance of 50Ω for efficient oscillation.
4-pin configuration supporting secure electrical connections. RoHS compliant for environmental safety. Supplied in tape and reel packaging for automated assembly. Explore Euroquartz products and similar crystal components in the Crystals, Oscillators & Resonators category at EnvMart for advanced electronic design and production solutions.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal is 12 MHz.
This model operates within a temperature range of -40°C to 85°C.
The load capacitance of this crystal is 12 pF.
This crystal features a 4-pin configuration.

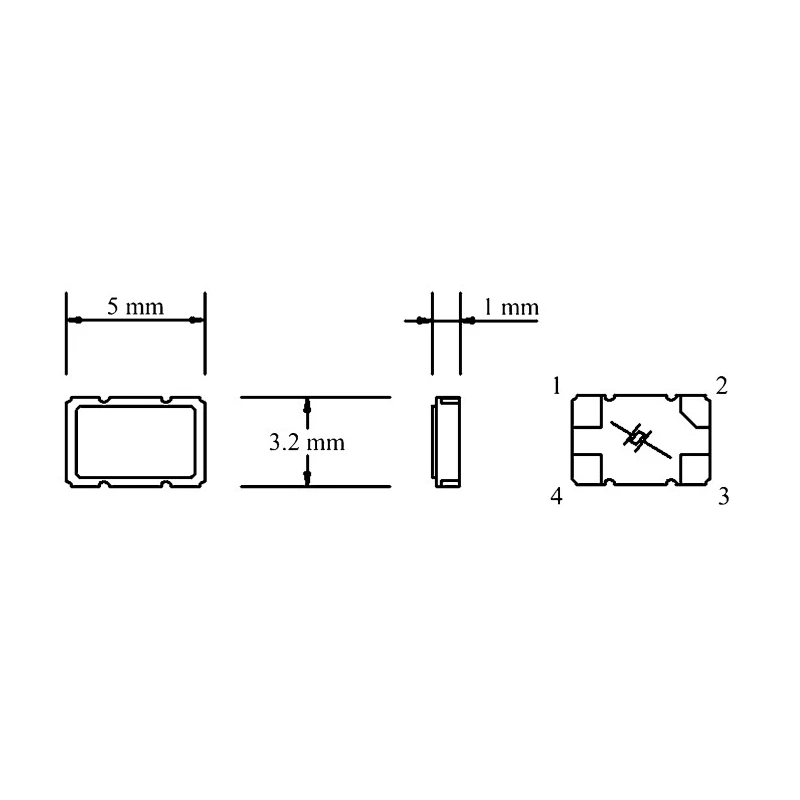

The dimensions of this surface mount crystal are 5 mm in length, 3.2 mm in width, and 1 mm in height.
The series resistance of this crystal is 50Ω.
It is supplied in a tape and reel format, suitable for automated assembly.
Yes, this crystal is RoHS compliant, ensuring it meets environmental safety standards.
This crystal is suitable for applications in frequency generation for communication devices, microcontrollers, and instrumentation.
This model uses a surface mount type.
The frequency tolerance of this crystal is ±30 ppm.
The country of origin for this crystal is Taiwan.
