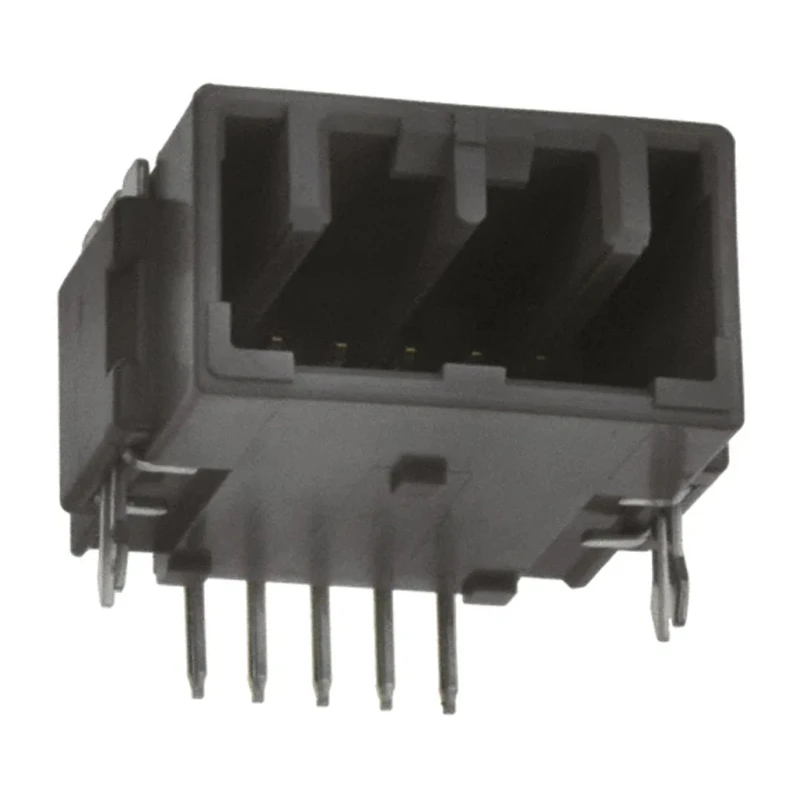

JAE MX34 Series Right Angle Through Hole PCB Header 5 Contacts 2.2 mm Pitch 1 Row Shrouded

JAE MX34005NF1 MX34 Series Right Angle Through Hole PCB Header is a high-quality automotive connector designed with 5 contacts, a 2.2 mm pitch, and 1 row. This shrouded connector ensures secure and reliable wire-to-board connections through through-hole mounting with solder termination. Operating between -40°C and 85°C, it is engineered with a durable glass filled syndiotactic polystyrene housing and brass contacts with tin plating to resist corrosion and external mechanical stress.

The MX34 series connectors are compact yet robust, intended for automotive and industrial electronics. The right angle design reduces board space and facilitates ease of installation. Its box-type pin header combined with a double locking mechanism enhances mating security and workability by lowering mating forces to 80N or less. The double leaf spring provides excellent resistance to twisting forces ensuring long-lasting contact integrity.

The preset-type retainer ensures that connectors are fully engaged upon insertion, preventing incomplete connections that could affect performance. This connector is suited for applications requiring reliable, durable PCB connections, including automotive control units, sensor interfaces, and other electronic assemblies exposed to various environmental conditions.

This PCB header features a single row configuration with 5 male brass contacts plated with tin. It operates reliably within a temperature range of -40°C to 85°C. The housing is made from glass filled syndiotactic polystyrene for durability.

The connector system is wire-to-board with solder termination type. The MX34 series ensures reduced mating force and improved workability suited for automotive applications. Its shrouded design and preset double locking mechanism provide secure connection and prevent incomplete contacts.

The contacts have a double leaf spring for high resistance to twisting and external forces.

This connector is essential for automotive electronics manufacturing, industrial control systems, and any application requiring high reliability PCB headers with compact and robust design features. Discover the entire range of automotive connectors and PCB Headers for your projects at EnvMart.
