Selvo 4 Ways TPN Phase Selector Distribution Board (Fitted with 1 Pole 3 Ways 63A Rotary switches & duly wired) GSELTPS11062

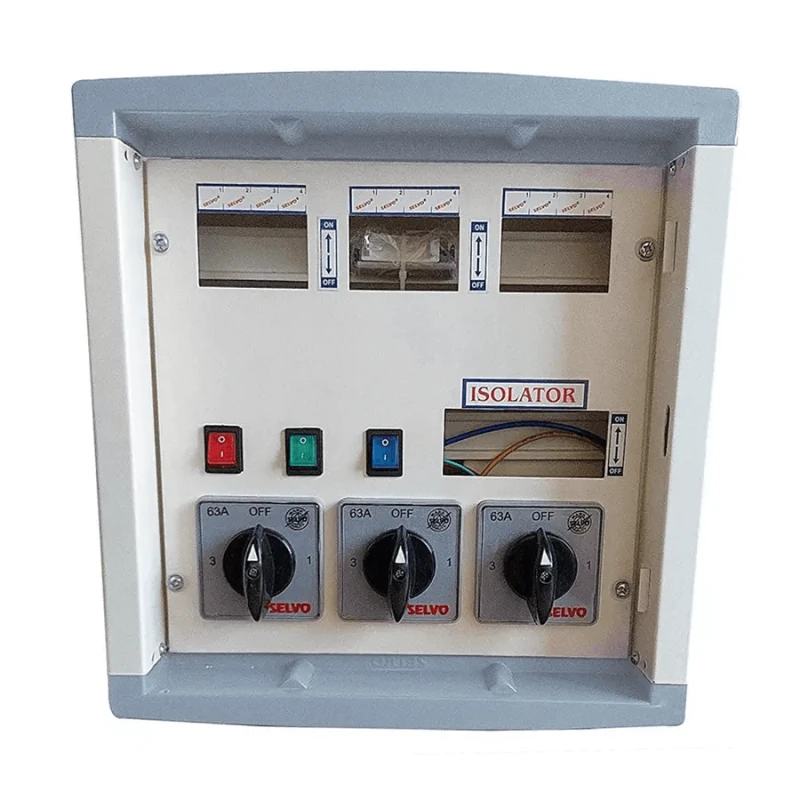

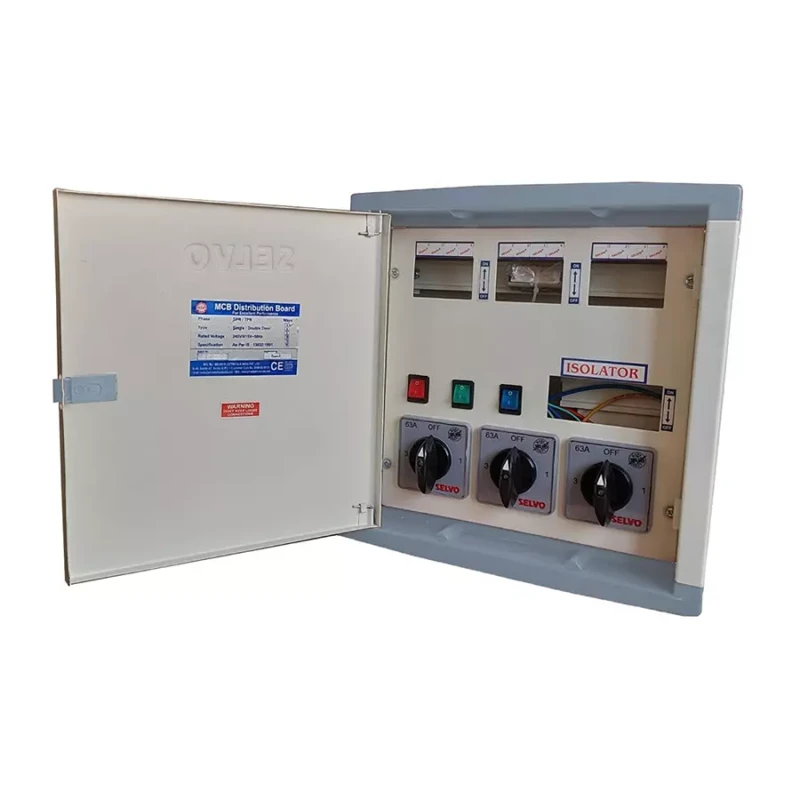

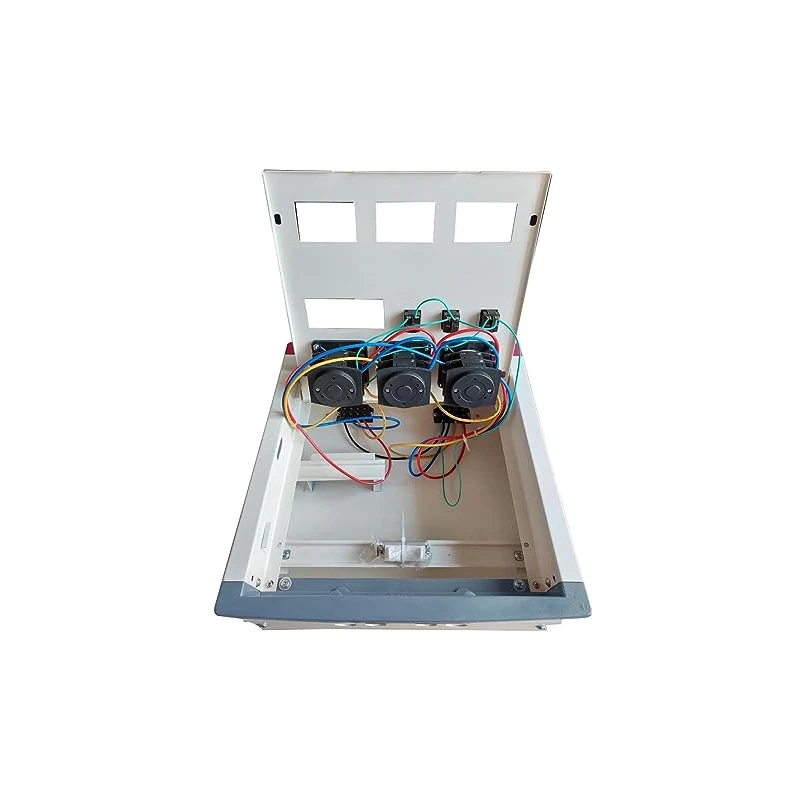

Selvo 4 Ways TPN Phase Selector Distribution Board ( Fitted with 1 Pole 3 Ways 63A Rotary switches & duly wired) GSELTPS11062, SELVO Presents 4 Ways TPN Phase selector distribution board (fitted with 1 pole 3 ways rotary fitted and are duly wired) which is known for its elegant look, superior operating mechanism, and highly durable. Working Principle: The distribution board is fitted with rotary switches and is duly wired, each rotary switch and indicator phase is linked with their corresponding output MCB which are further connected to appliances. Suppose there is a power cut in rotary switch 1 which is linked to the output 1 circuit containing MCBs, the user can rotate the spindle or knob to another phase that has no power cut, so there will be continuity of power supply in the circuit. This process is similar to other remaining rotary switches as well. The incoming and outgoing rotary switches can be connected using connectors fitted inboard to make installation easier for electricians. The incoming wires can be connected to connector 1 fitted on the left side and outgoing wires to load can be connected to connector 2 which is fitted on the right side as shown in the images

• Earthing terminals are provided on both sides of DB and The aesthetically designed facia of DB adds an alluring dimension to the living space
• Smooth and easy to operate door opening and closing with aesthetically designed locking knob and Inbuilt with three 100A busbar with shockproof insulation for each output ,Flexibility of having 4+4 incomer.
