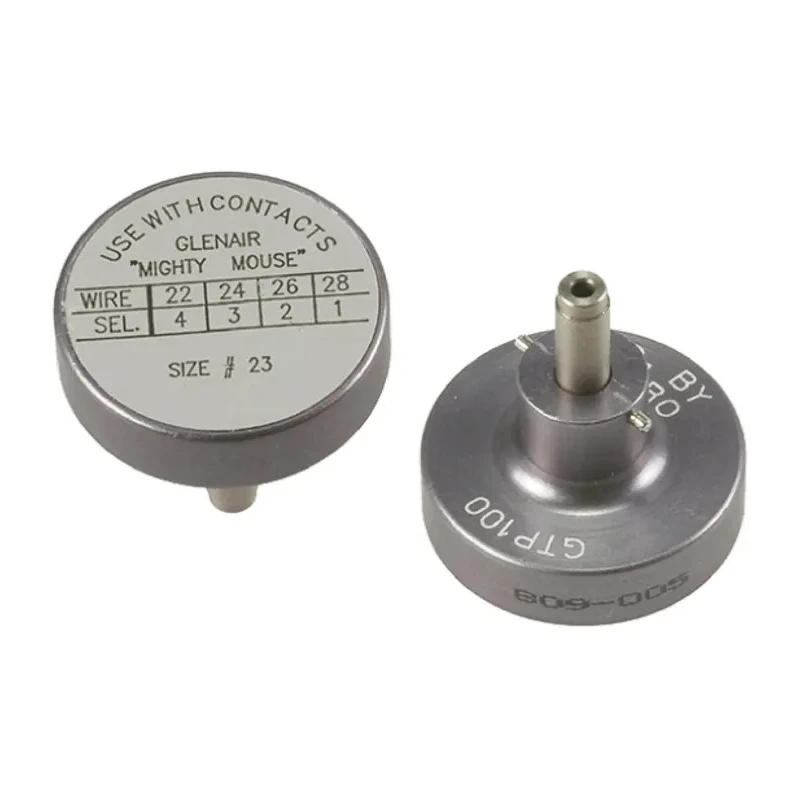

Glenair 79 Micro-Crimp Crimp Tool Positioner, M22520/1-04 Compliant 809-005
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Glenair |
| Model | 809-005 |
| Series | 79 Micro-Crimp |
Key Features
- Compatible with Bayonet-Type Positioners and various power and coaxial contact sizes.
- Supports M22520/1-04, M22520/2-35 and other leading aerospace and military standards.
- Designed for use with 801 Mighty Mouse Series connectors.
- Manufactured to exacting standards ensuring reliable and consistent crimps.
- Constructed for durability in industrial and laboratory environments.
- Allows precise positioning and crimp alignment for high-quality electrical connections.
- Ideal for aerospace, military, and industrial cabling applications.
Product Description
Glenair 809-005 79 Micro-Crimp Crimp Tool Positioner is designed to meet stringent aerospace and military standards including M22520/1-04 and related specifications. This precision tool positioner facilitates accurate crimping of bayonet-type positioners for size 16 and 12 power pins, size 16 coaxial contacts, and other specialized connectors including the 809-093 adapters and 801 Mighty Mouse series.
The product is manufactured in the United States, reflecting Glenair's commitment to high quality and performance. Its compatibility with numerous military-grade standards ensures its suitability for applications requiring precise crimps in harsh or demanding environments. The aluminum construction and detailed engineering promote durability and extended service life.
Used extensively in industrial, aerospace, manufacturing, and laboratory settings, this crimp tool positioner improves the accuracy and repeatability of cable assembly tasks. It supports a range of contacts including shield sleeves and miniature step adjustable tools, enhancing its versatility in various specialized connection scenarios.
Compatible with Bayonet-Type Positioners and various power and coaxial contacts. Compliant with multiple military and aerospace crimping standards. Supports Glenair Series 801 Mighty Mouse Connectors. Engineered for high precision and repeatability in crimping operations.
Durable construction suited for industrial and laboratory use. Enhances quality control in electrical connector assembly processes. Manufactured in the United States to strict quality standards.
This Glenair crimp tool positioner is essential for technicians and engineers working with precision connectors in critical environments such as aerospace and defense industries. Browse related Crimp Tool Positioners and Connectors on EnvMart to find complementary components and tooling solutions.
Explore more products in our Crimp Tool Positioners, Turrets & Locators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is compliant with M22520/1-04 and M22520/2-35, as well as other leading aerospace and military standards.
This model is designed for use with Bayonet-Type Positioners and supports Glenair Series 801 Mighty Mouse connectors.
It accommodates size 16 and 12 power pins, size 16 coaxial contacts, and other specialized connectors including the 809-093 adapters.
It is constructed from aluminum, promoting durability and extended service life in various environments.
It is suitable for industrial, aerospace, manufacturing, and laboratory settings, designed to perform reliably in demanding conditions.
It allows for precise positioning and crimp alignment, improving the accuracy and repeatability of cable assembly tasks.
This product is manufactured in the United States, reflecting strict quality standards.
Yes, it supports a range of contacts including shield sleeves and miniature step adjustable tools, enhancing its versatility.
The model number is 809-005, part of the 79 Micro-Crimp series by Glenair.
It enhances quality control in electrical connector assembly processes, making it essential for work in critical environments like aerospace and defense.
It is ideal for aerospace, military, and industrial cabling applications, facilitating precise crimping in these sectors.
Manufactured to exacting standards, it ensures reliable and consistent crimps, which is crucial for high-quality electrical connections.
