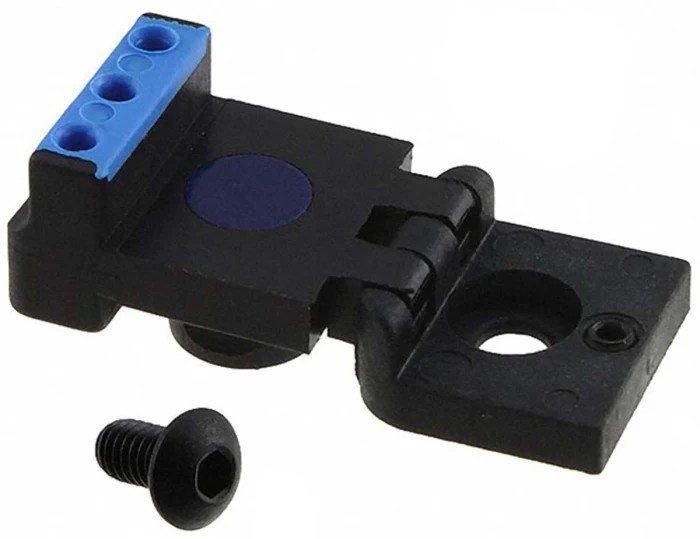

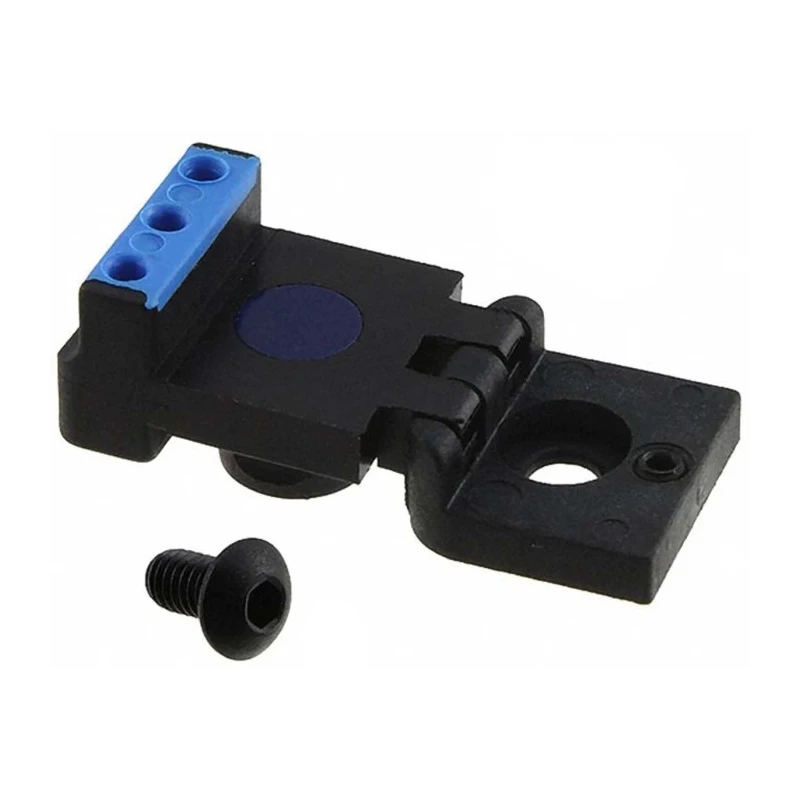

TE Connectivity Mini CERTI-LOK Flap Locator Assembly Crimp Tool Positioner 4-539785-7

TE Connectivity 4-539785-7 Mini CERTI-LOK flap locator assembly is an essential component designed for use with CERTI-CRIMP II hand crimp tools, specifically for AMPLIMITE HD-20 contacts. This locator assembly facilitates precise positioning of crimp contacts and wires within the crimping tool, improving the quality and consistency of electrical connections.

The assembly supports a wire size range from 0.03 to 0.56 mm² (AWG 30 to AWG 20) and features parallel action jaws with fixed and movable dies, ensuring secure crimping.

Key functional elements include a locator and insulation stop that hold the contact firmly between the dies, a ratchet adjuster that controls crimp height, and a ratchet release lever that allows the user to open the tool handles if needed. The ratchet mechanism ensures full crimping by keeping the handles locked until the process is complete.

This Mini CERTI-LOK locator assembly is constructed for durability and precision, making it suitable for demanding industrial, manufacturing, and laboratory applications involving electrical connector assembly and maintenance.

Designed for precise positioning of AMPLIMITE HD-20 contacts during crimping. Supports wire sizes 0.03 to 0.56 mm² (AWG 30 to AWG 20). Equipped with locator and insulation stop features for accurate wire placement. Ratchet-controlled action provides consistent crimp height and quality.

Durable construction enables reliable performance in industrial settings. Facilitates efficient and safe electrical connector assembly. Explore the range of crimp tool positioners and locators at EnvMart for enhanced electrical assembly solutions and improved productivity.
