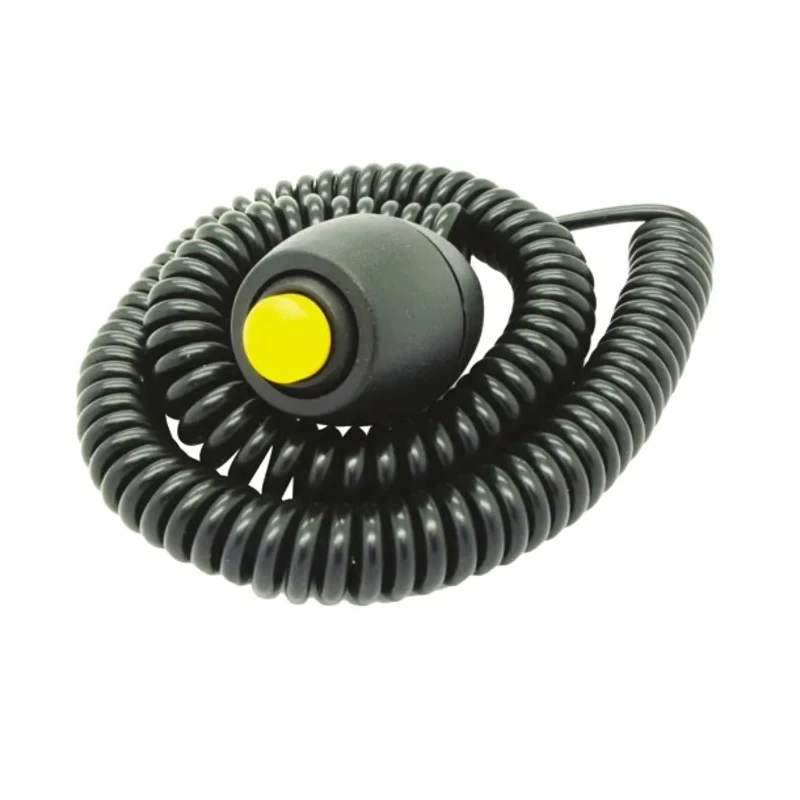

APEM SPST Momentary Pendant Switch 400 mA, IP67 Rated, 500 mm Lead Length ISR3SAD500107

Free Delivery in India | Lowest Global Shipping Charges

APEM SPST Momentary Pendant Switch 400 mA, IP67 Rated, 500 mm Lead Length ISR3SAD500107

Name: APEM SPST Momentary Pendant Switch 400 mA, IP67 Rated, 500 mm Lead Length ISR3SAD500107
Brand: APEM
SKU: 345293
Price: 15299.5 INR
Availability: InStock



Category Pendant Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Model	ISR3SAD500107
IP Rating	IP67
Series	IS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Number of Switches	1
Minimum Operating Temperature	-40°C
Terminal type	3.5 mm Stereo Plug
Lead Length	500mm
Switch Operation	Momentary
Contact DC Voltage	48V dc
Contact AC Voltage	32V ac
Contact Current	400mA

Key Features

Single pole single throw (SPST) contact configuration.
Momentary switch operation suitable for momentary commands.
Lead length of 500 mm with relaxed coil extending up to 2 meters under tension.
IP67 rating providing high ingress protection for harsh environments.
Contact current rating of 400 mA at 32 VAC and 100 mA at 50 VDC resistive load.
Terminals equipped with 3.5 mm stereo plug for easy connection.
Operating temperature range from -40°C to 85°C.
Constructed for reliable use with minimum electrical life of 500,000 cycles.

Product Description

APEM ISR3SAD500107 Momentary Pendant Switch 400 mA is a compact, rugged pendant switch designed for reliable electrical and automation control applications. It features a single pole single throw (SPST) contact configuration with momentary operation, making it ideal for temporary or push-to-activate commands.

This pendant switch includes a coiled cord with a 500 mm relaxed lead length that can extend up to 2 meters under light tension, providing flexibility in installation and operation. The device boasts an IP67 ingress protection rating, ensuring excellent sealing against dust and water ingress, suitable for demanding industrial and outdoor environments.

The switch contacts support a maximum resistive current of 400 mA at 32 VAC and 100 mA at 50 VDC, with normally open contacts. Terminals utilize a 3.5 mm stereo plug for secure and fast electrical connection. The operating temperature range of -40°C to 85°C ensures performance stability under varying environmental conditions.

Designed for durability, the switch offers a minimum electrical life of 500,000 cycles, making it suitable for heavy-duty use cases such as push-to-talk systems, emergency call systems (e.g., nurse call), light control, activation controls like snap-shot functionality, and home automation systems.

Manufactured in France, this pendant switch adheres to high-quality standards and integrates seamlessly into pendant control stations. It serves diverse industrial, commercial, and automation system applications requiring precise control and robust switch performance.

Single pole single throw (SPST) contact configuration. Momentary switch operation for transient commands. 500 mm lead length coiled cord with expansion to 2 meters under tension. IP67 rated for dust and water resistance.

Contacts rated 400 mA @ 32 VAC and 100 mA @ 50 VDC resistive load. 3.5 mm stereo plug terminal type. Operating temperature range from -40°C to 85°C. Minimum electrical life of 500,000 cycles ensures durability. Manufactured in France to meet quality standards.

Explore the extensive range of Pendant Switches and electrical automation components available in the EnvMart catalog for optimized industrial and laboratory control solutions.
