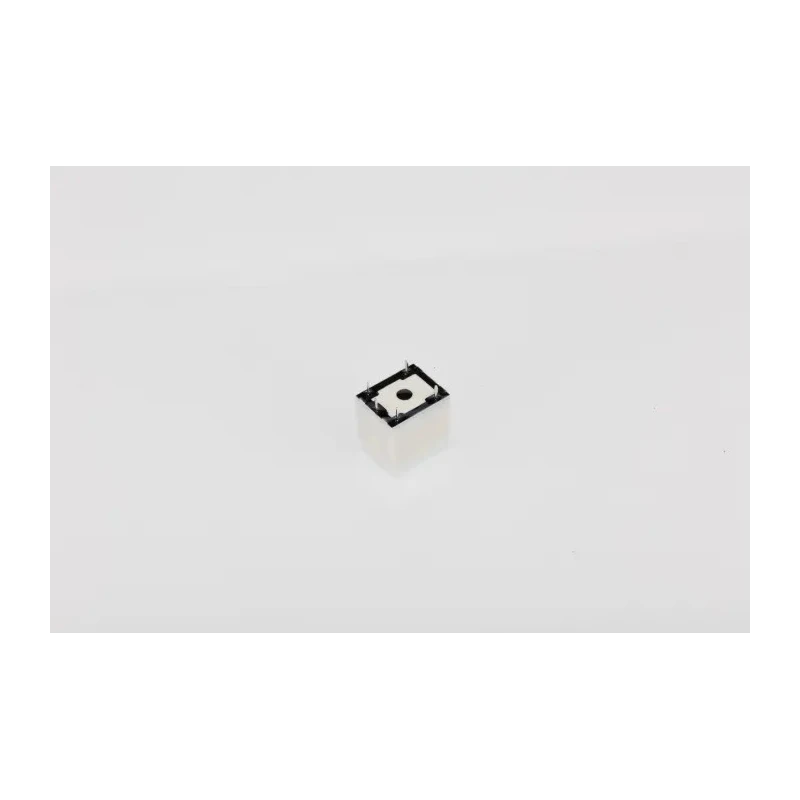

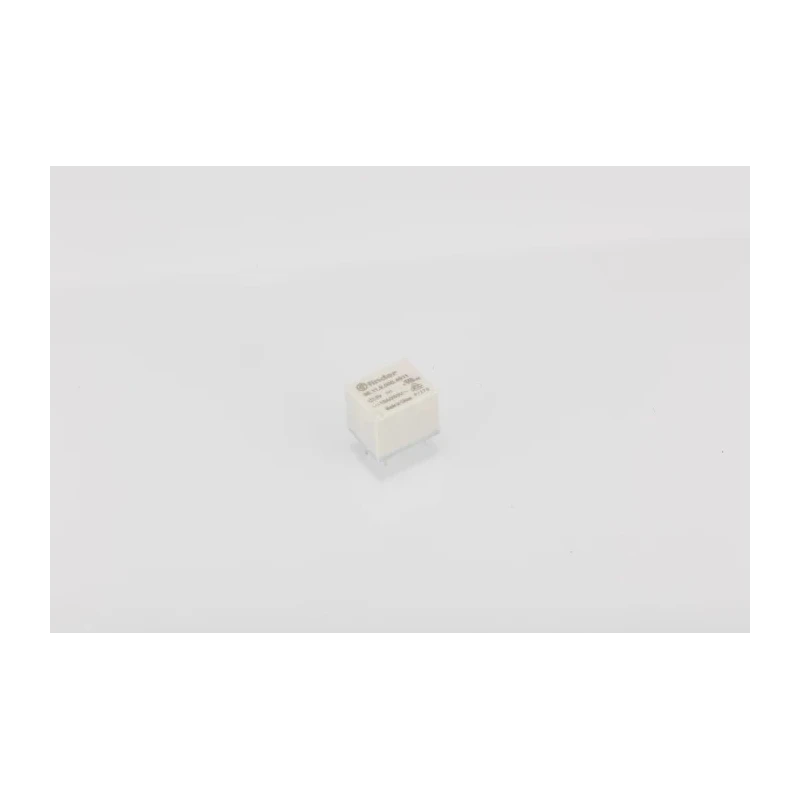

Finder Power Relay PCB Mount, 5V DC Coil, 10A Switching Current, SPDT 36.11.9.005.4011
Specifications
| Country of Origin | China |
|---|---|
| Brand | Finder |
| Height | 15mm |
| Length | 19mm |
| Width | 15.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 36 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Through Hole |
| Standards/Approvals | CE, EAC |
| Coil Resistance | 70Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 48V ac |
| Coil Power | 360mW |
Key Features
- Compact relay suitable for mounting on printed circuit boards.
- Supports high switching currents up to 10 amperes.
- SPDT configuration facilitates versatile circuit operations.
- Operates reliably between temperatures of -40 °C and 85 °C.
- Constructed with silver alloy contacts for enhanced conductivity and durability.
- Coil resistance rated at 70 ohms for efficient operation at 5V DC.
- Designed to handle switching voltages up to 48V AC and DC.
- Through-hole terminal type ensures secure PCB connections.
Product Description
Finder 36.11.9.005.4011 is a power relay designed for PCB mounting featuring a 5V DC coil voltage and a maximum switching current of 10A with SPDT contact configuration. Engineered for industrial automation, control circuits, and high voltage switching applications, this compact relay operates reliably in a wide temperature range from -40 °C to +85 °C.
This relay incorporates silver alloy contacts that provide superior conductivity and durability, enhancing operational longevity. Its coil resistance is 70 ohms, optimized for efficient switching at the specified voltage. The relay supports switching voltages of up to 48V AC and DC, making it suitable for diverse applications including machinery control, consumer electronics, and automation systems.
The PCB mount design with through-hole terminals ensures easy integration into circuit boards, while its compact size (19mm x 15.2mm x 15mm) allows installation in confined spaces without sacrificing performance. Certified to CE and EAC standards, it guarantees quality and compliance with industry safety norms.
With a dielectric strength of 3 kV, this power relay is built to handle high voltage demands safely and effectively. Its operational specification supports prolonged use with a mechanical life of 10 million cycles and an electrical life of 50,000 operations at rated load, ensuring reliability in industrial environments.
Compact PCB-mount power relay with SPDT configuration. 5V DC coil voltage and 10A switching current capability. Operates across a temperature range of -40 °C to +85 °C. Silver alloy contacts for superior conductivity and longevity.
Through-hole terminal type for secure PCB installation. Supports switching voltages up to 48V AC/DC. Certified with CE and EAC standards for safety and quality. Robust dielectric strength of 3 kV for enhanced insulation.
Compact dimensions suitable for confined spaces. Long mechanical and electrical lifespan for dependable performance.
This Finder power relay is ideal for use in industrial automation, machinery control circuits, and consumer electronics requiring reliable high-voltage switching. It offers a precise balance of robustness and compactness facilitating diverse electrical and control applications. Explore the extensive range of reliable Power Relays in our Electronics & Electricals category at EnvMart for your specific project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 10A.
This model operates with a coil voltage of 5V DC.
The dimensions of this relay are 19mm in length, 15.2mm in width, and 15mm in height.
It operates reliably within a temperature range of -40 °C to +85 °C.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The dielectric strength of this relay is rated at 3 kV.
The contacts are constructed from silver alloy, which enhances conductivity and durability.
It uses a through-hole terminal type for secure PCB connections.
This relay is certified to CE and EAC standards, ensuring compliance with industry safety norms.
The coil resistance is rated at 70 ohms, which allows for efficient operation at 5V DC.
It can handle switching voltages of up to 48V AC and DC.
This model is suitable for industrial automation, control circuits, and high voltage switching applications.
