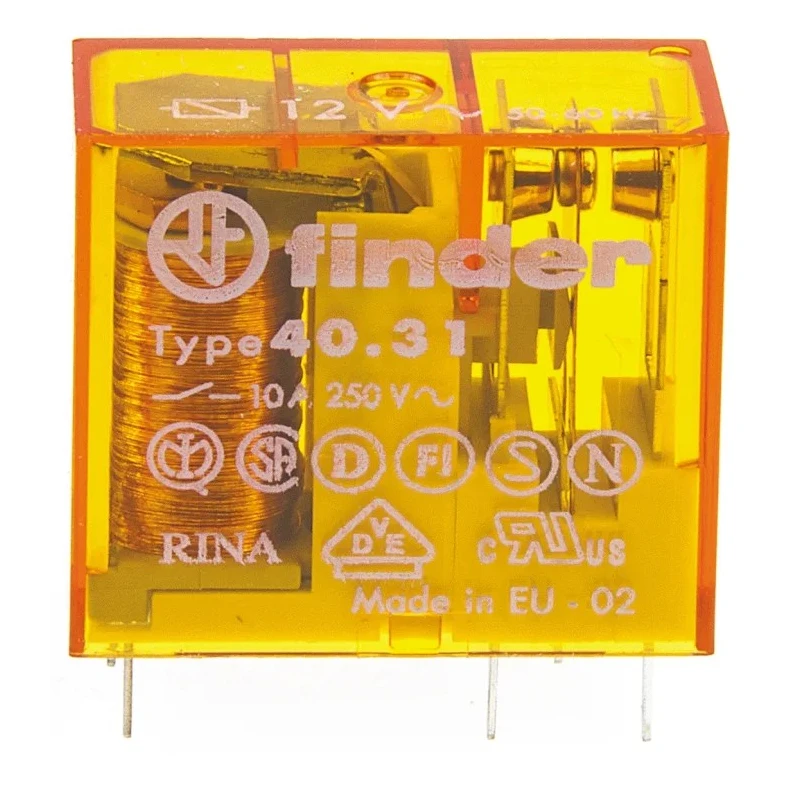

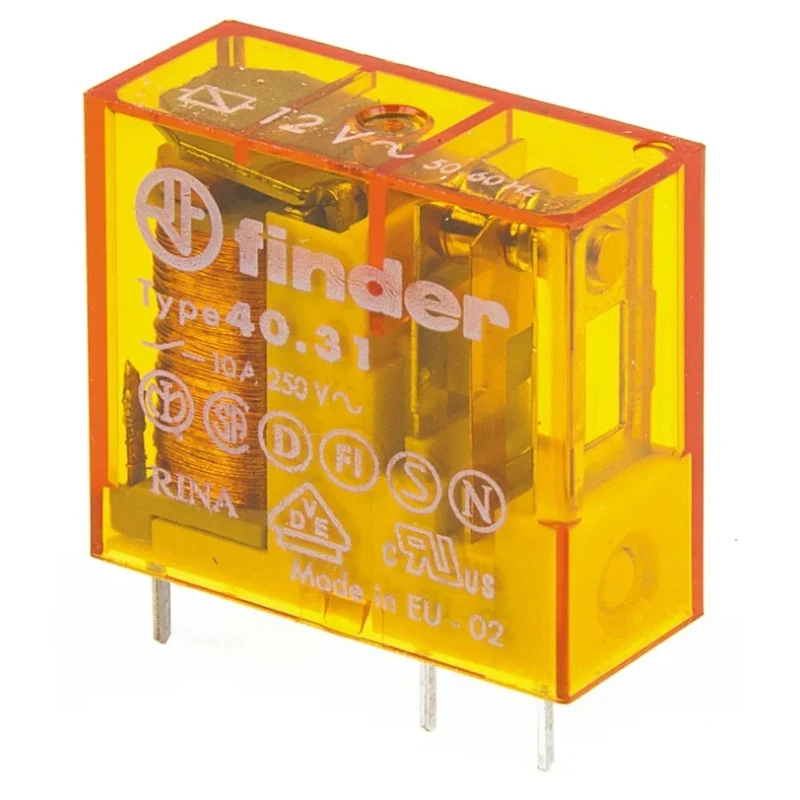

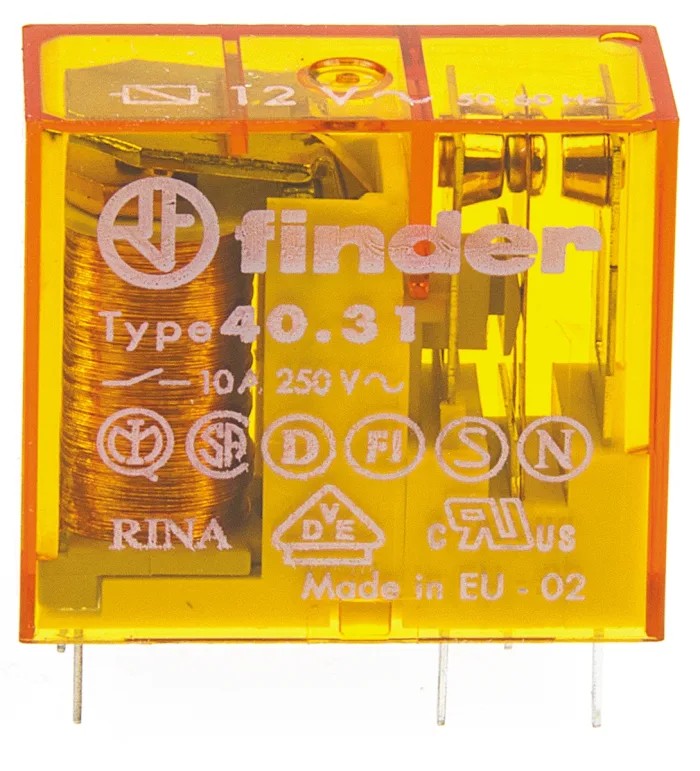

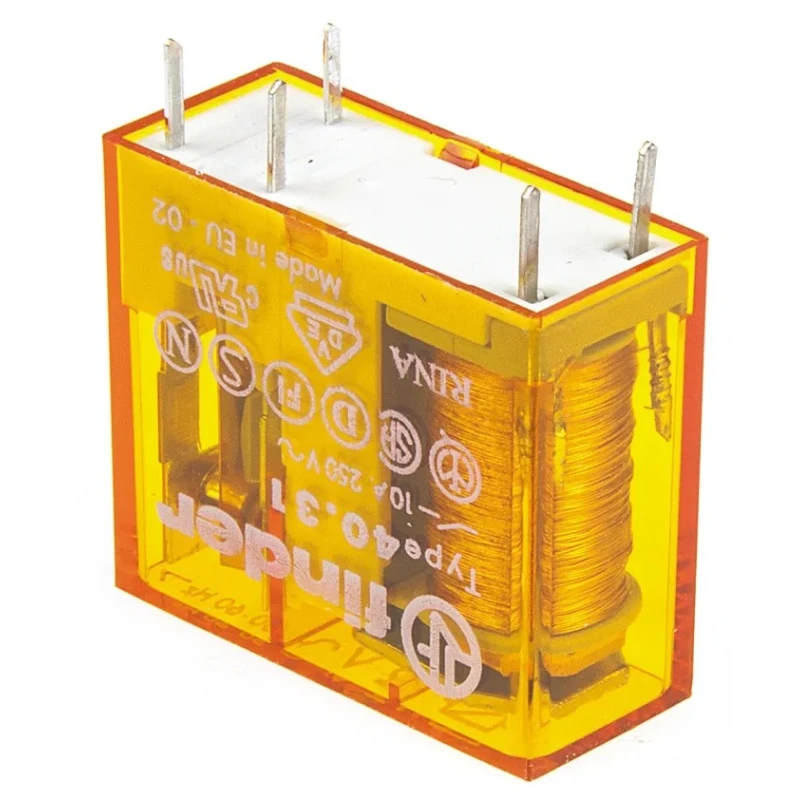

Finder 40 Series Power Relay 12V AC Coil Voltage, 10A Switching Current, SPDT, PCB Mount 40.31.8.012.0000
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 25mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 40 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | EAC, CCC, VDE, UL, CSA |
| Coil Resistance | 80Ω |
| Coil Voltage | 12V ac |
| Switching DC Voltage | 12V |
| Switching AC Voltage | 400V ac |
| Coil Power | 1.2W |
Key Features
- Compact dimensions allow easy integration into printed circuit boards.
- SPDT contact configuration supports versatile switching tasks.
- Coil resistance of 80 Ω ensures efficient power consumption.
- High isolation voltage of 6 kV between coil and contacts enhances operational safety.
- Rated to switch currents up to 10 amps for demanding applications.
- Operating temperature range from -40 °C to +85 °C suits diverse environments.
- Endurance for up to 10 million mechanical switching cycles improves reliability.
- Silver alloy contacts provide durable and high-performance electrical connections.
Product Description
The Finder 40 Series Power Relay, model 40.31.8.012.0000, features a 12V AC coil voltage and a single pole double throw (SPDT) contact configuration optimized for PCB mounting with dimensions of 29mm length, 12.4mm width, and 25mm height. This power relay is engineered for reliable switching in electrical and electronic devices where compact size and efficient performance are essential.
With a coil resistance of 80 ohms, it achieves low coil power consumption at 1.2 watts, making it energy efficient in continuous operation. The relay can switch currents up to 10 amperes with a maximum switching AC voltage of 400V and DC voltage up to 12V, suitable for a variety of industrial and commercial applications.
Notably, it offers high electrical isolation of 6 kV between coil and contacts to ensure operator safety and minimize interference. Operational in harsh temperature conditions ranging from -40°C to +85°C, this relay is suitable for demanding environments including control panels, automation systems, vending machines, toys, and medical equipment.
The contact material is a silver alloy, ensuring a durable connection with high conductivity and longevity. Additionally, the product adheres to several international standards such as EAC, CCC, VDE, UL, and CSA, reflecting rigorous quality assurance and reliability.
Compact design for easy PCB integration. SPDT contact configuration for versatile switching. Efficient coil operation with 80Ω resistance and 1.2W power consumption. High isolation voltage of 6 kV between coil and contacts.
Capable of switching currents up to 10 amps and voltages up to 400V AC. Wide operating temperature range from -40°C to +85°C. Mechanical durability rated for 10 million cycles. Silver alloy contact material for performance and durability.
Compliance with EAC, CCC, VDE, UL, CSA certifications.
This power relay is an essential component for industrial, electronics, automation, and medical equipment applications. Explore more power relay options and technical components at EnvMart.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12V AC.
This model can handle a maximum switching current of 10A.
The dimensions of this relay are 29mm in length, 12.4mm in width, and 25mm in height.
The contact configuration of this relay is SPDT (Single Pole Double Throw).
The coil resistance of this relay is 80Ω.
This unit can switch a maximum AC voltage of 400V and a DC voltage of 12V.
The operational temperature range for this power relay is from -40°C to +85°C.
The endurance rating for mechanical switching cycles is up to 10 million cycles.
The contacts of this relay are made of silver alloy, providing high conductivity and durability.
This relay complies with several certifications including EAC, CCC, VDE, UL, and CSA.
This relay is designed for PCB mounting.
The coil power consumption of this relay is 1.2W.
