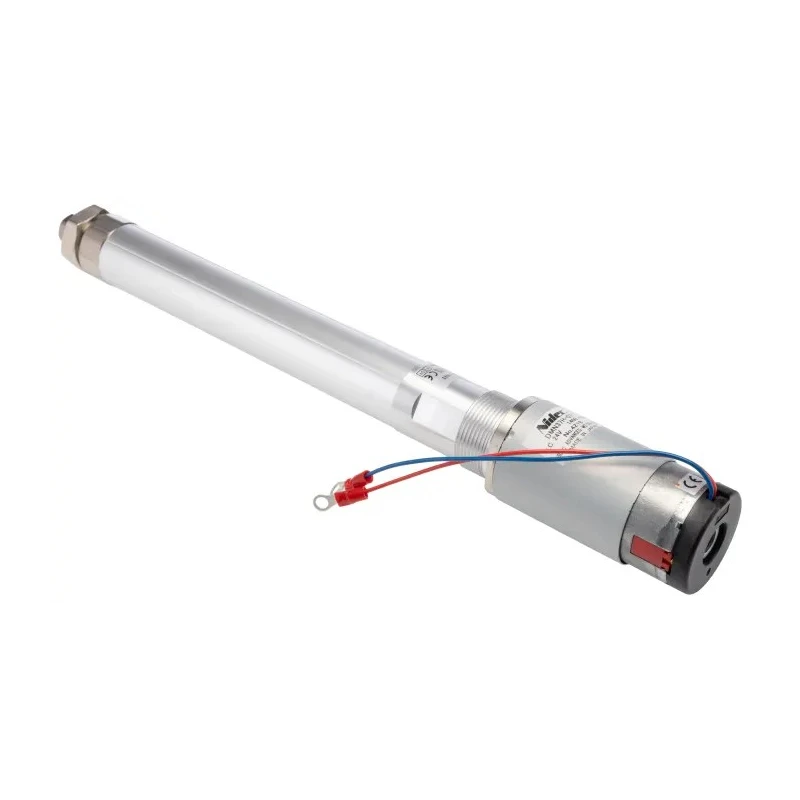

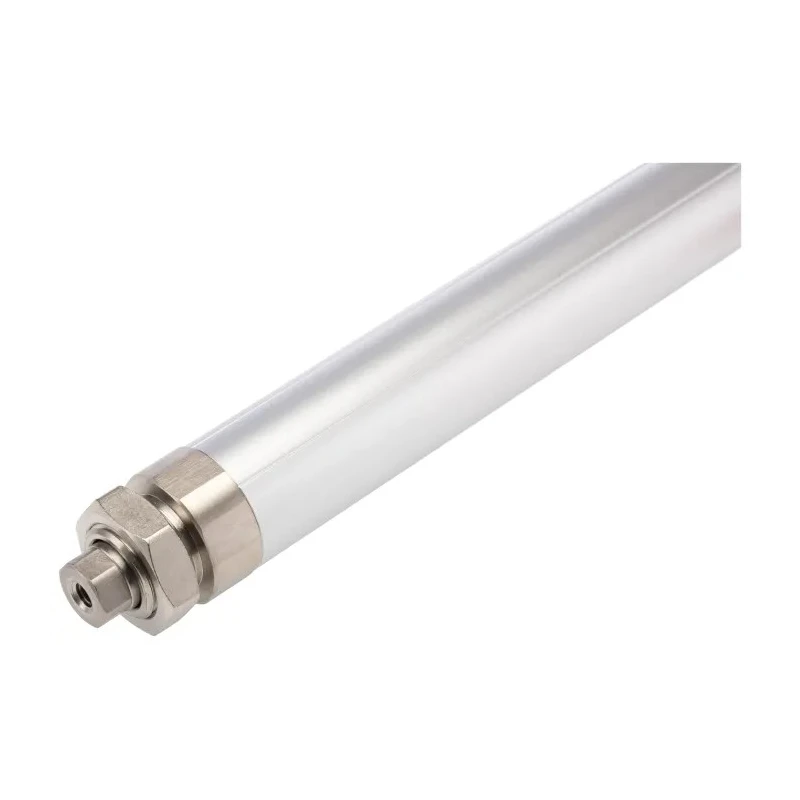

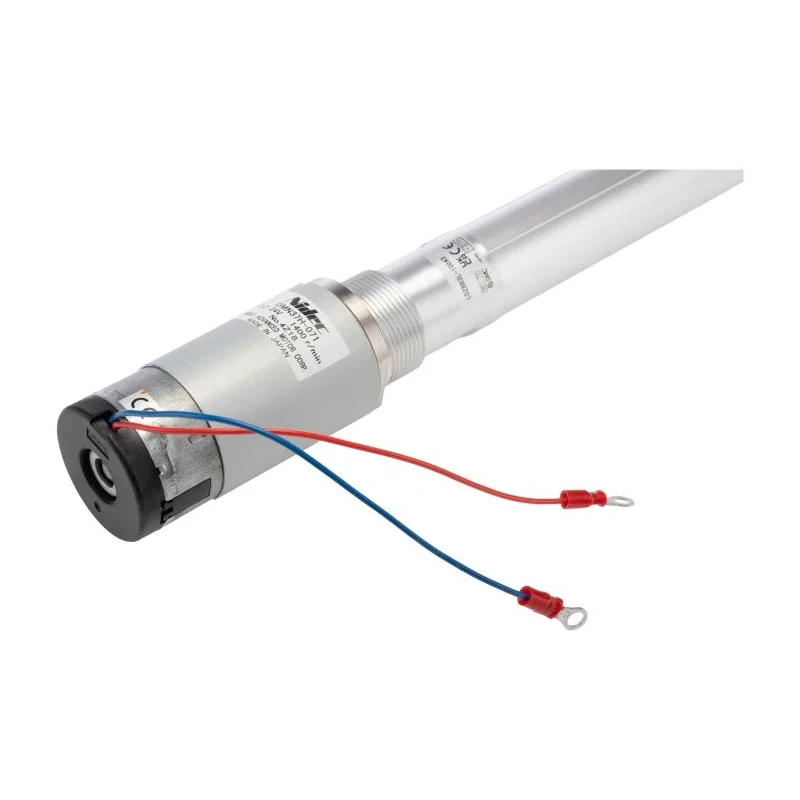

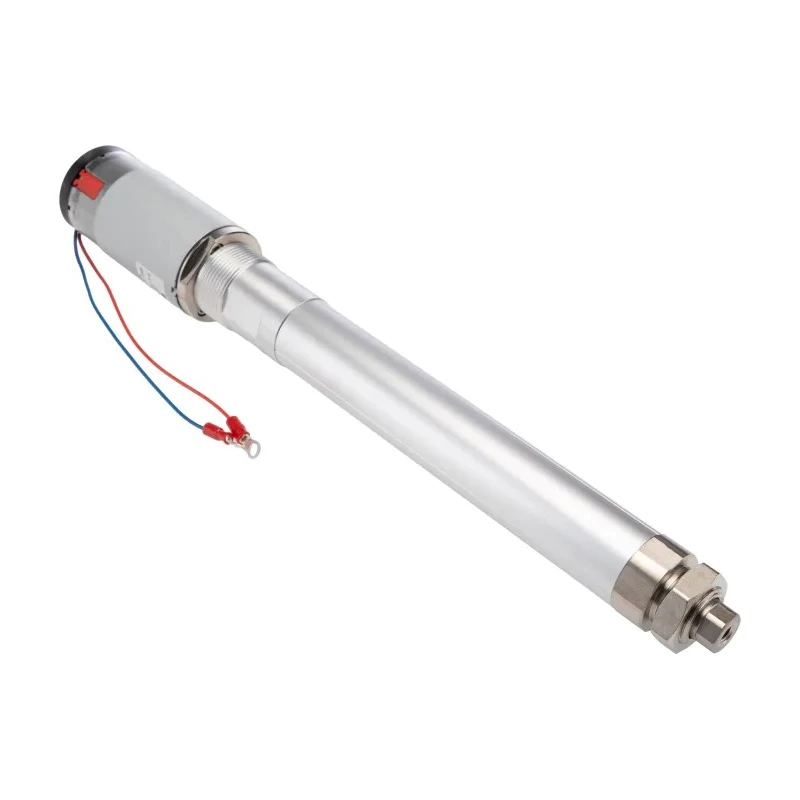

SMC Electrical Linear Actuator 100 mm Stroke 80N Maximum Load 24V DC Motor LDZBB3L-100A3

Free Delivery in India | Lowest Global Shipping Charges

SMC Electrical Linear Actuator 100 mm Stroke 80N Maximum Load 24V DC Motor LDZBB3L-100A3



Category Electrical Linear Actuator Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Model	LDZBB3L-100A3
IP Rating	IP67
Gross Weight	1.72kg
Maximum Load	80N
Maximum Operating Temperature	40°C
Minimum Operating Temperature	5°C
Stroke Length	100mm
Maximum Force	196N
Spindle Type	Lead Screw
Standards/Approvals	JIS C 0920, IP67, JIS Class 2, IEC529
Motor Technology	DC Motor
SMC Electrical Linear Actuator 50 mm 80N 24V 33mm/sBrand	SMC

Key Features

Equipped with a DC motor technology for reliable linear motion control.
Maximum force capability of 196N ensuring strong actuation.
IP67 rated for dust tight and water immersion protection.
Operates efficiently between 5°C and 40°C ambient temperatures.
Lead screw spindle for precise and smooth extension and retraction.
Compact and robust design with 1.72 kg weight suitable for various industrial settings.
Compliant with standards JIS C 0920, IP67, JIS Class 2, and IEC529.
Manufactured in Japan ensuring high-quality standards.

Product Description

SMC LDZBB3L-100A3 Electrical Linear Actuator features a 100 mm stroke length with a maximum load capacity of 80N and operates on 24V DC power. This actuator utilizes a lead screw spindle design and is driven by a DC motor technology, providing precise and efficient linear motion control suitable for multiple industrial applications.

Designed to offer reliable performance in demanding environments, it is rated IP67, ensuring complete protection against dust and water ingress. The actuator functions effectively within a temperature range of 5°C to 40°C, making it suitable for a wide variety of working conditions.

With a maximum force of 196N, this actuator can handle substantial loads and is comparable in thrust to pneumatic cylinders of similar size. It offers simple extension and retraction motion controlled via ON/OFF signals, making it versatile for mechanical automation and fluid power applications.

The compact unit weighs only 1.72 kg, facilitating easy integration without adding excessive weight to assemblies. It complies with international standards including JIS C 0920, JIS Class 2, and IEC529, guaranteeing adherence to quality and safety benchmarks.

This electrical linear actuator is ideal for industrial machinery, laboratory automation, HVAC systems, manufacturing equipment, and other environments where pneumatic air supply is unavailable or undesirable. Its robustness and precision make it a preferred choice in industrial power transmission applications.

Equipped with a DC motor technology for reliable linear motion control. Maximum force capability of 196N ensuring strong actuation. IP67 rated for dust tight and water immersion protection. Operates efficiently between 5°C and 40°C ambient temperatures.

Lead screw spindle for precise and smooth extension and retraction. Compact and robust design with 1.72 kg weight suitable for various industrial settings. Compliant with standards JIS C 0920, IP67, JIS Class 2, and IEC529.

Manufactured in Japan ensuring high-quality standards. Explore extensive industrial tools and components like this in the Electrical Linear Actuator category at EnvMart for reliable and precision-engineered solutions.
