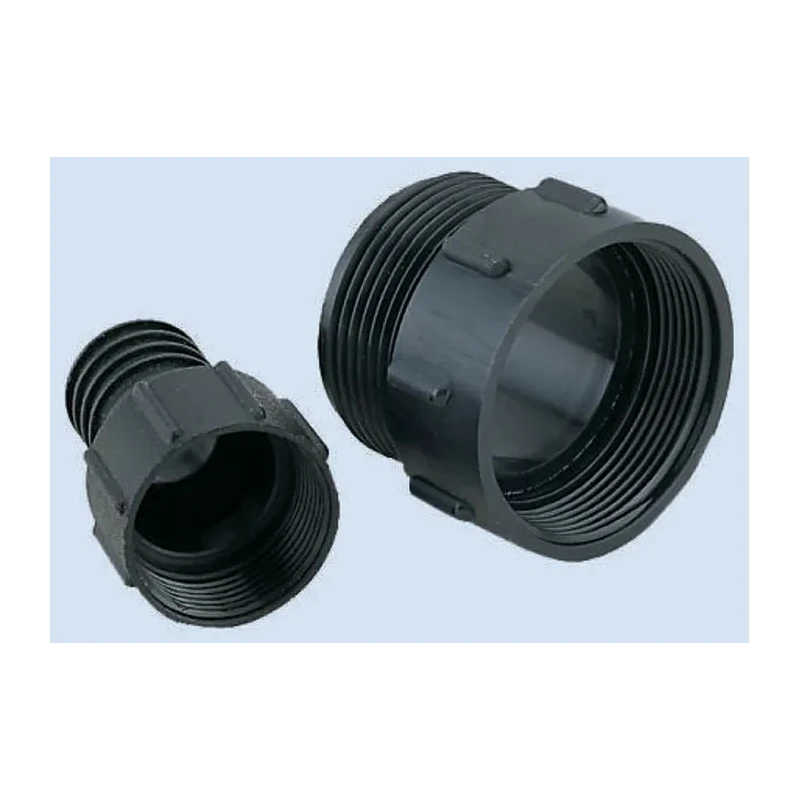

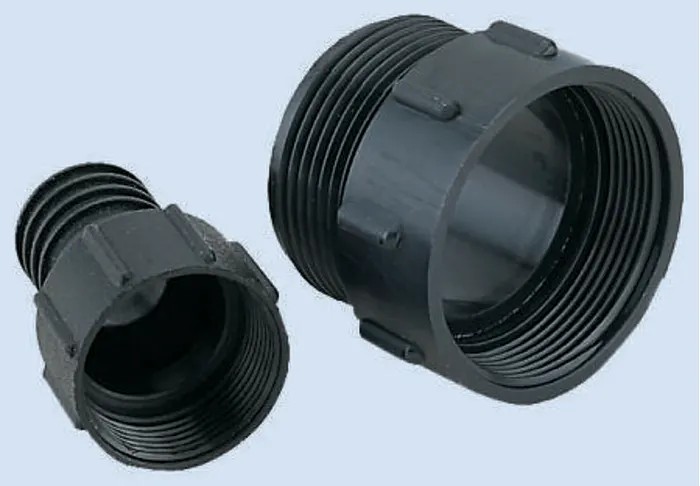

ITT Cannon Heat Shrink Boot Trident Connector Neptune Series Black Plastic TNA16CA02-18L / 192991-0015

ITT Cannon TNA16CA02-18L / 192991-0015 is a heat shrink boot trident connector manufactured from high-quality black plastic, designed to provide a secure and reliable connection for cable joints and sleeve applications. This connector forms part of the Neptune series, based on the Trident Ringlok system that integrates power and signal contacts, commonly used in automotive, marine, and process control industries.

The rear housing is available in heat-shrink or threaded versions suitable for plastic flexible conduits. It can be fitted as a replacement for the seal securing nut on matching plugs and sockets. The Neptune connectors feature a strong bayonet coupling system with both standard and reversed pin/socket configurations for versatile use.

To maintain the IP67 ingress protection rating, the connector includes a rubber seal at the rear that is pierced upon insertion of contacts. This seal is held in place with a supplied screw ring, which may be detached and replaced by backshell accessories of appropriate size. The connector accommodates wire insulation diameters ranging from 1.7 to 2.7 mm for signal wires and 2.7 to 4.0 mm for power wires. The number of contacts may be specified as power/signal, such as 2//13 contacts, catering to various connection requirements.

This product complies with the UL 94 V-0 standard ensuring flame resistance and safety compliance. Adhesive backing is not included, reflecting its suitability for robust industrial applications requiring mechanical coupling and environmental sealing. The connector's black plastic construction offers durability and long-term resistance to environmental factors.

Typical applications include industrial automation, marine electrical systems, automotive wiring harnesses, and process control equipment where reliable electrical connections are critical. The heat shrink boot design enhances cable insulation and protection.

Constructed from durable black plastic material. Neptune series combining power and signal contacts. Strong bayonet coupling system for secure connections. Rear housing available in heat-shrink or threaded forms. Rubber seal with screw ring maintains IP67 rating.

Wire insulation diameter compatibility from 1.7 to 4.0 mm. Complies with UL 94 V-0 flammability standards. Suitable for automotive, marine, and industrial process control uses. For additional quality connectors and accessories, explore the Connector Accessories category at EnvMart.
