| Country of Origin | Taiwan |
|---|---|
| Voltage | 50V dc |
| Brand | Yageo |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | CC0603JRNPO9BN100 |
| Packaging | Paper/PE Tape Reel |
| Width | 0.8mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | Standard |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 10pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0603 |
| Dielectric | C0G |
| Suppression Class | Class I |

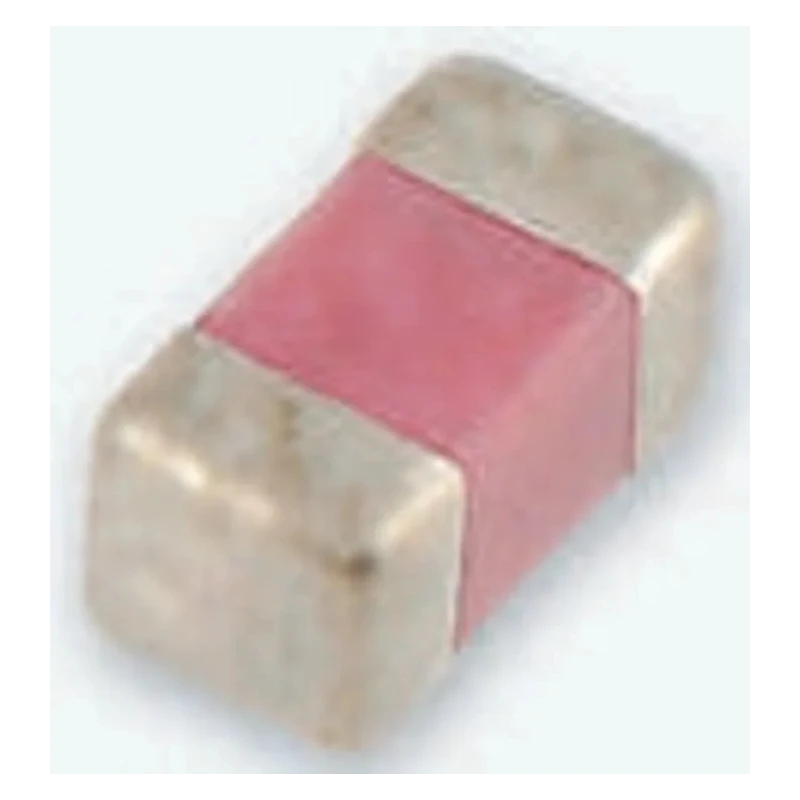

Yageo CC0603JRNPO9BN100 is a 10 pF multilayer ceramic capacitor designed for surface mount applications with a 50V DC voltage rating and ±5% tolerance, housed in a 0603 package case.
Constructed using a stacked design with C0G dielectric, this capacitor delivers high stability and low dielectric losses, making it suitable for precision electronic circuits. It operates reliably in temperatures ranging from -55°C to 125°C, conforming to IEC 60384-21/22 and IEC 60384-1 standards, which affirm its quality and performance benchmarks.
The compact size of 1.6 mm length by 0.8 mm width and height supports high-density PCB designs and efficient surface mounting. Packaged in reels of 4000 units on paper/PE tape reels, it is optimized for automated manufacturing processes.
This capacitor finds applications in consumer electronics such as television receivers, tuners, cameras, and other devices requiring stable capacitance at various frequencies. This multilayer ceramic capacitor features a stacked construction for enhanced reliability.
It has a C0G dielectric providing excellent stability and low loss. Operating temperature range from -55°C to 125°C ensures performance under varied conditions. Package dimensions are 1.6 mm length, 0.8 mm width, and 0.8 mm height suitable for dense PCB layouts.
Compliant with IEC 60384-21/22 and IEC 60384-1 standards for quality assurance. Termination type is surface mount, facilitating automated PCB assembly. Sold in reels of 4000 pieces with paper/PE tape reel packaging for handling efficiency.
Suppression class is Class I, ideal for general purpose applications. Manufactured in Taiwan, Province Of China ensuring consistent build quality. Widely used in televisions, tuners, cameras, and other electronic equipment.
