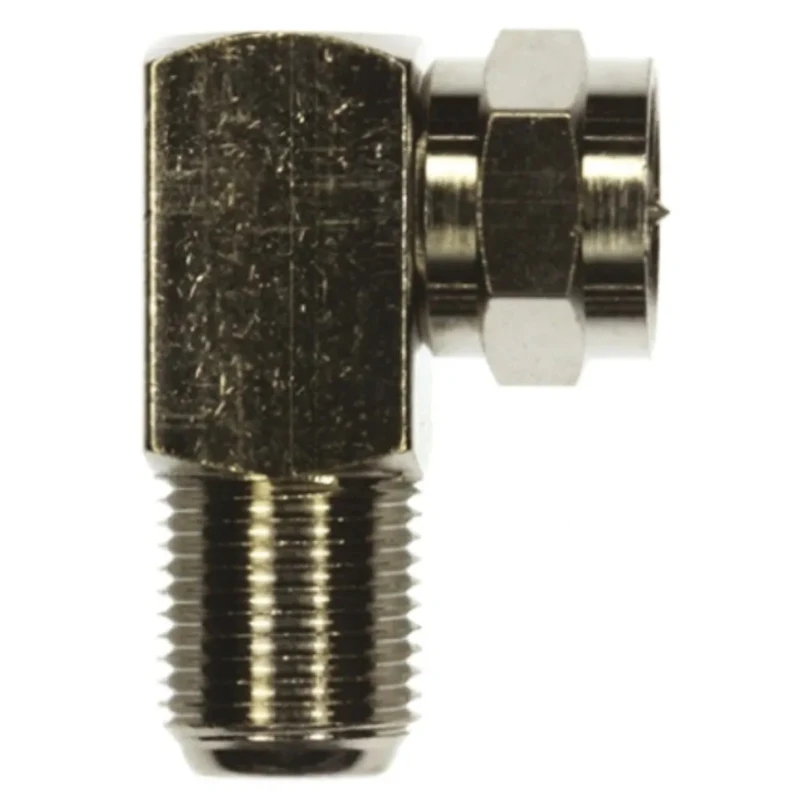

TE Connectivity Right Angle RF Adapter Coaxial Socket to Coaxial Socket Panel Mount 1GHz Nickel Plated 18mm 5-1634537-1

TE Connectivity 5-1634537-1 Right Angle RF Adapter is a high-quality RF adapter designed to convert coaxial connections from Type F male to female in a right angle configuration, suitable for panel mounting applications. It supports operating frequencies up to 1GHz, making it suitable for TV and satellite coaxial systems requiring dependable signal integrity.

The adapter features a nickel-plated brass body with brass contacts, ensuring excellent conductivity and resistance to corrosion. The coupling style is a bayonet type, providing secure mechanical connection and ease of installation in confined spaces thanks to its compact 18mm length.

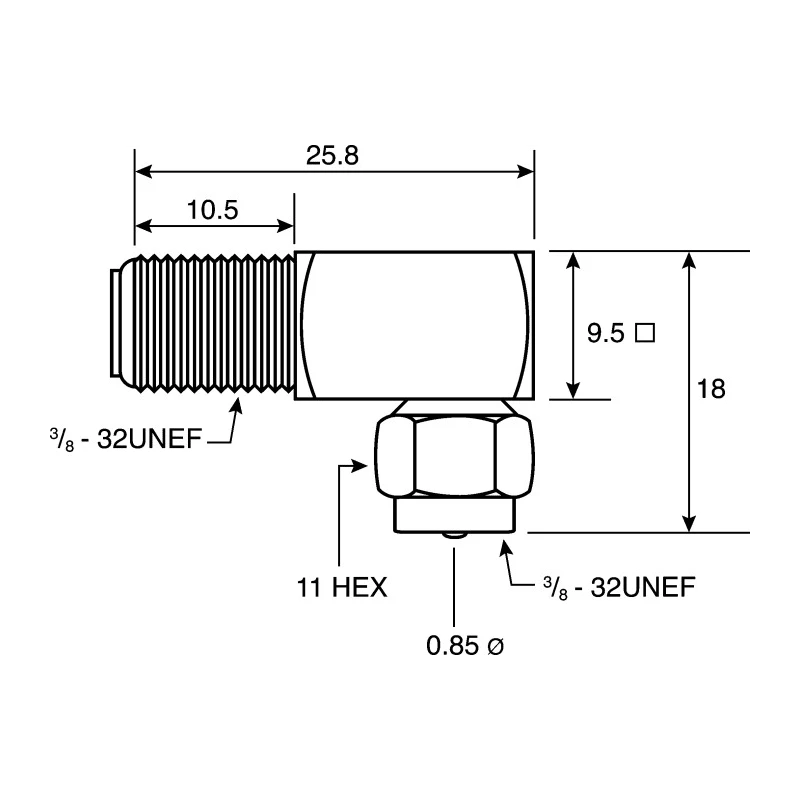

Its construction complies with standard F-type interface specifications, making it fully intermateable with standard TV and satellite connectors using 3/8-32 UNEF internal thread and 7/16 A/F hex coupling nuts. The right angle design is particularly useful for installations where space is constrained or cable routing demands a change in direction.

Key materials include a delrin dielectric insulator and nickel plating on both body and contacts to enhance robustness and longevity in typical industrial, commercial, and residential electronic component applications.

This adapter is ideal for use in telecommunications, broadcast, and general RF signal environments requiring panel mounting of coaxial cable connections, including industrial and laboratory electronic setups. The compact and durable design ensures reliable performance under typical operating conditions.

The adapter converts from Type F male connector to Type F female connector and vice versa. It features a right angle orientation ideal for tight installations. Constructed with nickel-plated brass body and brass contacts for durability.

Coupling style is bayonet type ensuring secure connections. Operating frequency supports up to 1GHz for reliable signal transmission. Designed with normal polarity and compatible with coaxial cable types. The body and contact plating are nickel, enhancing corrosion resistance.
