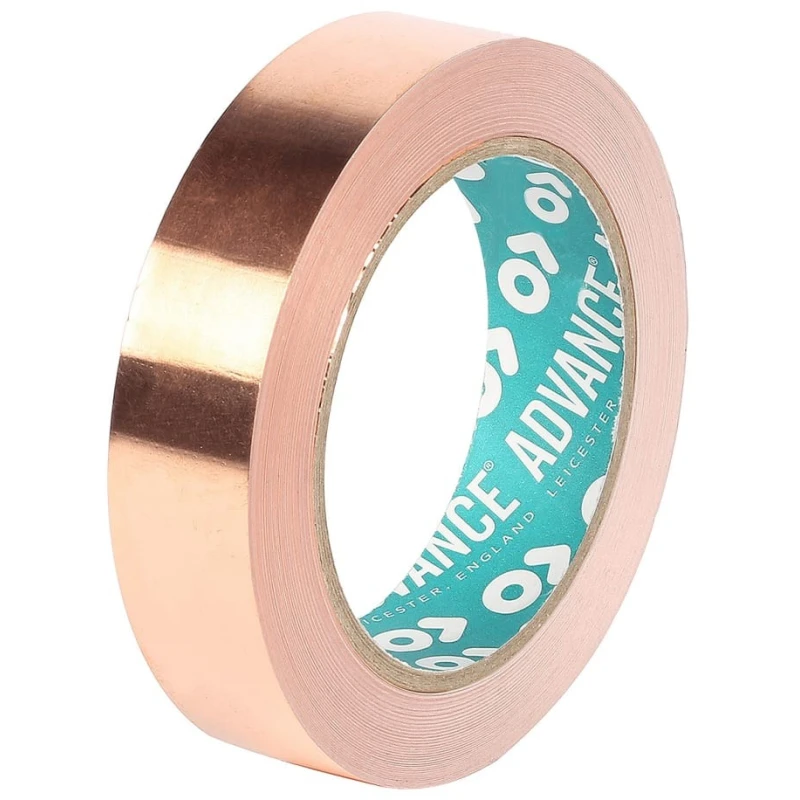

Advance Tapes Non-Conductive Metallic Copper Foil Tape 25mm x 33m 155°C Max AT525

Advance Tapes AT525 Non-Conductive Metallic Tape is a high-quality copper foil tape designed for industrial and commercial use. It features a 0.07mm thick copper foil backing coated with a non-conductive thermosetting acrylic adhesive, supplied on a removable silicon liner for convenient application.

With dimensions of 25mm width and 33 meters length, this metallic tape offers strong adhesion strength of 4.5N/cm and a tensile strength of 40N/cm. It operates effectively across a wide temperature range from -20°C to 155°C, making it suitable for demanding environments.

The tape provides excellent EMI/RFI shielding effectiveness while being easily solderable, an important feature for electrical and electronic assembly. It complies with EN legislation, ensuring safety and reliability, and is manufactured in Ireland.

Its applications include heating and ventilation systems, the construction industry, manufacturing processes, and duct sealing tasks. The tape's robust adhesion and thermal properties make it a reliable choice for high-performance requirements.

Important usage note: To prevent tarnishing, avoid touching the tape with bare hands. Also, consider galvanic compatibility when using this tape in EMI/RFI shielding. The tape features a copper foil backing with a thickness of 0.07mm.

It uses a thermosetting acrylic adhesive that is non-conductive. The adhesion strength is rated at 4.5N/cm, providing excellent bond strength. The tape is suitable for operating temperatures ranging from -20°C to 155°C. It has a tensile strength of 40N/cm, ensuring durability and resistance to mechanical stress.

Complies with EN legislation requirements, with origin in Ireland. The tape is supplied on a removable silicon liner for ease of application. Provides superior EMI/RFI shielding effectiveness and is easily soldered. Recommended for heating, ventilation, construction, and manufacturing applications.
