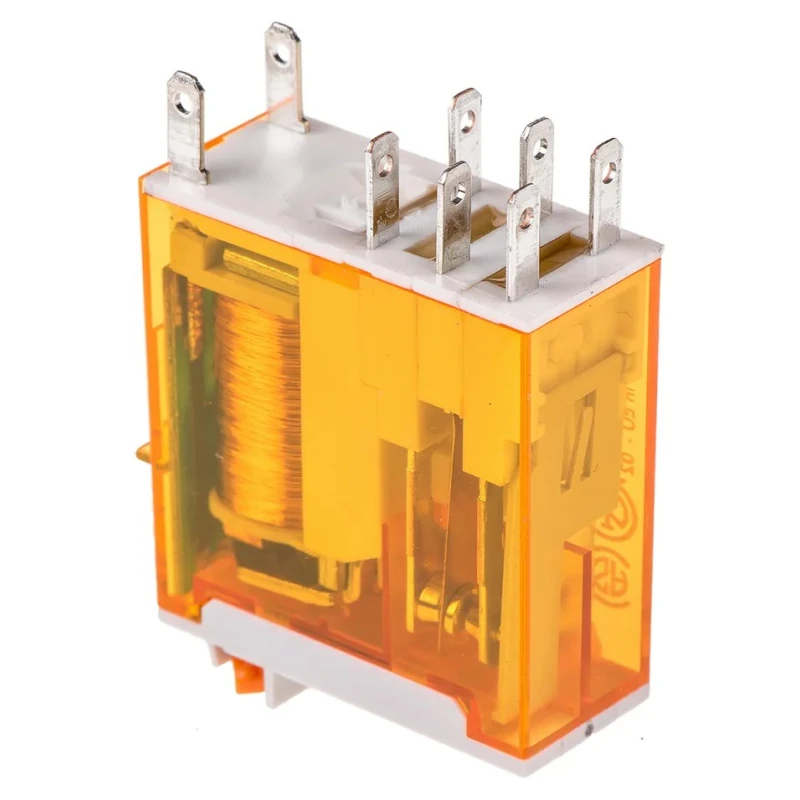

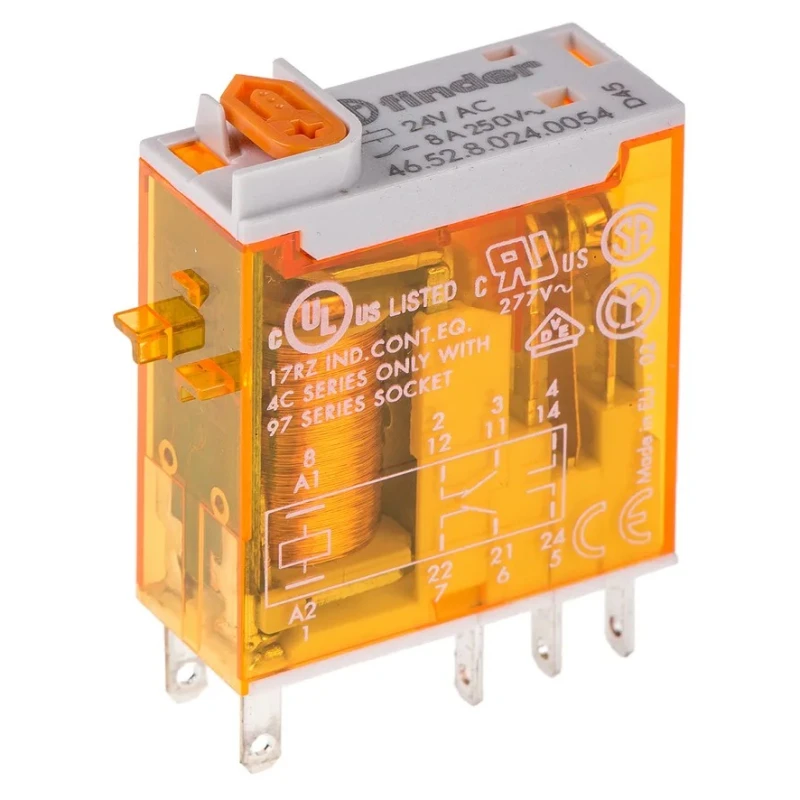

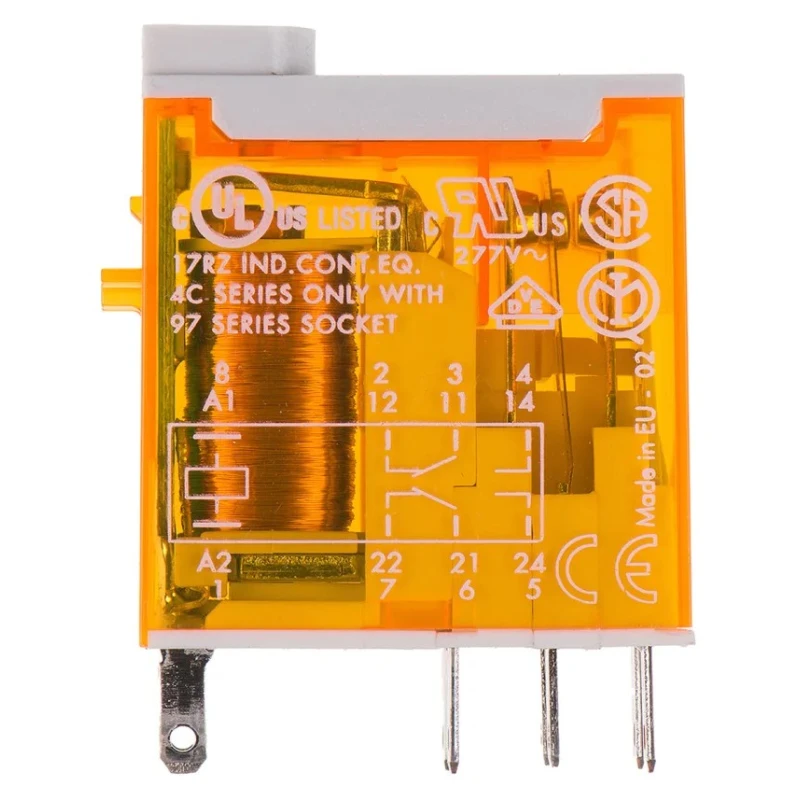

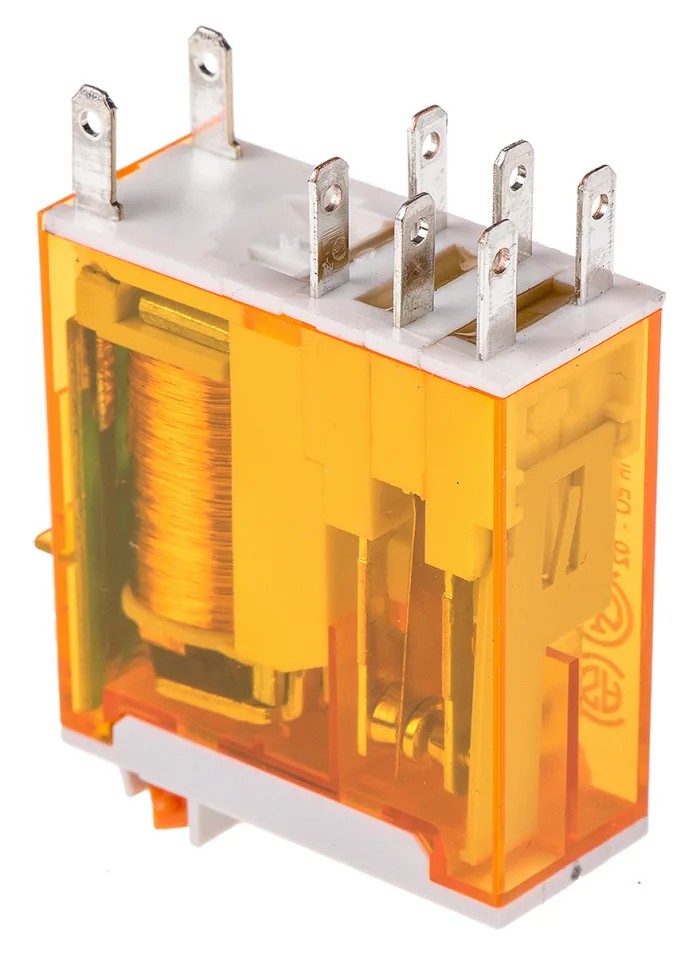

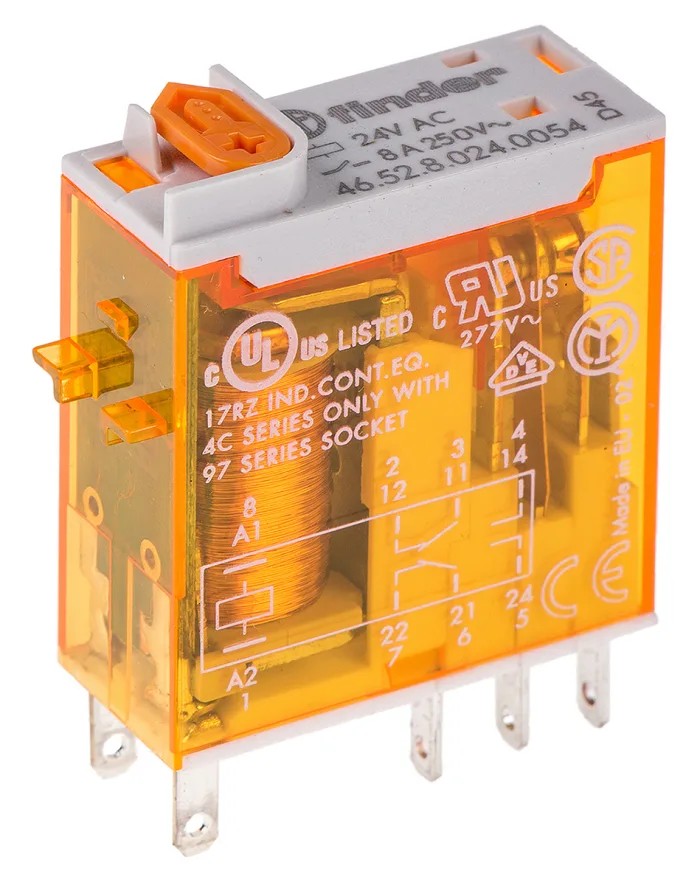

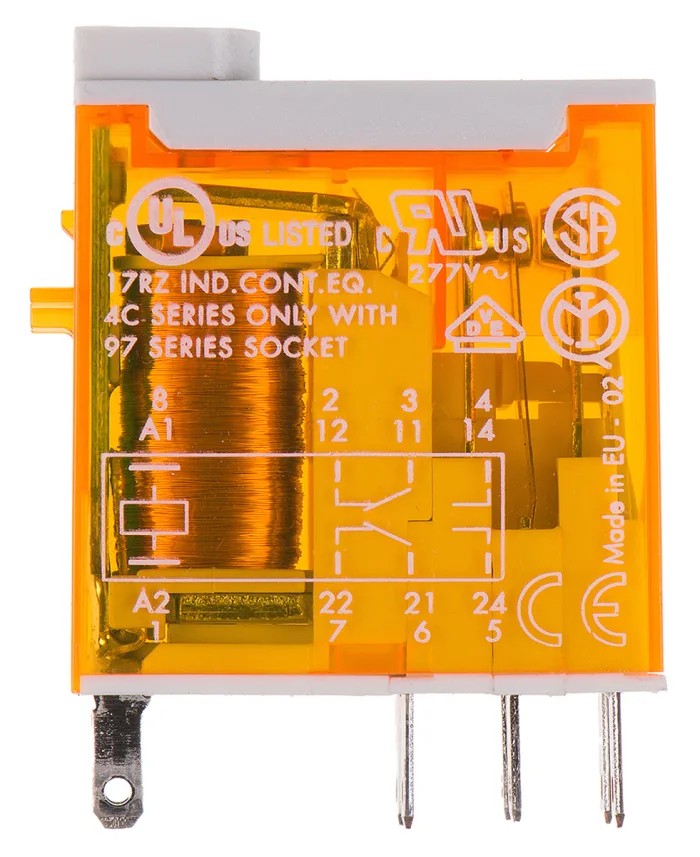

Finder PCB Power Relay 24V AC Coil Voltage 8A Switching Current DPDT 46.52.8.024.0054
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Standards/Approvals | EAC, RINA, RoHS, VDE, CE, CSA, cURus, EN, CCC |
| Coil Resistance | 320Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 15V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Compact PCB mount design suitable for space-constrained applications.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching.
- Silver alloy contacts ensure superior conductivity and durability.
- Maximum switching voltage of 250V AC with 8A current rating.
- Long electrical life of up to 100,000 cycles for extended reliability.
- Operates efficiently in temperatures from -40°C to +70°C.
- Insulation power of 6 kV between coil and contacts for enhanced safety.
- Compatible with control panels, automation systems, and industrial machinery.
Product Description
Finder 46.52.8.024.0054 PCB Power Relay is a high-performance electromechanical component designed for industrial, automation, and electrical control applications. Operating at 24V AC coil voltage, it features a robust DPDT contact configuration that allows versatile switch management across circuits. The relay’s compact dimensions (29mm length x 12.4mm width x 32.8mm height) enable installation in tightly constrained PCB layouts.
Constructed with silver alloy contacts, the relay provides excellent conductivity and durability, ensuring a long service life with up to 100,000 electrical cycles. Rated for switching currents up to 8A and a maximum AC switching voltage of 250V, this relay is ideal for controlling moderate load devices in various industrial environments.
The device performs reliably from -40°C to +70°C, making it suitable for harsh operating conditions including outdoor and industrial locations. It also features a high isolation voltage of 6 kV between the coil and contact circuits, enhancing electrical safety and preventing inadvertent current leakage. Installation is facilitated by PCB pin terminals, streamlining mounting and secure connections on printed circuit boards.
This power relay is widely used in control panels for automation systems, electrical distribution panels, road and tunnel lighting systems, hoists, cranes, lifts, bottling plants, and various industrial machinery setups. Its compact form factor combined with high performance makes it a dependable component for precise switching in commercial and industrial automation.
Compact PCB mount design suitable for space-constrained applications. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Silver alloy contacts ensure superior conductivity and durability. Maximum switching voltage of 250V AC with 8A current rating.
Long electrical life of up to 100,000 cycles for extended reliability. Operates efficiently in temperatures from -40°C to +70°C. Insulation power of 6 kV between coil and contacts for enhanced safety. Compatible with control panels, automation systems, and industrial machinery.
PCB pin terminals for easy installation and connectivity. Explore more Power Relays and electrical components in EnvMart for your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V AC.
It has a maximum switching current rating of 8A.
This model features a Double Pole Double Throw (DPDT) contact configuration.
The maximum switching voltage for this relay is 250V AC.
The dimensions are 29mm in length, 12.4mm in width, and 32.8mm in height.
It operates efficiently in temperatures from -40°C to +70°C.
The insulation power between the coil and contacts is 6 kV.
It has a long electrical life of up to 100,000 cycles.
The contacts are constructed from silver alloy, ensuring superior conductivity and durability.
It uses PCB pin terminals for easy installation and connectivity.
It complies with several standards including EAC, RINA, RoHS, VDE, CE, CSA, cURus, EN, and CCC.
This relay is compatible with control panels, automation systems, and various industrial machinery setups.
