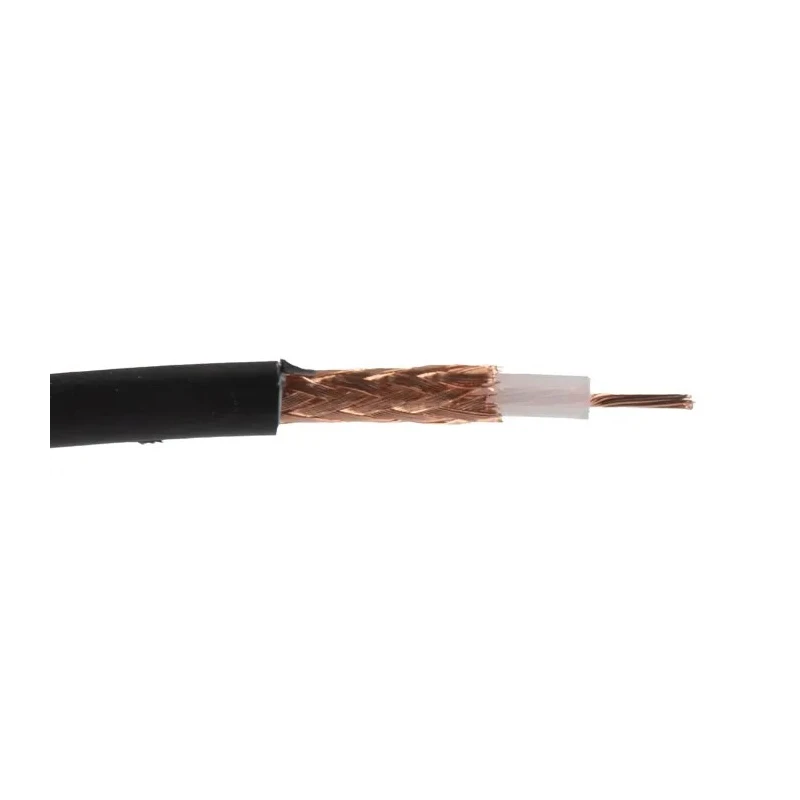

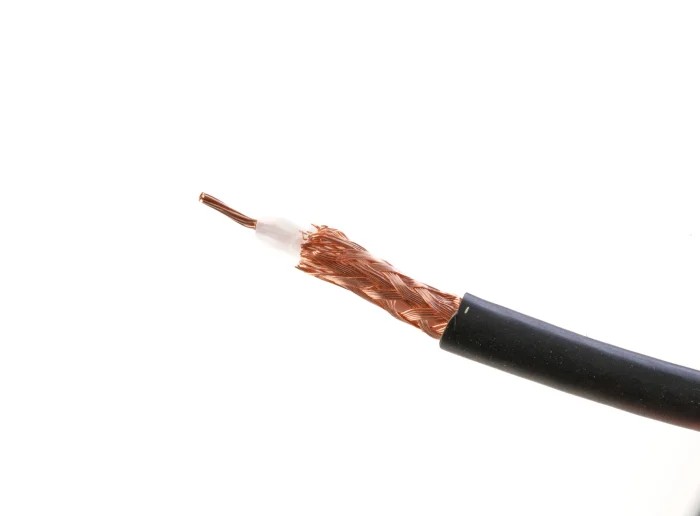

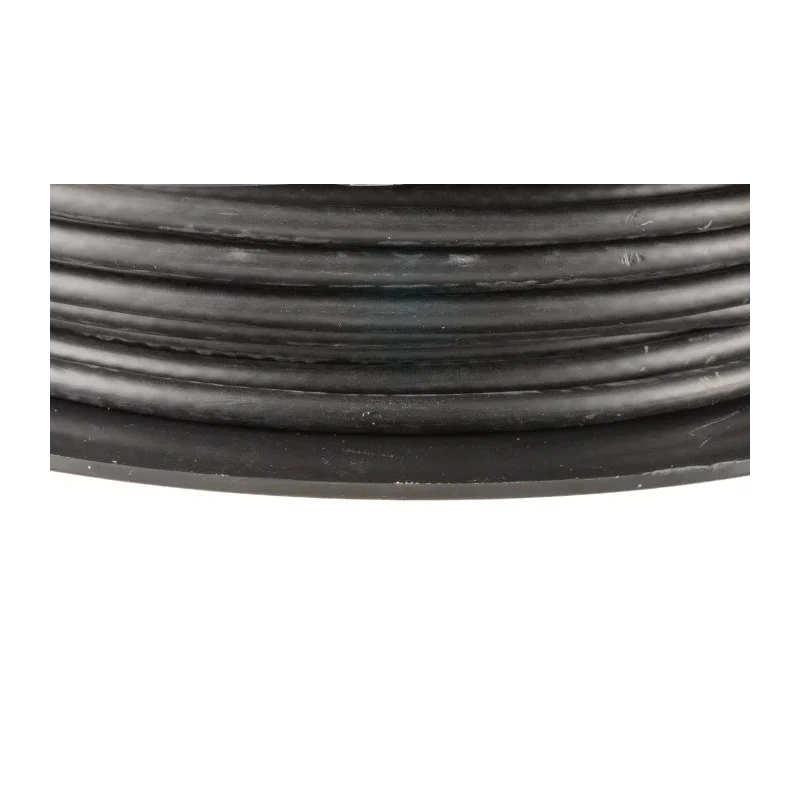

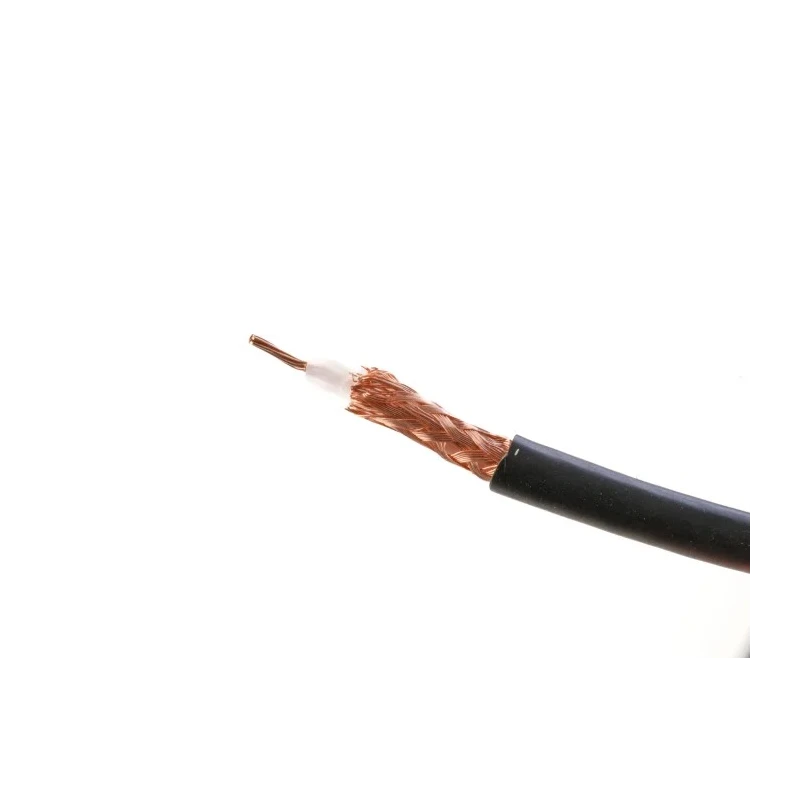

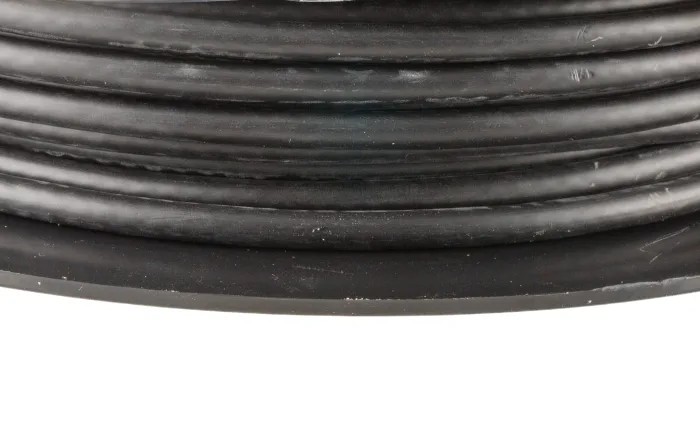

Belden URM76 Series 100 m Coaxial Cable 50 Ω Black Unterminated URM76
Specifications
| Country of Origin | Netherlands |
|---|---|
| Brand | Belden |
| Model | URM76 |
| Cable Length | 100m |
| Series | URM76 |
| Outside diameter | 5mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Attenuation | 52.7 dB |
| Standards/Approvals | CE |
| Characteristic Impedance | 50Ω |
| Jacket Colour | Black |
| Fire Behaviour | IEC 60332-1-2 (Low Smoke Zero Halogen) |
| American Wire Gauge | 20AWG |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.3mm |
| Size of Strands | 0.3mm |
| Terminated/Unterminated | Unterminated |
| Coaxial Type | URM76 |
| RS PRO, 100m, URM76 Coaxial, Unterminated50 ΩBrand | RS PRO |
| RS PRO 50 Ω Coaxial Cable, 500 m, 20 AWG BlackRS Stock No. | 521-8357Brand: RS PRO |
| URM76 black PVC coaxial cable,100mBrand | NEUTRAL |
| RS PRO 50 Ω Coaxial Cable, 500 m, 20 AWG BlackBrand | RS PRO |
Key Features
- The cable length is 100 meters for extended installations.
- Constructed with stranded tin copper wire conductor for durability and corrosion resistance.
- Features a 5 mm outside diameter with a polyvinyl chloride jacket for mechanical protection.
- Operates within a temperature range of -40°C to +70°C suitable for harsh environments.
- Offers low attenuation of 52.7 dB ensuring minimal signal loss over distance.
- Unterminated design allows for customizable connector fitting.
- Complies with CE standards and IEC 60332-1-2 fire behavior for safety.
- Supports frequencies from 5 MHz to 1000 MHz for versatile applications.
Product Description
Belden URM76 Series 100 m coaxial cable URM76 is a high-quality, unterminated coaxial cable designed for reliable two-way data and communication systems. With an impedance of 50 Ω, this black cable ensures efficient power transmission with minimal signal degradation over long distances.
The cable features a stranded tin copper wire conductor with seven 0.3 mm strands, enhancing flexibility and resistance to corrosion. The conductor is insulated with a strong polyethylene layer and protected by a polyvinyl chloride (PVC) jacket for durability and mechanical protection. It has an outside diameter of 5 mm, making it suitable for various industrial and commercial installations.
Operating temperatures range from -40°C to 70°C, allowing this cable to function effectively in harsh and demanding environments. Its low attenuation rating of 52.7 dB guarantees minimal signal loss, while the unterminated configuration provides flexibility for custom connector installation according to application needs.
The cable conforms to CE standards and IEC 60332-1-2 fire behavior regulations, ensuring safety and compliance in installation sites. It supports frequencies from 5 MHz to 1000 MHz, making it versatile for diverse applications including data transfer, communications networks, two-way radio systems, and wireless antenna setups.
The cable length of 100 meters suits complex and extended installations needing long cable runs. Stranded conductor design offers durability and better signal integrity. Polyvinyl chloride jacket provides excellent mechanical protection and weather resistance.
Wide temperature range supports industrial, laboratory, and commercial uses. Low signal attenuation makes it ideal for high-frequency signal transmission. Unterminated cable type allows customization to specific connector needs.
Conforms to international safety and quality standards for coaxial cables. Applications range across data communications, networking, wireless, and radio systems.
This Belden URM76 coaxial cable is suitable for industrial, telecommunications, data center, networking, and broadcast applications. Its robust build and technical specifications ensure reliable, high-performance connection for critical signal transmission tasks.
Explore more Coaxial Cable products in this category on EnvMart for enhanced industrial wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this coaxial cable is 70°C.
This model features a characteristic impedance of 50 Ω, making it suitable for efficient power transmission.
The cable length is 100 meters, suitable for extended installations.
The cable is constructed with a stranded tin copper wire conductor and has a polyvinyl chloride (PVC) jacket for mechanical protection.
The outside diameter of this coaxial cable is 5 mm.
The cable has a low attenuation rating of 52.7 dB, ensuring minimal signal loss over distance.
It operates within a temperature range of -40°C to 70°C, suitable for harsh environments.
This model complies with CE standards and IEC 60332-1-2 fire behavior regulations for safety.
It is suitable for data transfer, communications networks, two-way radio systems, and wireless antenna setups.
The conductor consists of 7 strands, each measuring 0.3 mm.
This coaxial cable is unterminated, allowing for customizable connector fitting according to application needs.
The jacket color of this cable is black, providing a standard appearance for installations.
