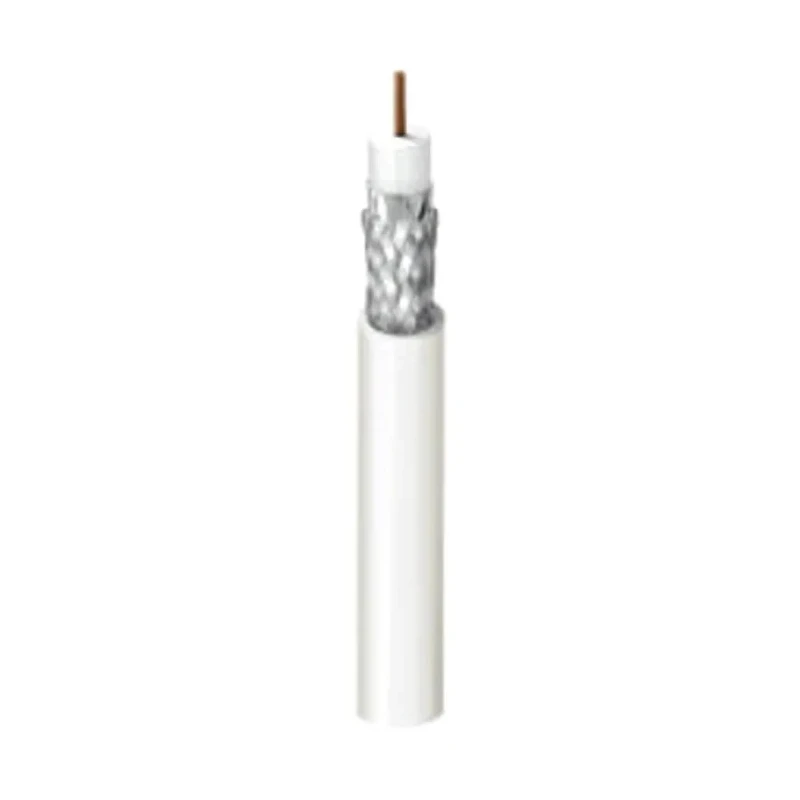

Belden RG59 Coaxial SDI Cable, 500 m Length, 23 AWG Bare Copper Clad Steel Conductor, PVC Jacket, 75 Ω, White MRG5900.11100
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 4.2kV |
| Brand | Belden |
| Model | MRG5900.11100 |
| Cable Length | 500m |
| Series | MRG5900 |
| Outside diameter | 6.15mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper Clad Steel |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Attenuation | 2.9 dB |
| Standards/Approvals | Euroclass Eca |
| Characteristic Impedance | 75Ω |
| Jacket Colour | White |
| Fire Behaviour | IEC 60332-1-2 (Low Smoke Zero Halogen) |
| American Wire Gauge | 23AWG |
| Conductor Type | Solid |
| Number of Strands | 1 |
| Core Strands | 1 x 0.58mm |
| Size of Strands | 0.58mm |
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG59 |
| RG59 WHITE 500MBrand | NEUTRAL |
Key Features
- Features a 23 AWG solid bare copper clad steel conductor for excellent signal integrity.
- PVC jacket offers durability and protection with white coloring.
- Characteristic impedance of 75 Ω ensures compatibility with SDI systems.
- Operates safely up to 4.2 kV voltage rating.
- Meets IEC 60332-1-2 fire behavior standards with low smoke zero halogen properties.
- Designed for a temperature range of -30°C to 70°C for versatile environmental tolerance.
- Euroclass Eca rated for cable fire performance.
- Unterminated cable ideal for custom installations and connector choices.
Product Description
The Belden MRG5900.11100 RG59 Coaxial SDI Cable is a premium-grade cable designed for high-definition video transmission and professional broadcast environments. Featuring a 23 AWG solid bare copper clad steel conductor, this cable delivers excellent signal quality with reduced attenuation at 2.9 dB, ensuring reliable and clear data transmission over long distances.
The cable's 6.15 mm outside diameter and white polyvinyl chloride (PVC) jacket provide robust mechanical protection while maintaining flexibility for easy routing and installation. The jacket is classified as Low Smoke Zero Halogen (LSZH) compliant under the IEC 60332-1-2 standard, making it suitable for use in areas requiring enhanced fire safety.
Operating within a temperature range of -30°C to 70°C and rated for 4.2 kV voltage, this unterminated cable is versatile and suitable for various industrial, commercial, and broadcast applications where custom connectors are used. It conforms to the Euroclass Eca fire safety standard, assuring compliance with stringent fire behavior requirements.
The Belden MRG5900 Series cable is typically used in CCTV, video surveillance systems, and other professional SDI signal transmission tasks, benefiting industries such as telecommunications, broadcasting, security, and automation.
Solid 23 AWG copper clad steel conductor for enhanced signal stability. Polyvinyl chloride jacket in white color for identification and protection. 75 Ω characteristic impedance for compatibility with broadcast SDI standards.
LSZH construction for reduced smoke and halogen emissions in case of fire. Compatible with custom terminations, allowing flexibility in installation requirements. Operates reliably across wide temperature and voltage ranges.
Complies with Euroclass Eca fire performance standards. Attenuation of 2.9 dB suitable for high-frequency signal integrity over 500 meters. Mechanical diameter aligns with installation and conduit standards.
This cable is an ideal choice for installers and system integrators seeking a reliable, high-performance RG59 Coaxial Cable for demanding SDI signal transport applications. For additional support and to explore complementary accessories, browse the comprehensive wireless, CCTV, and cable solutions available within the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The characteristic impedance of this RG59 coaxial cable is 75 Ω, ensuring compatibility with SDI systems.
This model can operate at a maximum temperature of 70°C, making it suitable for various environments.
The cable has an attenuation rating of 2.9 dB, which is suitable for maintaining signal integrity over long distances.
It features a solid bare copper clad steel conductor, which enhances signal stability and quality.
The outside diameter of this cable is 6.15 mm, which aligns with standard installation and conduit requirements.
The cable has a voltage rating of 4.2 kV, allowing it to operate safely in various applications.
It meets the IEC 60332-1-2 fire behavior standards and is classified as Low Smoke Zero Halogen (LSZH), enhancing fire safety.
This cable operates within a temperature range of -30°C to 70°C, providing versatility for different environments.
The jacket of this coaxial cable is white, which aids in identification during installation.
This model is an unterminated cable, allowing for custom installations and connector choices.
The cable is manufactured in the Netherlands, ensuring compliance with European standards.
This cable is typically used in CCTV, video surveillance systems, and professional SDI signal transmission tasks.
