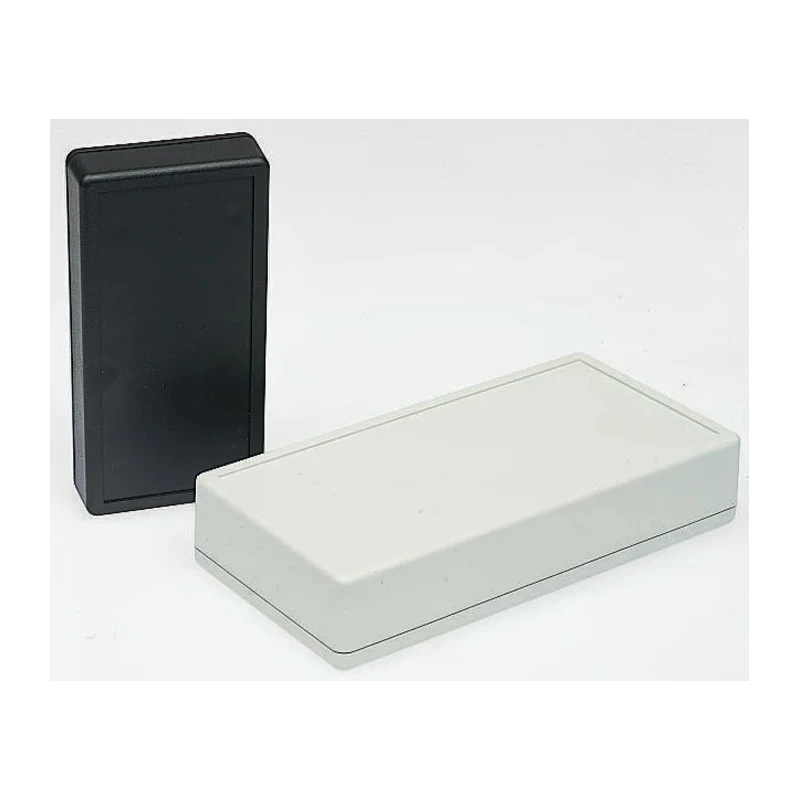

Hammond 1599 Series Grey Flame Retardant ABS Hand Held Enclosure Integral Battery Compartment Display Window, , 170 mm IP54

Hammond IP54 hand held enclosure, model 1599 Series, features a grey flame retardant ABS body with an integral battery compartment, external dimensions measuring 170 mm length, 85 mm width, and 34 mm height. Designed specifically for housing hand held instruments, this enclosure provides a sturdy and protective solution with a display window for clear viewing of internal components or displays. The enclosure meets IP54 rating standards, safeguarding against dust ingress and water splashes, suitable for harsh industrial environments.

The structure uses a 2-piece lap joint design with extra deep top and shallow base sections, offering enhanced strength and durability. The top includes a recessed area suitable for keypads, displays, or push buttons, complemented by molded push button provisions. Assembly is secured through Philips machine screws threaded into tapped integral brass bushings, ensuring repeatable process reliability.

Additional features include molded knockouts at the base for convenient wall mounting and six bosses both on top and base to facilitate PCB mounting, making this enclosure adaptable for various electronics installations. Vertical card guides on the top facilitate component positioning. Constructed from flame retardant ABS material, it holds a UL 94 V-0 material flammability rating, ensuring compliance with safety requirements.

The enclosure weighs approximately 138 grams, delivering a lightweight yet robust housing option. Its IP54 rating combined with flame retardant properties make it suitable for demanding applications in industrial, laboratory, manufacturing, and automation systems sectors where component protection and access are critical.

Manufactured in the United States, this Hammond enclosure assures high quality and reliability. It is ideal for protecting delicate electronic instruments and displays while providing environmental protection and ergonomic handling.

Designed with a display window providing clear visibility. Constructed from flame retardant ABS material rated UL 94 V-0 for enhanced safety. Features IP54 ingress protection for dust and splash resistance. Equipped with recessed keypad/display area and push buttons for user control.

Two-piece lap joint construction for structural integrity. Includes molded knockouts for wall mounting and multiple bosses for PCB installation. Lightweight design weighing 138 grams facilitating handheld use. Suitable for industrial and laboratory instrument housing applications.

Made in the United States ensuring high manufacturing standards. Explore more quality Electrical Enclosures and industrial components in the Electronics & Electricals category at EnvMart.
