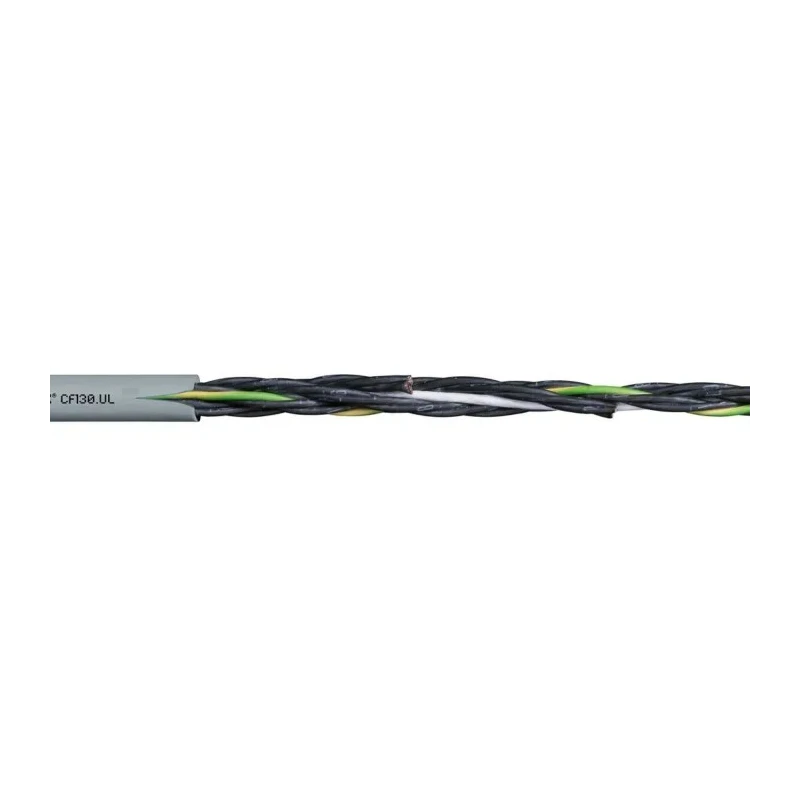

Igus Chainflex CF130.UL PVC Control Cable 7 Cores 1.5mm² 15 AWG Unscreened Armoured 500V 10 m Grey CF130.15.07.UL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 500V |
| Brand | Igus |
| Model | CF130.15.07.UL |
| Cable Length | 10m |
| Series | Chainflex CF130.UL |
| Outside diameter | 9.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 7 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Thermoplastic Elastomer |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 15AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1.5mm² |
Key Features
- The cable has a nominal voltage rating of 500V suitable for industrial control applications.
- Constructed with bare copper stranded conductors and a thermoplastic elastomer grey sheath.
- The cable is torsion resistant and flame-retardant, conforming to IEC 60332-1-2 standards.
- It is silicon-free and resistant to oil influence for enhanced durability in industrial environments.
- The cable length is 10 meters, featuring an outside diameter of 9.5 mm.
- Operating temperature range is from -5°C to 70°C, supporting indoor and energy chain applications.
- The cable is armoured to provide mechanical protection and is suitable for freely suspended travel distances up to 50 m.
- The outer sheath is a low-adhesion PVC mixture, specially adapted for energy chain use.
Product Description
Igus Chainflex CF130.15.07.UL Control Cable is a high-quality PVC cable tailored for medium load industrial automation, electrical control, and power applications operating at 500V. This cable features 7 cores with 1.5mm² (15 AWG) stranded bare copper conductors that ensure excellent conductivity and flexibility.
The cable jacket is made of a grey thermoplastic elastomer that is flame retardant according to IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, making it suitable for indoor industrial use where fire safety is a concern. Its unscreened design, combined with armoured construction, offers a balance of protection and flexibility for use in energy chain systems and flexible cable routes.
This control cable is silicon-free and oil resistant, ensuring reliable operation without degradation from common industrial oils. It supports freely suspended travel distances and gliding applications up to 50 meters, offering durability in automation environments.
The cable has an outside diameter of 9.5 mm and operates safely within temperatures ranging from -5°C to 70°C, accommodating typical indoor installation environments. The fine-wire stranded copper conductor complies with EN 60228, guaranteeing flexibility and mechanical robustness.
The outer sheath is a specially formulated low-adhesion PVC mixture based on DIN VDE 0282 Part 10 requirements, optimized for use in energy chain systems to minimize wear and friction.
The cable has 7 cores with 1.5mm² cross-sectional area and 15 AWG conductor size. Voltage rating is 500V suitable for control and signal transmission. Armoured and unscreened construction provides mechanical protection. Flame retardant sheath certified to IEC and CEI flame standards.
Operating temperature range from -5°C to 70°C for indoor applications. Cable length included in the package is 10 meters. Conforms to international standards CE and EN.
This cable is ideal for industrial automation control, electrical power cabling, and robotics applications where durability, safety, and flexibility are critical. It is sourced from Japan, reflecting high manufacturing quality and consistency.
Explore more Control Cables and industrial wiring solutions in the Electronics & Electricals category at EnvMart for reliable and certified cabling options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a nominal voltage rating of 500V, suitable for industrial control applications.
This model features 7 cores, each with a cross-sectional area of 1.5mm² (15 AWG).
The maximum operating temperature for this cable is 70°C.
The outside diameter of the cable is 9.5 mm.
The cable is designed for indoor applications, with an operating temperature range from -5°C to 70°C.
The cable is constructed with bare copper stranded conductors and a thermoplastic elastomer grey sheath, providing flexibility and protection.
It conforms to CE and EN standards, and its flame retardant sheath meets IEC 60332-1-2 standards.
The cable length included in the package is 10 meters.
Yes, it is specifically adapted for use in energy chain systems and can support freely suspended travel distances up to 50 meters.
This model uses stranded bare copper conductors, which ensure excellent conductivity and flexibility.
The cable is unscreened, which is suitable for various industrial applications where shielding is not required.
The cable jacket is flame retardant, conforming to IEC 60332-1-2 standards, making it suitable for environments where fire safety is a concern.
