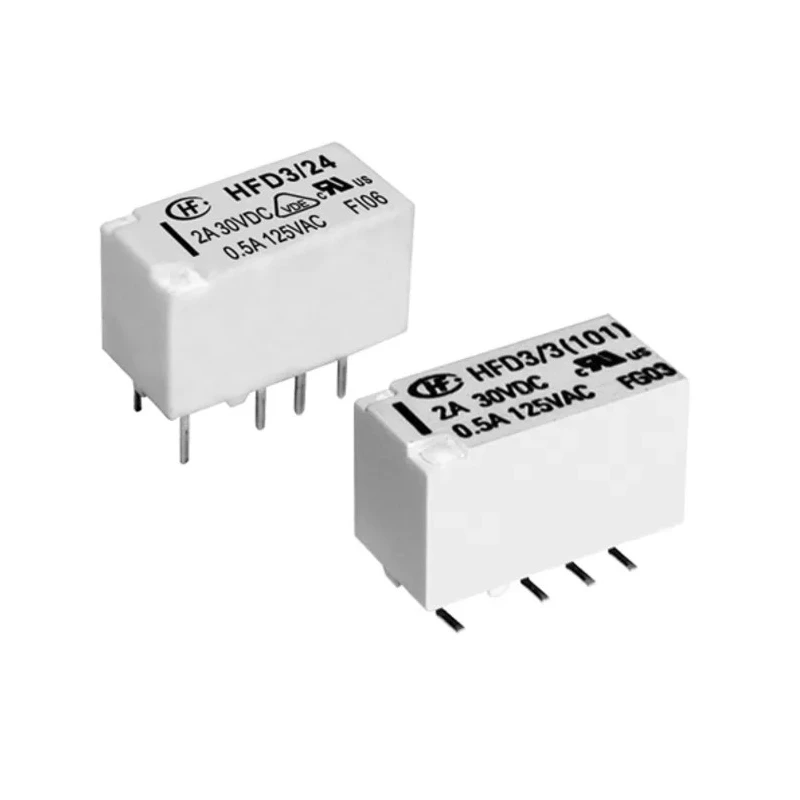

Hongfa Europe GMBH Surface Mount Signal Relay 24V DC Coil Voltage 2A DPDT Contact Configuration HFD3/24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9mm |
| Length | 15mm |
| Model | HFD3/24 |
| Width | 7.5mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 4100Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 140mW |
| Outline Dimensions | (15.0 x 7.5 x 9.0) mm |
Key Features
- Compact surface mount design measuring 15 x 7.5 x 9 mm.
- Gold plated contacts provide reliable conductivity and longevity.
- Supports switching AC voltage up to 277V and DC voltage up to 220V.
- Operates reliably between -40°C and 85°C for varied environments.
- Low coil power consumption at 140 mW enhances energy efficiency.
- Coil resistance is precisely 4100Ω, ensuring controlled activation.
- Contact resistance maintained at 100 mΩ for optimal signal clarity.
- Meets RoHS standards confirming environmental compliance.
Product Description
Hongfa Europe GMBH HFD3/24 is a high-quality surface mount signal relay designed for electrical and automation applications requiring precise switching control at 24V DC coil voltage and 2A switching current.
This DPDT (Double Pole Double Throw) relay offers reliable contact switching with gold plated contacts and a compact footprint of 15 mm length, 7.5 mm width, and 9 mm height, optimizing PCB space utilization.
Operating temperature range from -40°C up to 85°C ensures performance stability in challenging industrial and manufacturing environments. The coil resistance of 4100Ω combined with a coil power consumption of only 140 mW contributes to efficient energy usage.
The relay supports switching AC voltages up to 277V and DC voltages up to 220V, suitable for various control signal applications. Its PCB terminal configuration facilitates straight-forward mounting during PCB assembly.
Compliant with RoHS directives, this relay is environmentally friendly and features a surge withstand voltage rating of up to 2500 VAC, protecting against voltage spikes and enhancing device longevity.
Ideal for use in industrial automation, control systems, signal conditioning, and other electronics assemblies where space and reliability are critical. Compact surface mount design suits space-constrained PCBs. Gold plated contacts enhance signal integrity and durability.
Supports wide voltage and temperature ranges for versatile applications. Low coil power consumption reduces operational energy costs. Surge protection ensures robust performance against transient events. Environmentally compliant with RoHS standards.
Easy PCB terminal mounting for efficient installation. Explore the full range of Signal Relays and related components at EnvMart for your next electrical or automation project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The maximum switching current for this model is 2A.
The relay has dimensions of 15 mm in length, 7.5 mm in width, and 9 mm in height.
It operates reliably between -40°C and 85°C.
The contact resistance is maintained at 100 mΩ.
This model uses a surface mount design for easy installation.
The coil resistance is precisely 4100Ω.
It supports switching AC voltages up to 277V and DC voltages up to 220V.
Yes, it meets RoHS standards for environmental compliance.
The coil power consumption is low at 140 mW, enhancing energy efficiency.
The relay has a surge withstand voltage rating of up to 2500 VAC.
