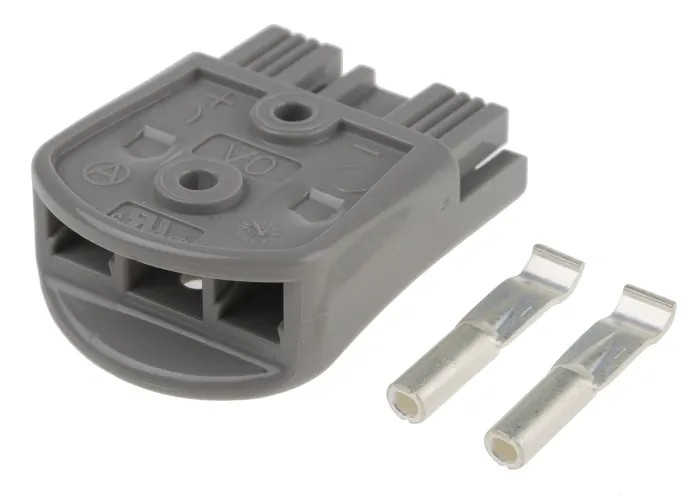

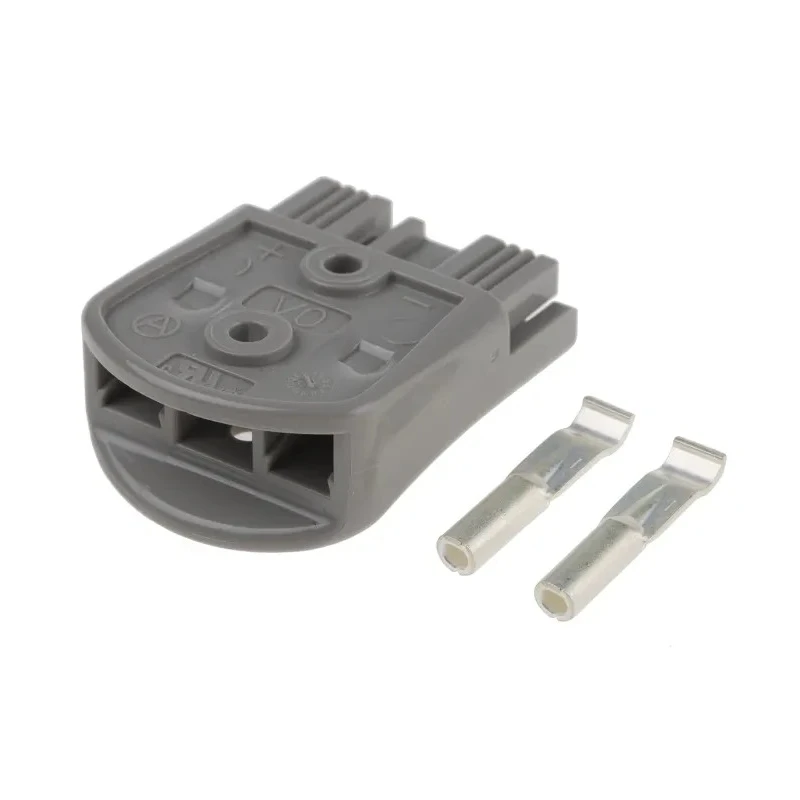

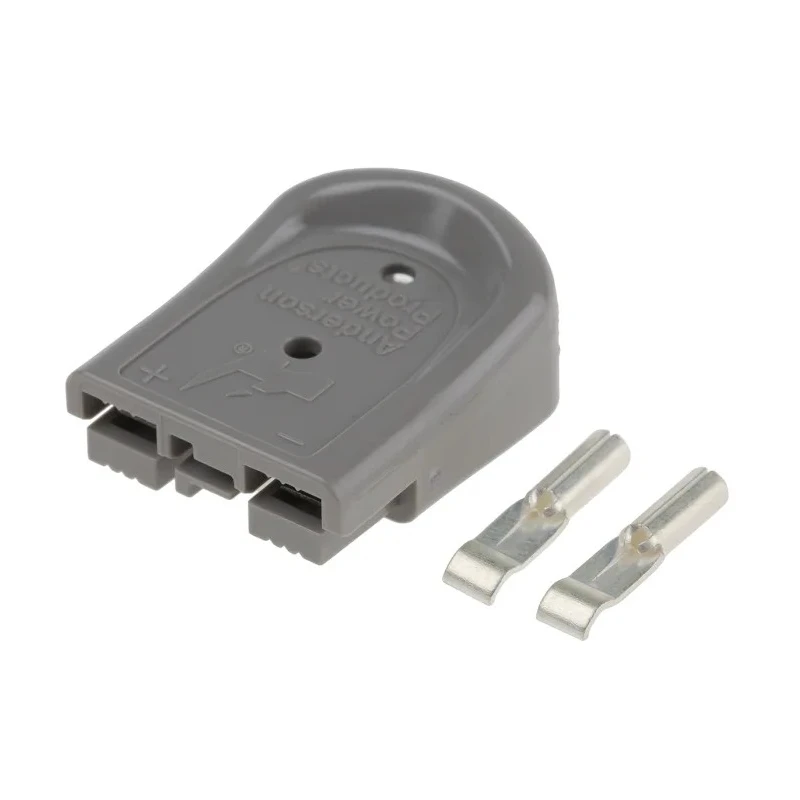

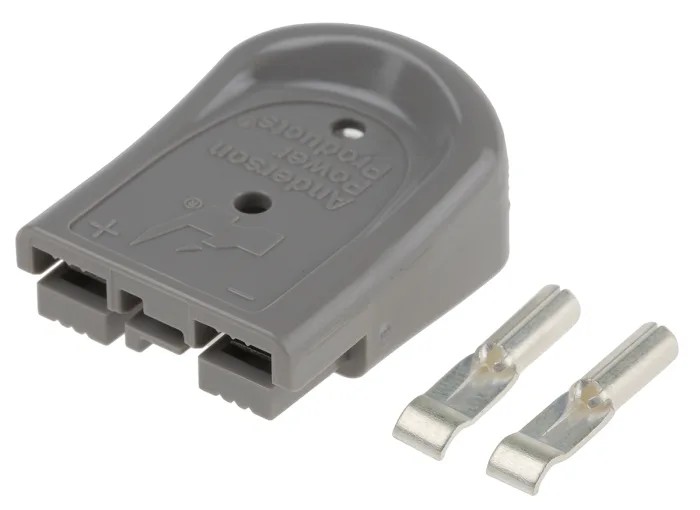

Anderson Power Products SBS MINI Series 2 Way Male Battery Connector, Straight, Cable Mount, 600V, 52A B02265G4-15

The Anderson Power Products B02265G4-15 is part of the SBS MINI Series, recognized as the smallest DC power connector in the SB® group. This 2 Way Male Battery Connector is designed to provide a reliable, straight cable-mounted connection capable of handling up to 600V and 52A current.

The connector features a robust polycarbonate housing that offers excellent insulation and mechanical durability. Inside, the copper alloy contacts plated with silver ensure low resistance and high conductivity, enabling efficient power transfer with minimal losses.

The connector’s design includes two crimp and poke contacts with sacrificial tips, enabling hot swap capability on DC circuits. This allows for safe and quick disconnection and connection without interrupting the power supply, a critical feature in many industrial and commercial applications.

Its touch safe interface minimizes risk of accidental contact with live circuits, making it safe for through-panel mounting. The connector supports wire sizes from 0.75 to 4.0 mm² (20 to 10 AWG), accommodating a range of cable thicknesses for versatile applications.

Operating reliably in temperatures ranging from -20°C up to 105°C, this connector is suitable for demanding environments such as industrial automation, power supply systems, and battery-powered equipment.

The SBS MINI Series connector is UL rated for 52 amps per position, reflecting its capacity to safely handle high current loads. Its compact size and integrated ground or auxiliary positions within a one-piece housing simplify installation and meet varied connection requirements in a single compact unit.

The connector securely holds two contacts with sacrificial tips enabling hot swap capability. Housing construction from polycarbonate provides electrical safety and mechanical ruggedness. Silver-plated copper alloy contacts ensure low resistance and corrosion resistance.

Supports crimp termination for secure cable connections. Touch safe interface enables safe through-panel installation preventing accidental contact with live parts. Suitable for wire sizes 20 to 10 AWG (0.75 to 4.0 mm²) allowing flexible wiring options.

Designed for continuous operation between -20°C and 105°C. UL rated for 52A current carrying capacity making it suitable for high-power applications. Compact SBS MINI Series design optimizes space without compromising functionality.

Manufactured in the United Kingdom ensuring quality and reliability.

This connector is ideal for industrial, commercial, and power distribution uses, including battery pack connections, DC power circuits, and automated machinery. Explore more power connectors at EnvMart for tailored connection solutions to suit your application’s technical needs.
