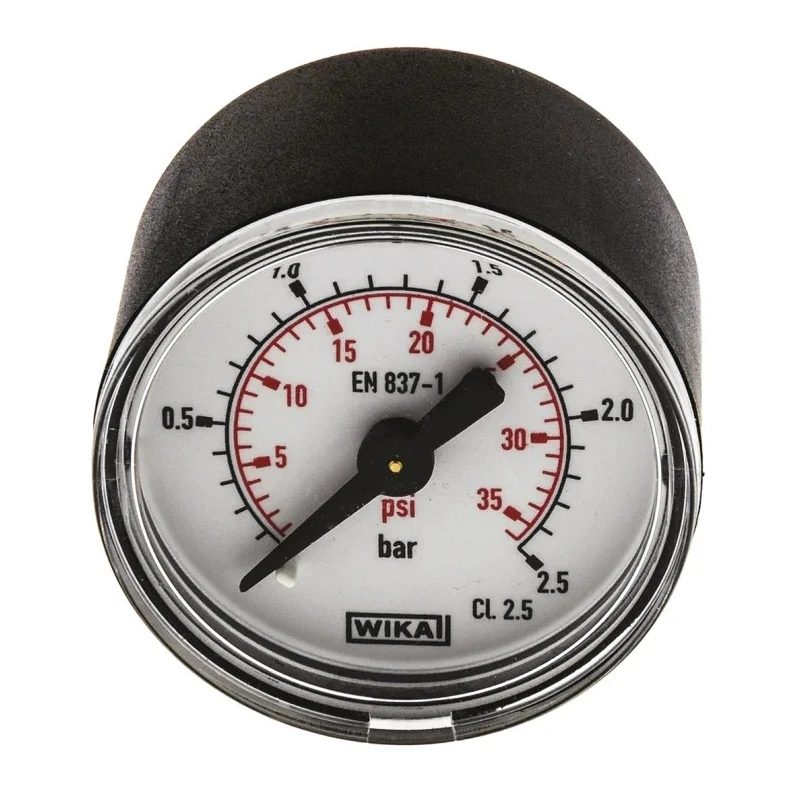

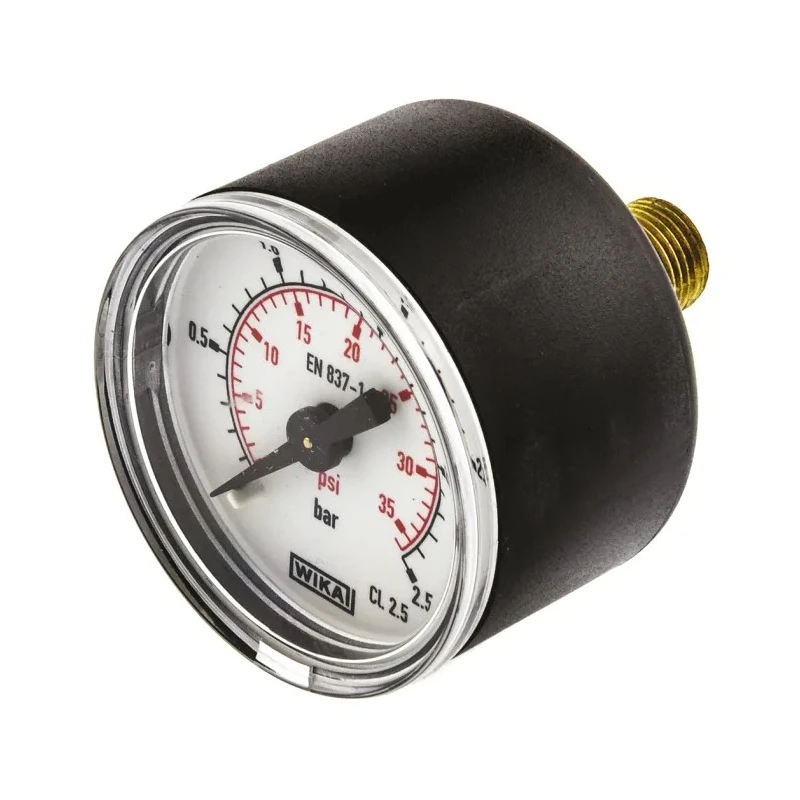

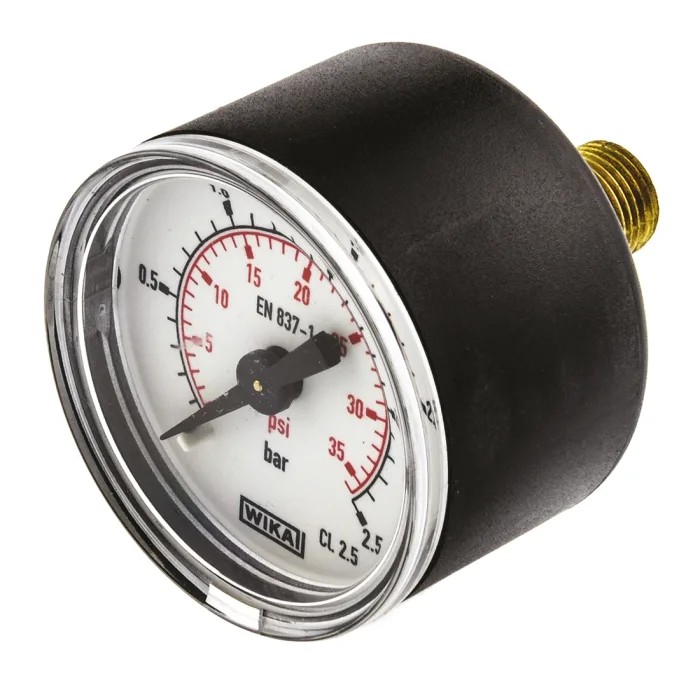

WIKA 40 mm Plastic Case Pressure Gauge 2.5 bar, White Dial, Back Entry 7833500

The WIKA 7833500 pressure gauge is a precision measurement instrument featuring a 40 mm diameter plastic case and a white dial. Designed on the Bourdon tube principle, this pressure gauge reliably monitors pressures up to 2.5 bar, making it suitable for pneumatic systems, small capacity compressors, medical equipment, and HVAC installations.

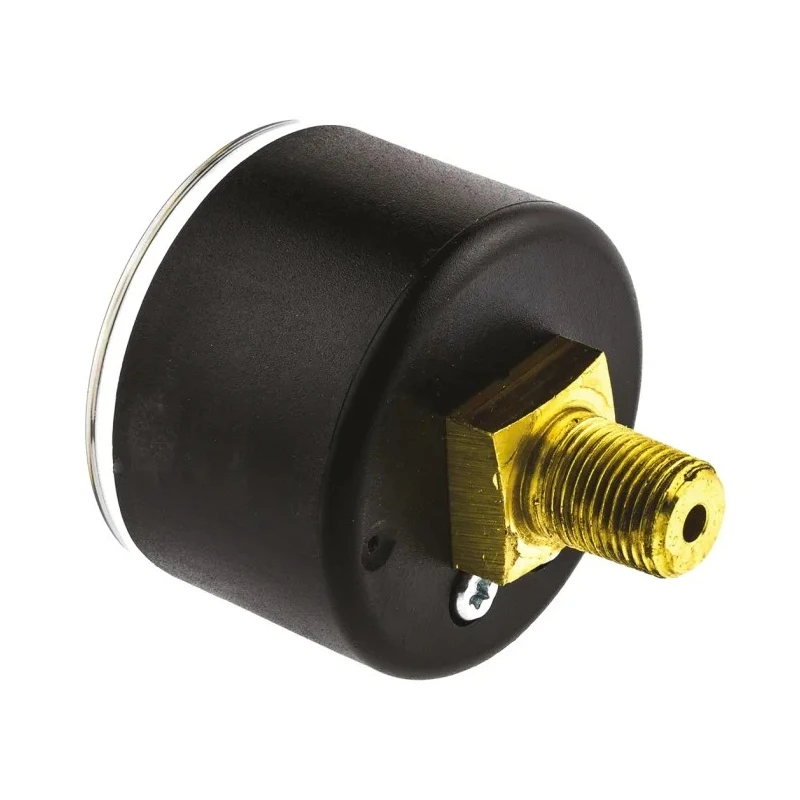

It uses a back entry connection with a R 1/8 ISO 7 x 12.7 BSP tapered thread for straightforward mounting. The dual-scale dial, calibrated in both bar and psi, offers flexibility for various applications. The durable plastic case and white dial ensure clear visibility and reliable performance.

This gauge supports a maximum ambient operating temperature of +60°C and can operate in a temperature range from -40°C to +60°C, suitable for diverse industrial environments. It provides an accuracy of ±2.5% full scale according to EN 837-1 class 2.5 standards, ensuring trustworthy readings.

WIKA 7833500 is designed for use with gaseous and liquid media that do not obstruct the pressure system or corrode copper alloy components. It is ideal for pneumatic applications and fluid power systems in industrial, laboratory, and commercial settings.

The pressure gauge utilizes the Bourdon tube operating principle for accurate pressure readings. Features a white dial with dual scale calibrated in bar and psi for versatile measurement. Back entry connection with R 1/8 ISO 7 x 12.7 BSP tapered thread allows easy installation.

Suitable for gaseous and liquid media excluding highly viscous fluids. Operating temperature ranges from -40°C to +60°C ensuring reliability in various environments. Accuracy is ±2.5% FSD compliant with EN 837-1 class 2.5 standards.

Ideal for use in small compressors, medical engineering, and HVAC applications. Compact design with 40 mm dial diameter allows use in tight installations.

This product is manufactured in Poland and conforms to EN 837-1 standards, reflecting WIKA’s commitment to quality and dependability. The gauge is a practical instrument for fluid power, pneumatic, and hydraulic systems across a wide range of industrial sectors.

Explore more precision measurement instruments and Pressure Gauges in the EnvMart catalog to find the right fit for your industrial or laboratory needs.
