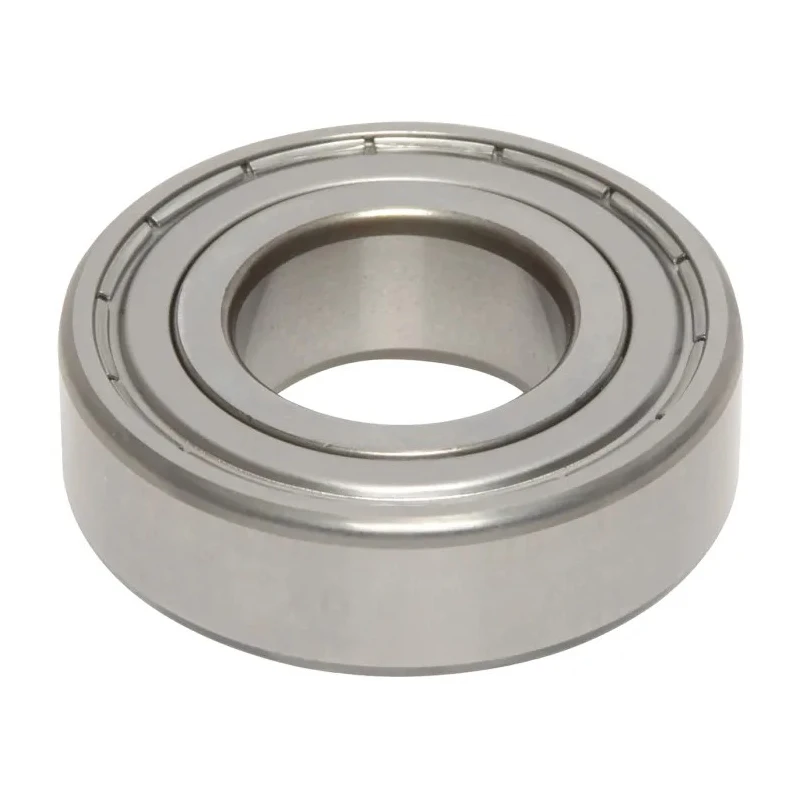

SKF Single Row Deep Groove Ball Bearing 12 mm ID, 24 mm OD, 6 mm Width, Double Shielded Sheet Metal Cage 61901-2Z

SKF 61901-2Z single row deep groove ball bearing features a 12 mm inside diameter, 24 mm outside diameter, and 6 mm race width, making it suitable for various industrial and mechanical applications. Its double shielded end type protects the ball race from dust and dirt contamination, minimizing friction losses and maintenance requirements while ensuring long service life. The sheet metal cage separates the steel balls and maintains their radial spacing with precision.

This bearing type supports radial and axial loads in both directions and operates at high speeds up to 32000 rpm. The internal clearance is classified as CN, suitable for general purpose applications. Its parallel bore design allows for direct mounting onto shafts without the need for adaptor sleeves.

Common use cases for the SKF 61901-2Z include automation control systems, office machinery, garden equipment, and household tools, where durable and reliable bearing performance is critical. The bearing is engineered to withstand environments where contamination can be a concern thanks to its double steel shield protection.

The bearing belongs to SKF's 1 Extra Light Thrust series and is constructed with high-quality steel materials for the race and balls, ensuring excellent load ratings: static load rating of 1.46 kN and dynamic load rating of 2.91 kN. This combination provides a versatile and efficient solution for various mechanical rotary needs in industrial, commercial, and agricultural sectors.

Features a double shield to prevent dust ingress and grease leakage. Steel balls and race ensure high load capacity and durability. Sheet metal cage maintains precise ball spacing for smooth operation. 12 mm ID and 24 mm OD dimensions for compact applications.

High limiting speed of 32000 rpm enables use in high-speed machinery. Parallel bore for easy shaft mounting without additional sleeves. Suitable for multiple industrial and household equipment uses. Explore EnvMart's comprehensive range of rotary bearings and housing units for your mechanical needs, including premium SKF products engineered for reliability and precision.
