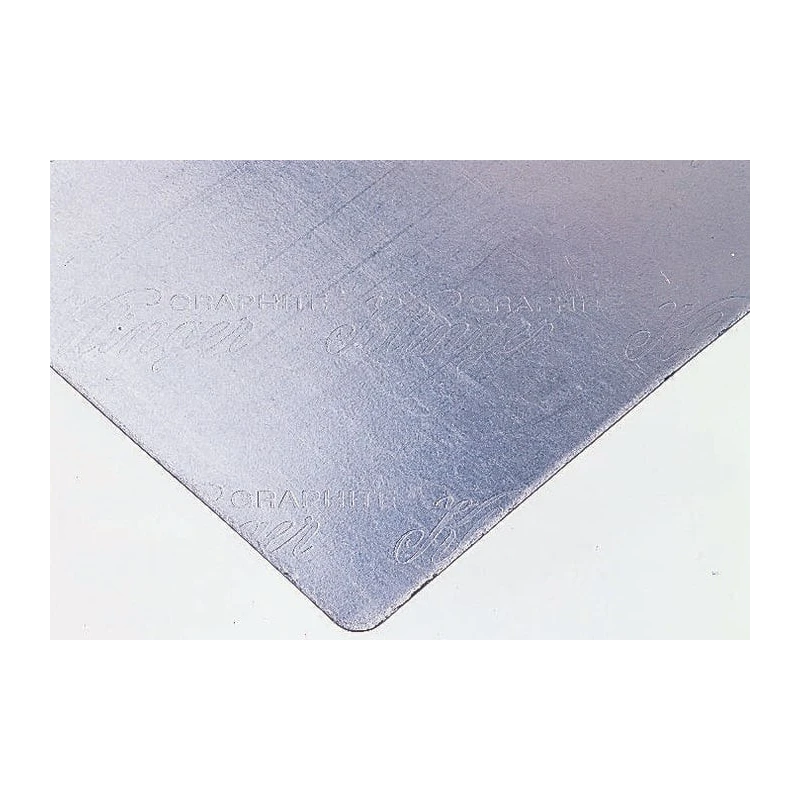

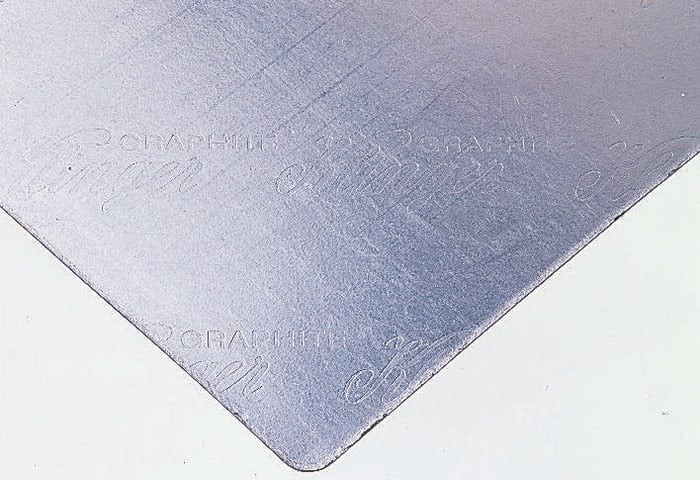

Klinger Graphite Gasket Sheet, 1.5 mm Thick, 150 bar Pressure, 460 °C Max Temperature, 500 mm x SOFS069000150XXSQUA855989

Klinger SOFS069000150XXSQUA855989 is a premium graphite gasket sheet engineered to provide excellent sealing performance under extreme conditions. This gasket sheet is 1.5 mm thick and measures 500 mm by 500 mm, suitable for various industrial sealing applications demanding high temperature and pressure resistance.

Constructed from pure expanded graphite combined with a stainless steel foil reinforcement, it enhances mechanical strength and handling properties. The material excels in applications requiring thermal resilience with a maximum operating temperature of 460 °C and maximum pressure tolerance of 150 bar.

This gasket sheet is certified with BAM approval to be used safely with oxygen service at pressures up to 130 bar and temperatures of 200 °C. It also meets industry standards including WRc certification, DIN DVGW NG-5124AT0417, and is firesafe according to BS 5146, ensuring compliance with safety and quality norms.

Manufactured from pure expanded graphite and stainless steel foil reinforcement. Maximum operating temperature: 460 °C. Maximum operating pressure: 150 bar. Sheet dimensions: 500 mm × 500 mm × 1.5 mm thick. Certified for oxygen service and firesafe standards.

Origin: Switzerland. Suitable for sealing in mechanical, fluid power, and industrial applications.

This product is ideally suited for use in industrial machinery, fluid power systems, mechanical sealing, chemical processing plants, and other demanding environments where reliable and durable gasket materials are required.

Explore other Gasket Sheets and sealing solutions from Klinger to meet diverse industrial sealing needs here at EnvMart.
