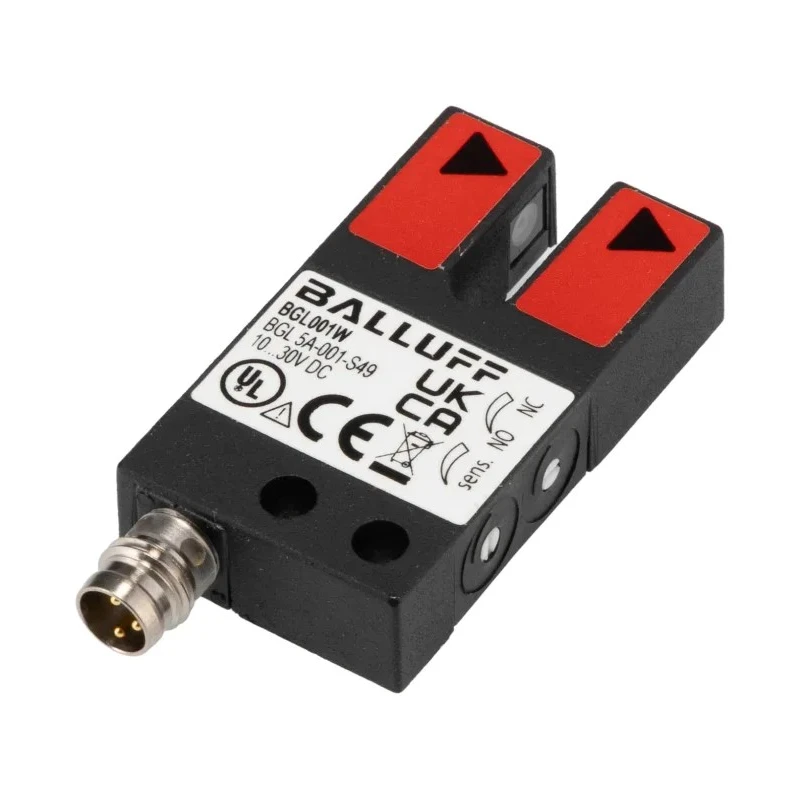

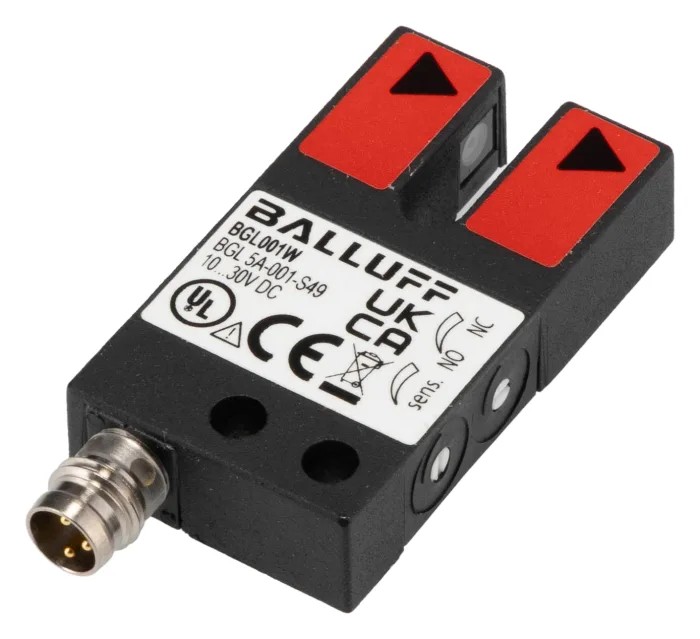

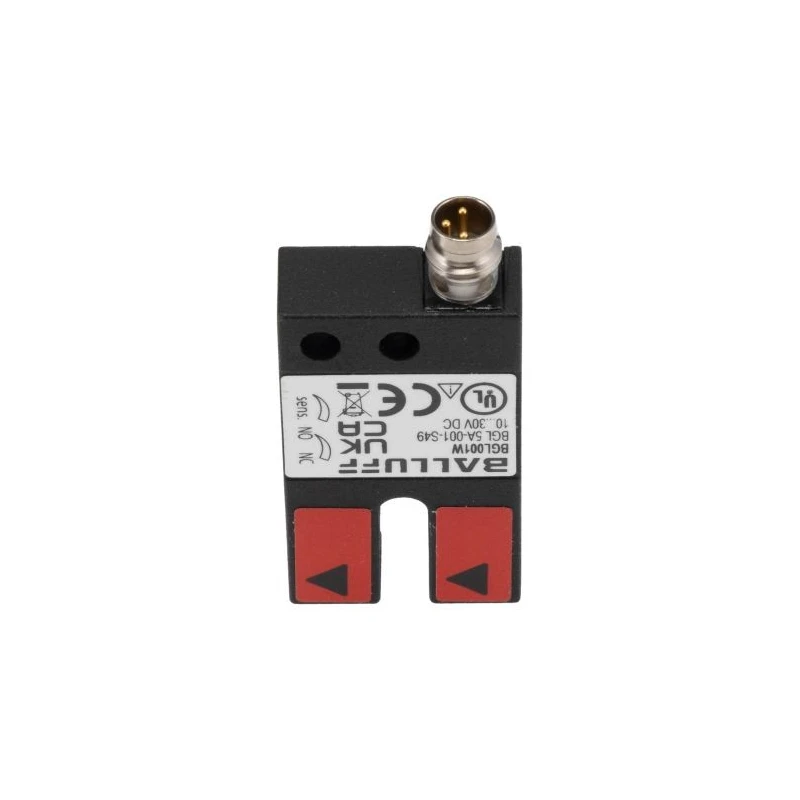

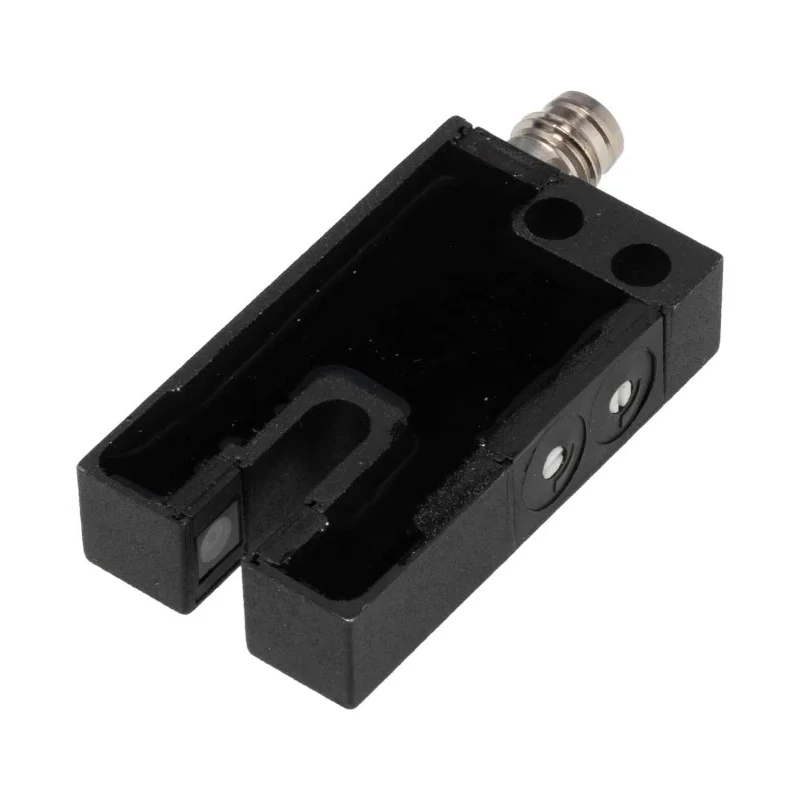

BALLUFF Through Beam Photoelectric Fork Sensor, 5 mm Detection Range, PNP Output, IP65, Anodised Aluminium BGL 5 A-001-S49
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | BALLUFF |
| Light Source | LED |
| Detection range | 5 mm |
| Model | BGL 5 A-001-S49 |
| IP Rating | IP65 |
| Housing Material | Anodised Aluminium |
| Output type | PNP |
| Series | BGL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 200mA |
| DetectIon Type | Through Beam |
| Terminal type | Connector |
| Interface Type | IO-Link |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC 60947-5-2, CE |
| Materials Detected | Glass |
| Sensor Style | Fork |
| BALLUFF Through Beam Photoelectric Sensor, Fork Sensor, 10 mm, PNP, IP67Brand | BALLUFF |
Key Features
- This sensor features a robust anodised aluminium housing with IP65 protection rating.
- It operates with a supply voltage range of 10 to 30 VDC ensuring flexibility in industrial applications.
- The sensor utilizes a red LED light source optimized for glass detection.
- High switching frequency and adjustable sensitivity control provide reliable performance.
- The device offers reversible switching with PNP NO/NC output and an LED status display.
- It conforms to IEC 60947-5-2 and CE standards ensuring quality and safety compliance.
- Operating temperature range spans from -10°C to 60°C suitable for diverse environments.
- The sensor incorporates a connector terminal type facilitating easy installation.
Product Description
BALLUFF BGL 5 A-001-S49 Through Beam Photoelectric Fork Sensor is engineered for industrial, automation, and control gear applications requiring high accuracy in small component detection and detailed recognition. Featuring a compact fork style with a 5 mm detection range, the sensor excels in precise position sensing and presence detection tasks.
Built with an anodised aluminium housing and IP65 protection rating, it offers robustness against dust and water ingress, making it suitable for harsh industrial environments. The fork sensor employs a LED red light source optimized specifically for glass material detection, ensuring high reliability and repeatability.
The sensor supports a supply voltage range of 10 to 30 VDC and a maximum current rating of 200 mA. Its connector terminal type eases integration into existing systems. Additionally, the IO-Link interface enables seamless digital communication for process monitoring and control.
Key features include high switching frequency for rapid response, adjustable sensitivity control for versatile operations, and reversible PNP switching output with normally open and normally closed configurations. An LED display provides clear operational status feedback.
The sensor is certified to IEC 60947-5-2 and CE standards, delivering trusted safety and performance measures. Operating reliably within temperature extremes from -10°C to 60°C, it is ideal for varied industrial, manufacturing, and automation scenarios.
Manufactured in Germany, this BALLUFF BGL series sensor guarantees durability and precision. It is an excellent choice for applications in electrical automation, factory automation, and process control installations where precise, small-object detection is critical.
This sensor features a robust anodised aluminium housing with IP65 protection rating. It operates with a supply voltage range of 10 to 30 VDC ensuring flexibility in industrial applications. The sensor utilizes a red LED light source optimized for glass detection.
High switching frequency and adjustable sensitivity control provide reliable performance. The device offers reversible switching with PNP NO/NC output and an LED status display. It conforms to IEC 60947-5-2 and CE standards ensuring quality and safety compliance.
Operating temperature range spans from -10°C to 60°C suitable for diverse environments. The sensor incorporates a connector terminal type facilitating easy installation. IO-Link interface allows advanced communication capabilities.
Manufactured in Germany reflecting superior build quality. Explore more BALLUFF sensors and automation gear at EnvMart for enhanced industrial control solutions.
Explore more products in our Photoelectric Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 5 mm, making it suitable for precise position sensing and presence detection tasks.
This model features a PNP output type, allowing for reversible switching with normally open and normally closed configurations.
It operates with a supply voltage range of 10 to 30 VDC, providing flexibility for various industrial applications.
The maximum current rating for this photoelectric sensor is 200 mA.
This sensor has an IP65 protection rating, which ensures it is resistant to dust and water ingress.
It is optimized for detecting glass materials, ensuring high reliability in applications involving glass detection.
The operating temperature range spans from -10°C to 60°C, making it suitable for diverse environments.
Yes, the sensor incorporates an IO-Link interface, enabling seamless digital communication for process monitoring and control.
The sensor is constructed with anodised aluminium, providing robustness for industrial applications.
It conforms to IEC 60947-5-2 and CE standards, ensuring quality and safety compliance.
It utilizes a red LED light source optimized specifically for glass detection, enhancing its performance in relevant applications.
The sensor features a connector terminal type, which facilitates easy installation into existing systems.
