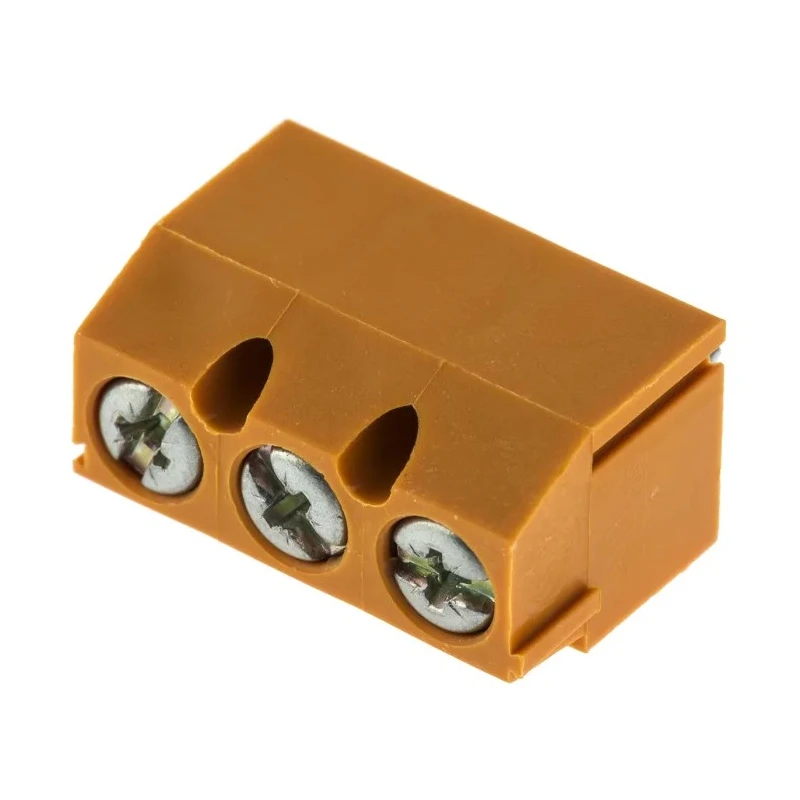

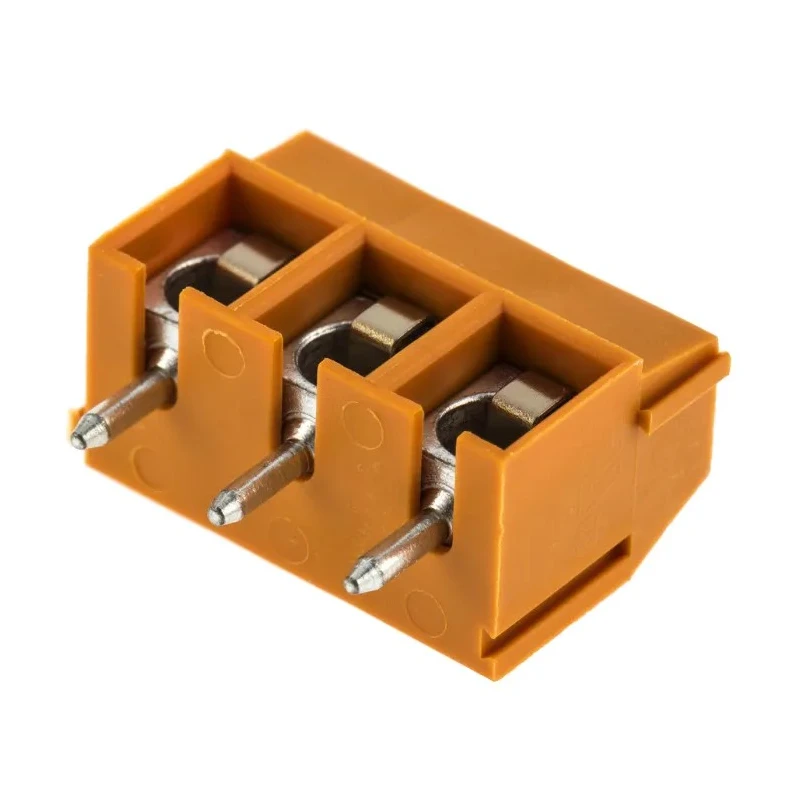

Weidmüller PM 5.08 Series 3-Contact PCB Terminal Block, 5.08 mm Pitch, 1 Row, 300V, 10A 1760500000

Weidmüller 1760500000 PM 5.08 Series 3-Contact PCB Terminal Block is a high-quality connector designed to provide reliable electrical connections on printed circuit boards. It features a 5.08 mm pitch and a single row configuration suitable for various electronic applications.

Constructed with a durable polyamide housing, this terminal block ensures electrical insulation and mechanical stability. It supports a wide range of wire sizes from 26 AWG (0.13 mm²) up to 14 AWG (2.5 mm²), connected through a robust pressure clamp, facilitating secure and efficient wire attachment.

The terminal block is designed with a straight orientation and male connector gender, offering versatile compatibility. Its compact dimensions (16.24 mm length, 8 mm width, and 10 mm depth) allow easy integration into electronic designs requiring efficient space utilization.

This PCB terminal block operates under a maximum voltage of 300 volts and a current rating of 10 amps, making it suitable for industrial, electrical, and automation control applications. The OMNIMATE PM series includes side interlocking features to enable secure stacking and modular system assembly.

The black UL 94 V-0 rated flame-retardant Werimd insulator ensures enhanced safety and compliance with industry standards, although no specific approvals are listed for this model. Typical use cases include electronic components manufacturing, power and control connectors, and industrial automation systems.

Designed with polyamide housing material for electrical insulation and durability. Supports wire sizes from 26 AWG (0.13mm²) to 14 AWG (2.5mm²) via pressure clamp connection. Compact dimensions: length 16.24mm, width 8mm, depth 10mm for easy PCB integration.

Features a straight orientation and male connector gender for versatile applications. Operates safely up to 300 volts and 10 amps current rating. Omnimamate PM series with side interlocking for secure stacking. Black UL 94 V-0 Werimd insulator ensures flame retardant performance.

Widely used in electronic components, power connectors, and industrial automation systems. Explore more Terminal Blocks and connectors in the Electronics & Electricals category at EnvMart for comprehensive interconnection solutions.
