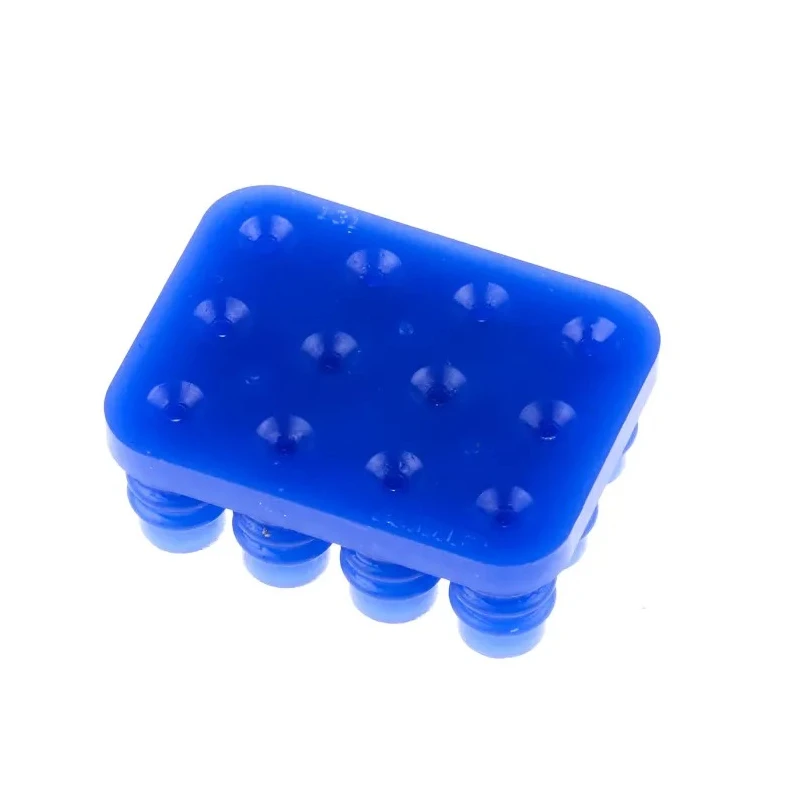

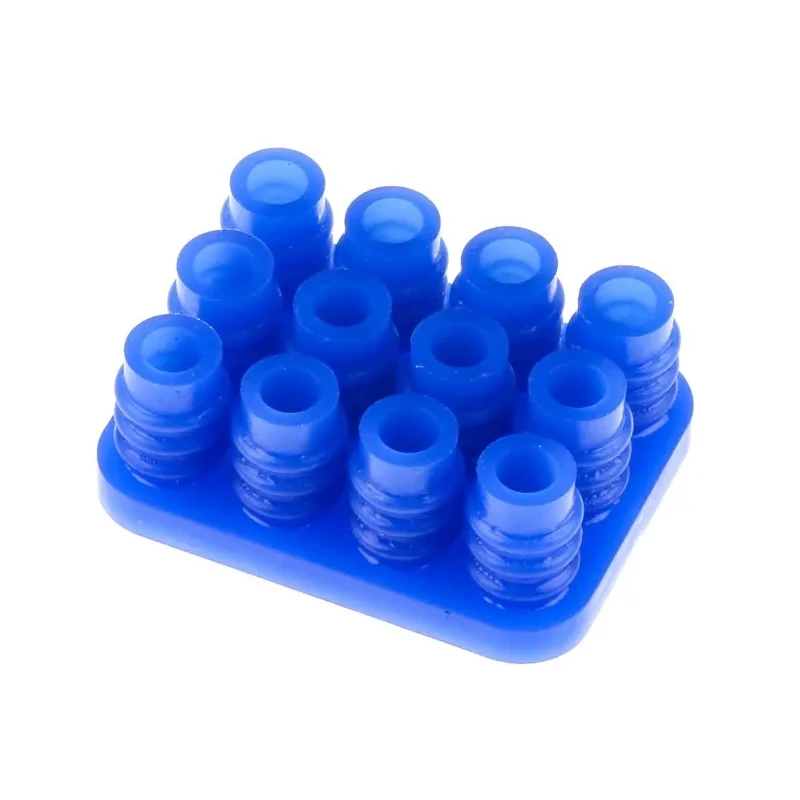

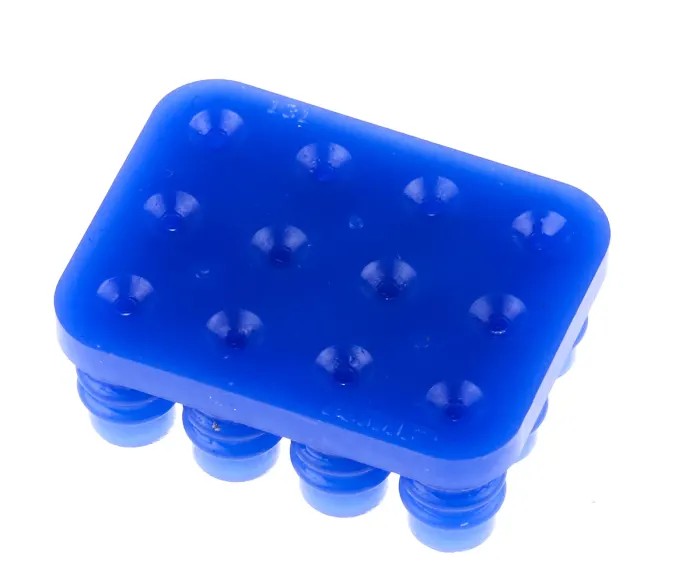

TE Connectivity MATE-N-LOK Series Connector Seal, 16 AWG Min Crimp, 24 AWG Max, Blue, Crimp Termination 794280-1

TE Connectivity 794280-1 Connector Seal is a high-quality wire seal designed specifically for the MATE-N-LOK series connectors. It supports wire sizes ranging from 16 AWG minimum to 24 AWG maximum with secure crimp termination. This connector seal is engineered to deliver reliable current carrying capacity of 10A and ensures long-term durability with copper alloy pre-tin plated contacts and a combination of gold, phosphor, tin, brass, and bronze plating which enhances conductivity while resisting corrosion.

The product operates efficiently within a temperature range of -30°C to 105°C, making it suitable for a wide variety of industrial uses including electronics manufacturing, power connectors in automotive and industrial machinery, and other HVAC or commercial applications. The blue coloration aids in visual wiring identification, facilitating assembly and maintenance.

This connector seal is intended to make existing universal MATE-N-LOK connectors essentially splash proof or immersion proof, requiring two wire seals and one interface seal per connector. For wire to board connections, a closed bottom header is necessary. To achieve effective sealing, one interface seal and two wire seals are used per connector. Compatible crimp contacts must be used alongside these seals for optimal performance.

Compatible with MATE-N-LOK series housings. Supports wire sizes from 16 AWG minimum to 24 AWG maximum. Current rating of 10A ensures reliable electrical performance. Constructed with copper alloy pre-tin plated contacts for durability.

Features gold, phosphor, tin, brass, and bronze plating for enhanced conductivity. Operating temperature range from -30°C to 105°C allows broad environmental use. Termination type is crimp ensuring firm and secure connections.

Blue color coding for easy identification in assemblies. RoHS compliant to meet environmental standards. Ideal for industrial, electronic, automotive, HVAC, and manufacturing applications.

This connector seal is part of the TE Connectivity Universal MATE-N-LOK range, available in 2 to 15 way versions. It offers an essential component for reliable and sealed electrical connections in advanced electronic and power distribution systems. Explore more Connector Seals and accessories in EnvMart's Power Connectors category for your industrial and commercial needs.
