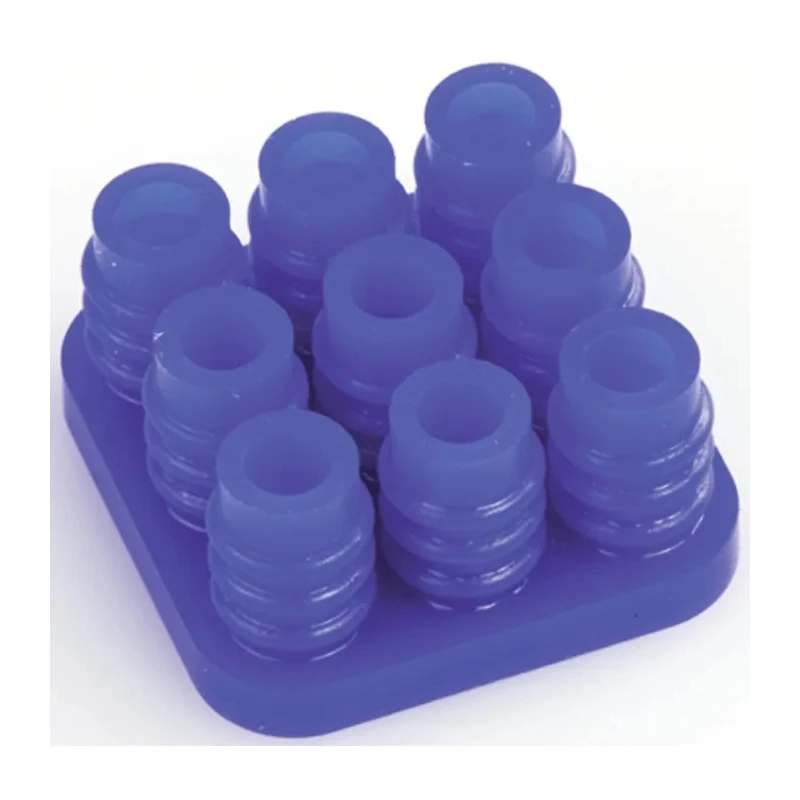

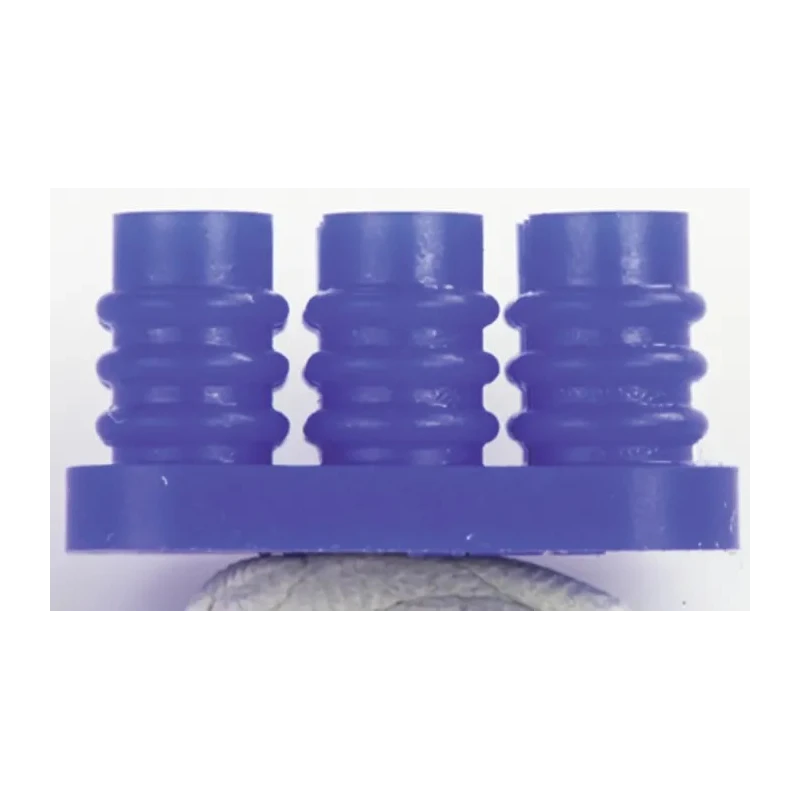

TE Connectivity MATE-N-LOK Series Connector Seal 10A Current, 16-24 AWG Wire Size, Blue 794278-1

TE Connectivity 794278-1 MATE-N-LOK Series Connector Seal is engineered to offer reliable splash proof and immersion proof sealing for universal Mate-N-Lok connectors used in electrical and electronic assemblies. Rated for a current capacity of 10 amperes, this connector seal supports wire gauges ranging from 16 AWG minimum to 24 AWG maximum, allowing versatile application across various wiring needs.

The seal is fabricated using copper alloy pre tin plated materials that provide excellent electrical conductivity and corrosion resistance, ensuring long-term performance. The blue color of the seal assists technicians and engineers in quick and accurate identification among wiring harness components.

For effective sealing, the MATE-N-LOK series requires two wire seals and one interface seal per connector pair, with additional seals necessary for closed bottom header wire-to-board applications. This model requires crimp contacts with stock numbers 366-4376 or 366-4382 to ensure compatibility with the seal system.

The product is RoHS compliant, adhering to environmental and safety standards by limiting hazardous materials. Operating temperature ranges from -30°C to 105°C make these seals suitable for a wide range of industrial, electronic, automotive, and power connector applications.

Available in multiple configurations from 2 to 15 way versions, the connector seal accommodates diverse industrial designs and assembly sizes, delivering reliable sealing performance and protection.

This TEC MATE-N-LOK connector seal product is essential for electrical engineers, manufacturers, and maintenance personnel involved in industrial automation, automotive wiring, power distribution, and electronic device manufacturing.

Designed to seal universal Mate-N-Lok connectors effectively during mated and unmated states. Compatible with crimp contacts stock numbers 366-4376 and 366-4382 for secure connections. Constructed with copper alloy pre tin plated contact material for enhanced conductivity and durability.

Operates reliably between -30°C to 105°C ensuring suitability for diverse environments. Blue color coding aids in easy identification in assemblies and wiring harnesses. Complies with RoHS standards for environmental safety and restriction of hazardous substances.

Includes two wire seals and one interface seal per connector mating application for effective sealing. Available in configurations supporting 2 to 15 way versions to suit various connector sizes. Explore the Electronics & Electricals category at EnvMart for a wide range of Connector Seals and related components from leading brands like TE Connectivity.
