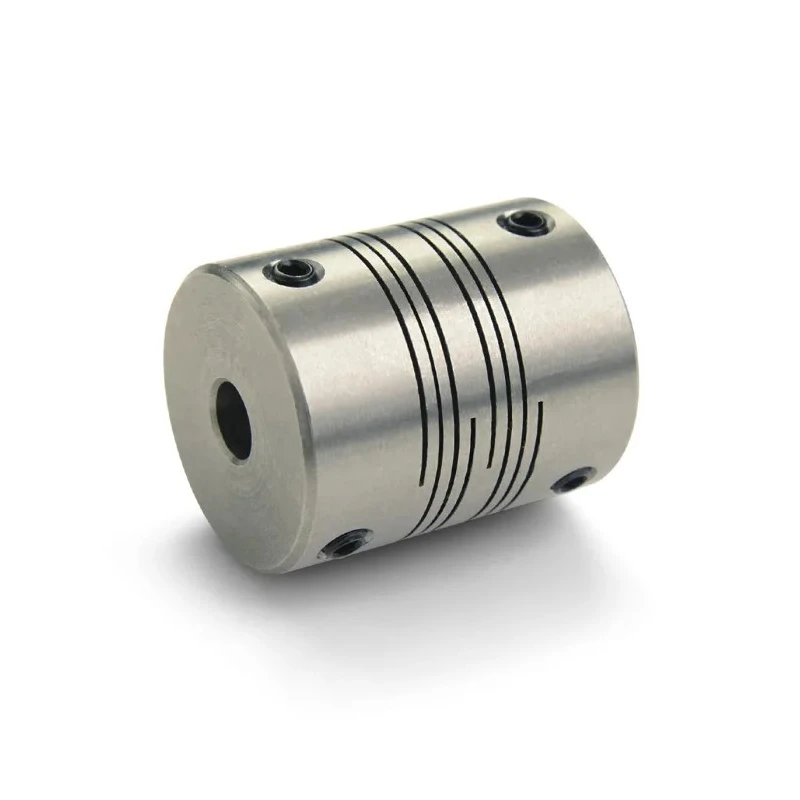

Ruland Stainless Steel Flexible Shaft Coupler 25 mm OD 10 mm Bore 24 mm Length, Screw Style MWS25-10-10-SS
Specifications
| Country of Origin | United States |
|---|---|
| Screw Size | M4 |
| Brand | Ruland |
| Material | Stainless Steel |
| Length | 24mm |
| Model | MWS25-10-10-SS |
| Maximum Speed | 6000rpm |
| Number of Beams | 4 |
| Series | MW |
| Outside diameter | 25mm |
| Maximum Operating Temperature | 176°C |
| Minimum Operating Temperature | -40°C |
| Torque Rating | 3.1Nm |
| Standards/Approvals | RoHS3, REACH, DIN 912 12.9 |
| Bore Size A | 10mm |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.38mm |
| Misalignment - Axial | 0.25mm |
| Ruland, 25.4 mm OD 10 mm, 31.8 mm Length 10 mm CouplerBrand | Ruland |
| RS PRO, 25 mm OD 10 mm, 24 mm Length 10 mm Flexible Beam CouplingRS Stock No. | 132-164Brand: RS PRO |
Key Features
- Constructed from durable stainless steel for corrosion resistance and strength.
- Features a 25 mm outside diameter and 10 mm bore size on both ends.
- 24 mm total length with screw style fixing using M4 screws.
- Capable of operating at speeds up to 6000 rpm with a torque rating of 3.1 Nm.
- Allows angular misalignment up to 3 degrees and parallel misalignment of 0.38 mm.
- Designed for temperatures ranging from -40°C to 176°C for diverse industrial environments.
- One-piece torsionally rigid construction eliminates backlash and potential mechanical joint failures.
- Ideal for applications including encoders, stepper motors, robotics, servo systems, pumps, valves, and fans.
Product Description
The Ruland MWS25-10-10-SS stainless steel flexible shaft coupler is engineered for demanding mechanical power transmission applications requiring high speed, zero backlash, and reliability. Made from robust stainless steel, this coupling supports a 25 mm outside diameter and a 10 mm bore on both ends, with a compact 24 mm length. Its screw style fixing via M4 screws securely fastens shafts, making it suitable for precision drive systems.
This coupling enables maximum operating speeds of 6000 rpm and can transmit torque up to 3.1 Nm. It tolerates an angular misalignment of up to 3°, parallel misalignment of 0.38 mm, and axial misalignment of 0.25 mm, thus accommodating minor shaft positioning variances without compromising performance.
The product operates effectively across a temperature range of -40°C to 176°C, making it suitable for varied industrial environments including manufacturing, robotics, measurement instruments, pumps, valves, and HVAC systems. Its one-piece torsionally rigid design eliminates mechanical joints and potential failure points, providing consistent, maintenance-free performance without lubrication requirements.
Certified to RoHS3, REACH, and DIN 912 12.9 standards, the coupling assures compliance with global environmental and mechanical norms. The coupling’s four-beam design boosts flexibility and adaptability under dynamic conditions.
Constructed from corrosion-resistant stainless steel. Enables high-speed operation up to 6000 rpm. Zero backlash design ensures precise torque transmission. Tolerates up to 3° angular misalignment. Suitable for encoders, stepper motors, robotics, servo systems, and pumps.
Maintenance-free with no lubrication required. Compliant with RoHS3, REACH, and DIN 912 12.9 standards. Robust screw style fixing using M4 socket head cap screws. Manufactured in the United States under stringent quality controls.
Ideal for industrial, laboratory, manufacturing, and fluid power applications.
This coupling is a preferred choice for engineers and technicians seeking reliable shaft connection solutions in precision mechanical power transmission. Explore more Ruland couplings and related products in the Mechanical Power Transmission Coupler category on EnvMart for complete application support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating speed of this flexible shaft coupler is 6000 rpm.
This model has a torque rating of 3.1 Nm.
The coupling features a 25 mm outside diameter, a 10 mm bore size on both ends, and a total length of 24 mm.
It operates effectively within a temperature range of -40°C to 176°C.
This coupler can accommodate an angular misalignment of up to 3 degrees.
It uses a screw style fixing with M4 screws to securely fasten shafts.
It is constructed from stainless steel, providing corrosion resistance and strength.
The coupler is certified to RoHS3, REACH, and DIN 912 12.9 standards.
It is ideal for applications including encoders, stepper motors, robotics, servo systems, pumps, valves, and fans.
The maximum parallel misalignment tolerated by this coupler is 0.38 mm.
No, this model is maintenance-free and does not require lubrication.
This flexible shaft coupler is manufactured in the United States under stringent quality controls.
