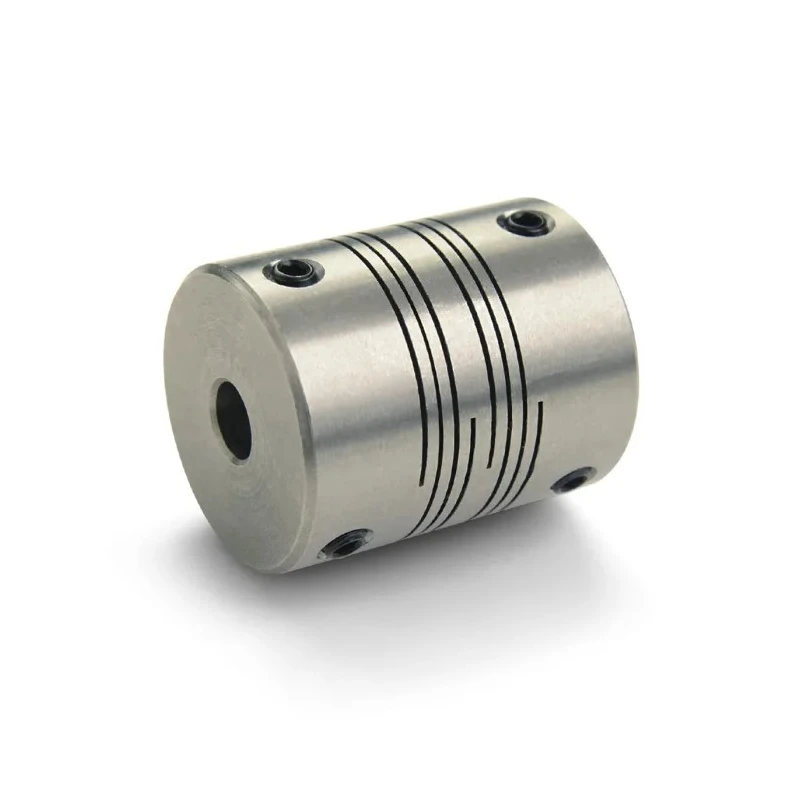

Ruland Stainless Steel Flexible Coupler 30 mm OD 10 mm Bore Size 30 mm Length Screw Style MWS30-10-10-SS

Free Delivery in India | Lowest Global Shipping Charges

Ruland Stainless Steel Flexible Coupler 30 mm OD 10 mm Bore Size 30 mm Length Screw Style MWS30-10-10-SS

Name: Ruland Stainless Steel Flexible Coupler 30 mm OD 10 mm Bore Size 30 mm Length Screw Style MWS30-10-10-SS
Brand: Ruland
SKU: 327118
Price: 159.25 USD
Availability: InStock



Category Mechanical Power Transmission Coupler Brand Ruland Condition New

Specifications

Country of Origin	United States
Screw Size	M5
Brand	Ruland
Material	Stainless Steel
Length	30mm
Model	MWS30-10-10-SS
Maximum Speed	6000rpm
Number of Beams	4
Series	MW
Outside diameter	30mm
Maximum Operating Temperature	176°C
Minimum Operating Temperature	-40°C
Torque Rating	6.9Nm
Standards/Approvals	DIN 912 12.9, REACH, RoHS3
Bore Size A	10mm
Misalignment - Angular	3°
Misalignment - Parallel	0.38mm
Misalignment - Axial	0.25mm
RS PRO, 30 mm OD 10 mm, 30 mm Length 10 mm Flexible Beam CouplingRS Stock No.	132-165Brand: RS PRO

Key Features

Constructed from stainless steel for durability and corrosion resistance.
Features a 30 mm length suitable for compact installations.
Screw style fixing ensures secure attachment with M5 screws.
Zero backlash and torsionally rigid one-piece design for precise motion control.
Operates reliably up to 6000 rpm with a torque rating of 6.9 Nm.
Accommodates up to 3° angular misalignment, 0.38 mm parallel, and 0.25 mm axial misalignment.
Suitable for use in encoders, stepper motors, robotics, servo systems, pumps, valves, and fans.
Withstands operating temperatures from -40°C to 176°C.

Product Description

Ruland MWS30-10-10-SS stainless steel flexible coupler is engineered for demanding mechanical power transmission applications where high speed, torque capacity, and precision alignment are required. Featuring a durable stainless steel construction, this coupler boasts a 30 mm outer diameter and a 10 mm bore size on both ends with a total length of 30 mm. Its screw style fixing with M5 screws provides secure shaft attachment and ease of installation.

The torsionally rigid, one-piece design eliminates mechanical joints, reducing failure points and backlash. It can operate continuously at speeds up to 6000 rpm and handle torque up to 6.9 Nm, making it ideal for use in high-performance encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, and fans.

This coupling accommodates misalignments up to 3° angular, 0.38 mm parallel, and 0.25 mm axial, facilitating smooth and reliable power transmission despite minor shaft misalignments. Engineered to operate reliably in a temperature range from -40°C to 176°C, it meets stringent DIN 912 12.9 bolt standards and complies with REACH and RoHS3 environmental and safety regulations.

Manufactured in the United States, this Ruland flexible shaft coupling is designed to deliver long-lasting performance and exceptional durability in industrial, manufacturing, robotics, and automation environments.

Constructed from stainless steel for durability and corrosion resistance. Features 30 mm outer diameter and 10 mm bore sizes with a 30 mm length. Screw style fixing with M5 screws ensures secure attachment. Torsionally rigid one-piece construction eliminates backlash.

Maximum operating speed of 6000 rpm and torque rating of 6.9 Nm. Supports angular, parallel, and axial shaft misalignments. Operates across a temperature range of -40°C to 176°C. Conforms to DIN 912 12.9, REACH, and RoHS3 standards.

Designed for use with encoders, stepper motors, robotics, servo systems, pumps, valves, and fans. Explore the range of Ruland mechanical power transmission components and couplers on EnvMart for reliable industrial equipment solutions.
