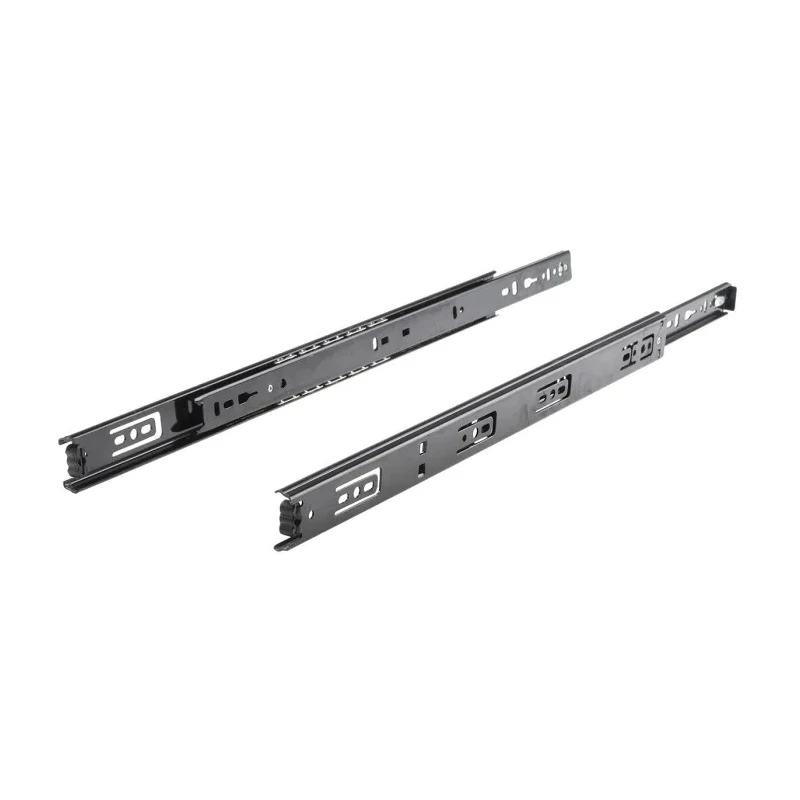

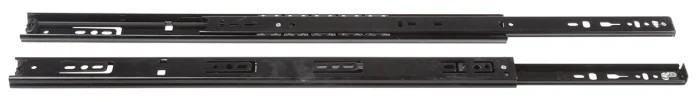

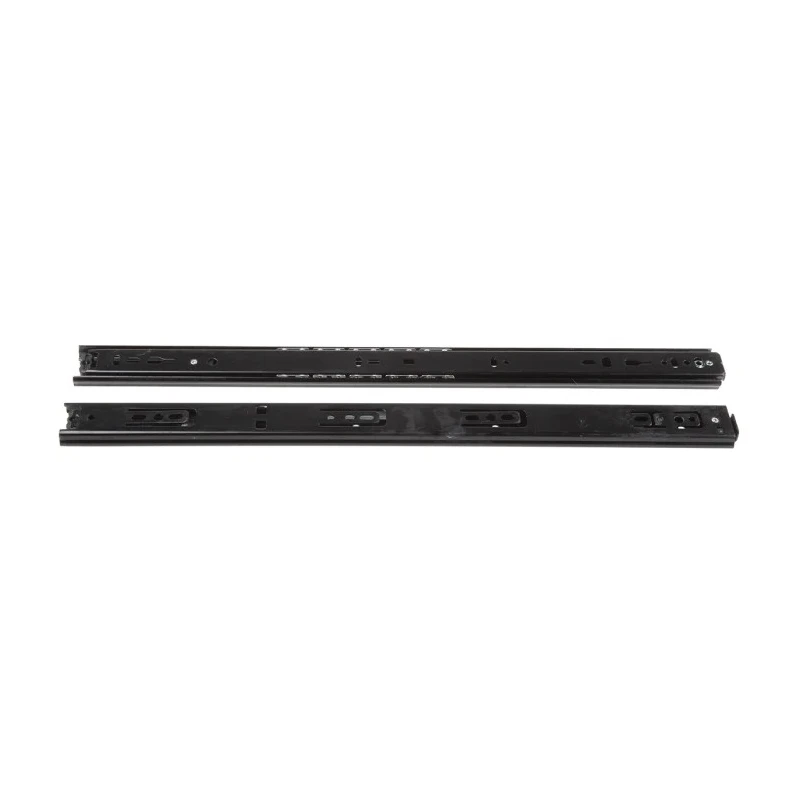

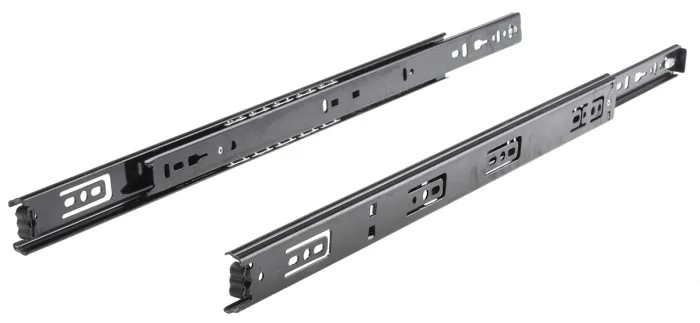

Accuride Steel Drawer Slide 45kg Load 450 mm DB2132-0045

Accuride DB2132-0045 steel drawer slide 450 mm is a durable, high-performance drawer runner designed for light duty applications requiring reliable 45 kg load support. Manufactured from high-quality black zinc plated steel, this drawer slide ensures long-lasting corrosion resistance and strength.

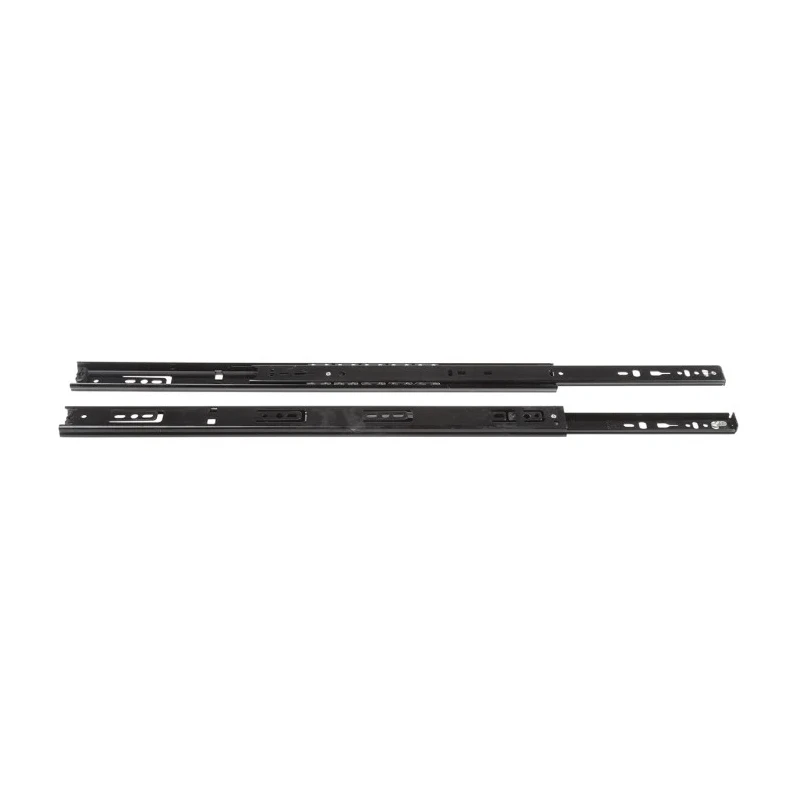

The 331 mm travel length provides 75% extension capability, enabling easy access to drawer contents. The integrated ball bearing mechanism ensures smooth and quiet operation, supplemented by a self-cleaning ball retainer that removes particles between bearings, maintaining optimal function throughout its extensive service life. The included lubricant is designed to last the full lifespan of the product, though high-pressure grease can be applied if cleaning is necessary.

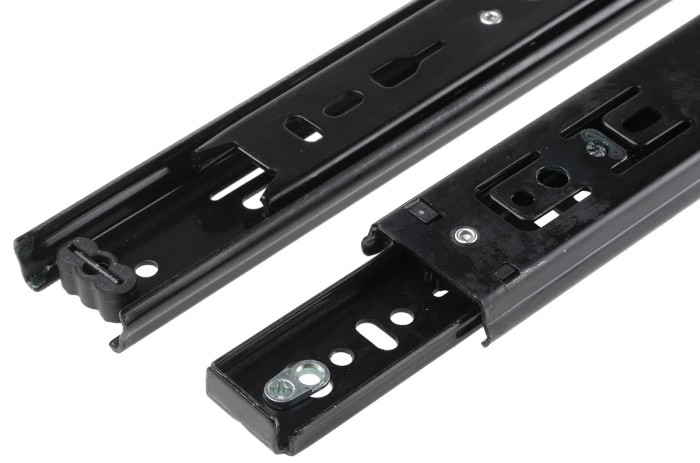

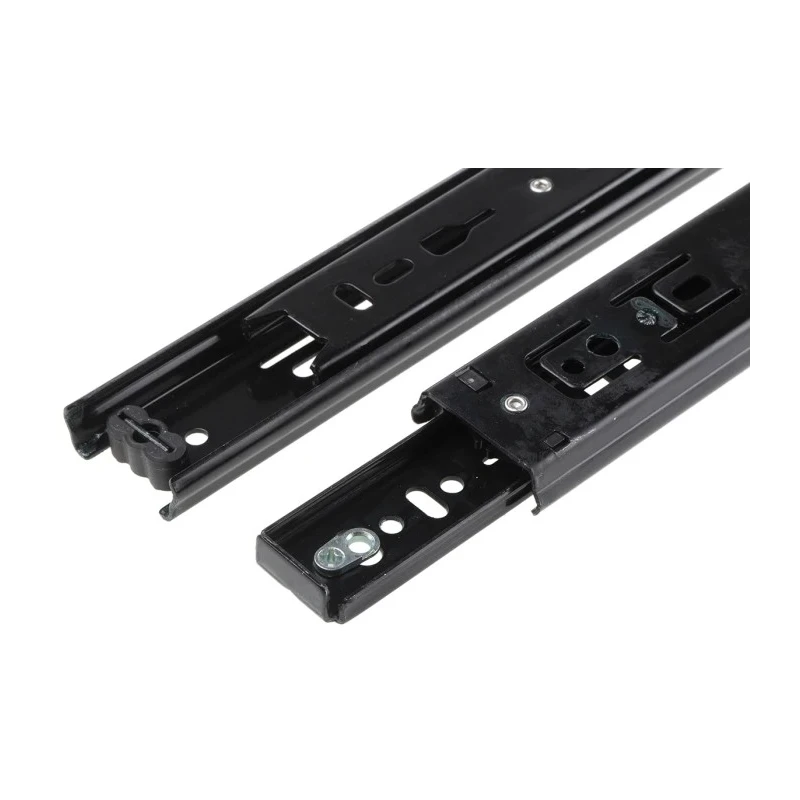

Practical features include a front disconnect lever for quick drawer removal, a hold-in detent to keep drawers securely closed under normal conditions, and a cam adjuster for a 3.2 mm front alignment to facilitate precise installation.

This product is ideal for indoor environments such as industrial workstations, tool cabinets, storage drawers, point-of-purchase displays, and desk pedestals. It should be protected from excessive moisture, dirt, corrosion, and chemical exposure to maintain performance and durability.

Installation is straightforward using M4 screws, 4 mm wood screws, or 6 mm Euro screws. Optional mounting brackets compatible with this series are available separately for enhanced assembly flexibility.

Made from robust black zinc plated steel for longevity and corrosion resistance. Features a smooth and quiet ball bearing mechanism for effortless drawer operation. Supports up to 50 kg with 10,000 cycles and 35 kg with 80,000 cycles for varied durability needs.

Includes a self-cleaning ball retainer to prevent debris buildup and maintain performance. Equipped with front disconnect for easy drawer removal. Hold-in detent feature secures drawer firmly closed until pressure is applied.

Cam adjustment allows 3.2 mm alignment on drawer front for precise fitting. Ideal for indoor use in storage drawers, tool cabinets, workstations, and retail displays. Installation compatible with M4, 4 mm wood screws, or 6 mm Euro screws.
