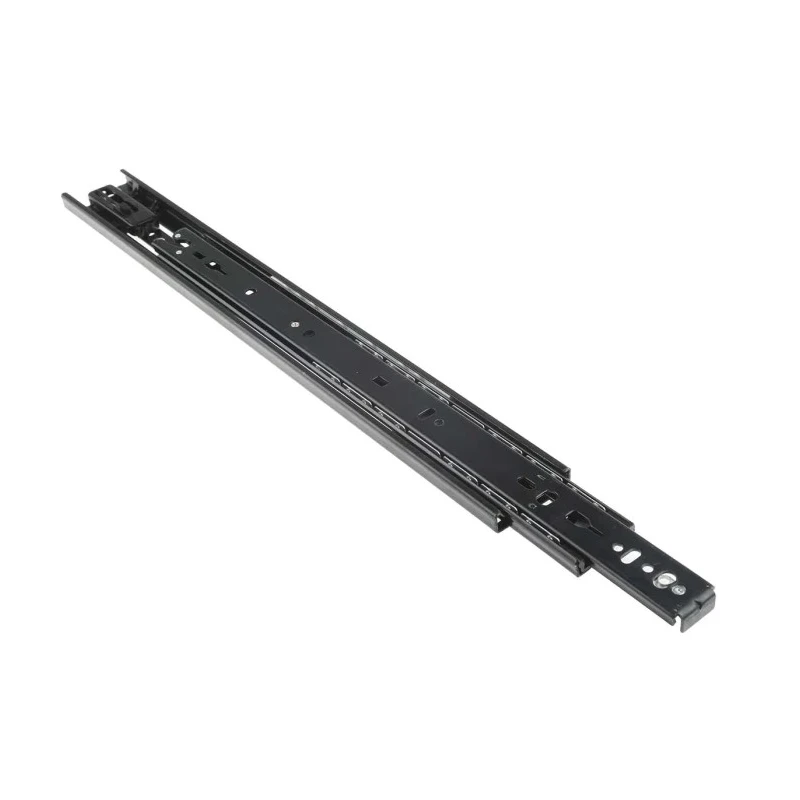

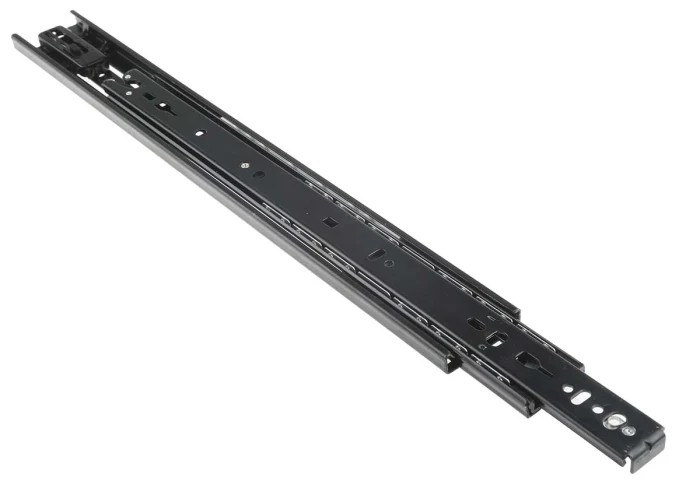

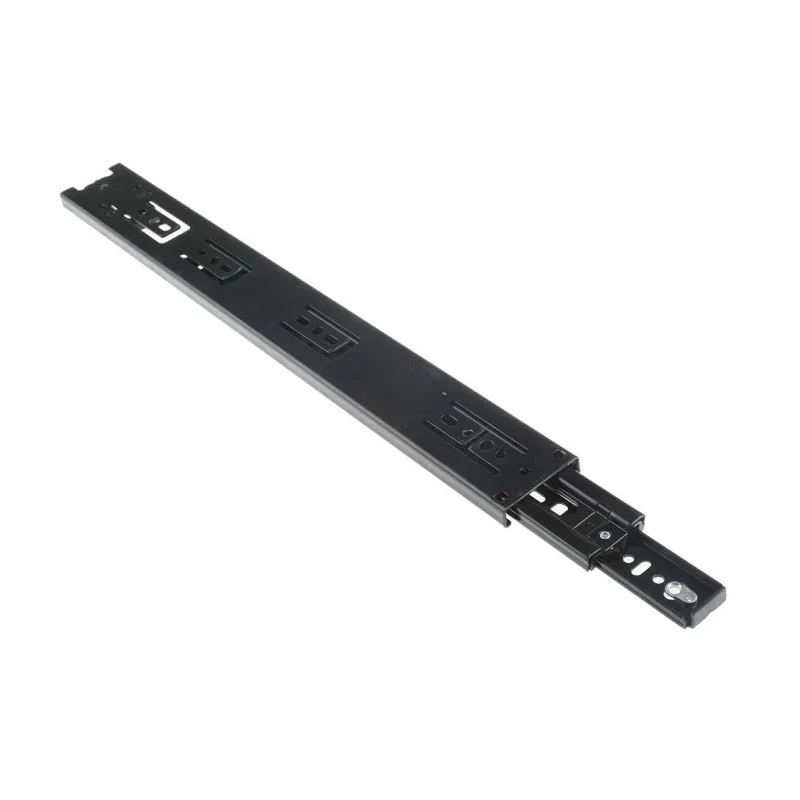

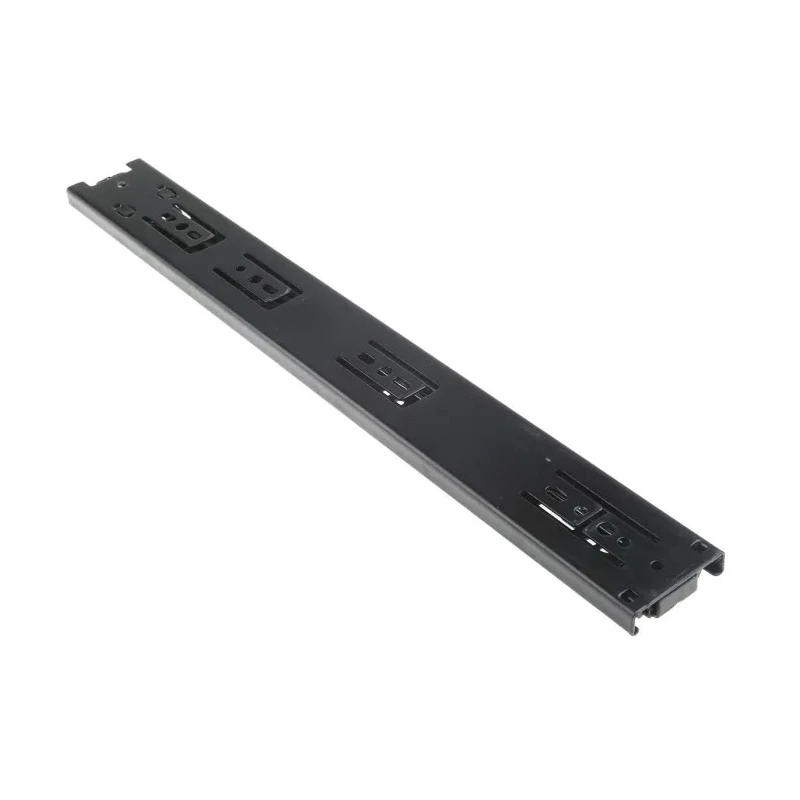

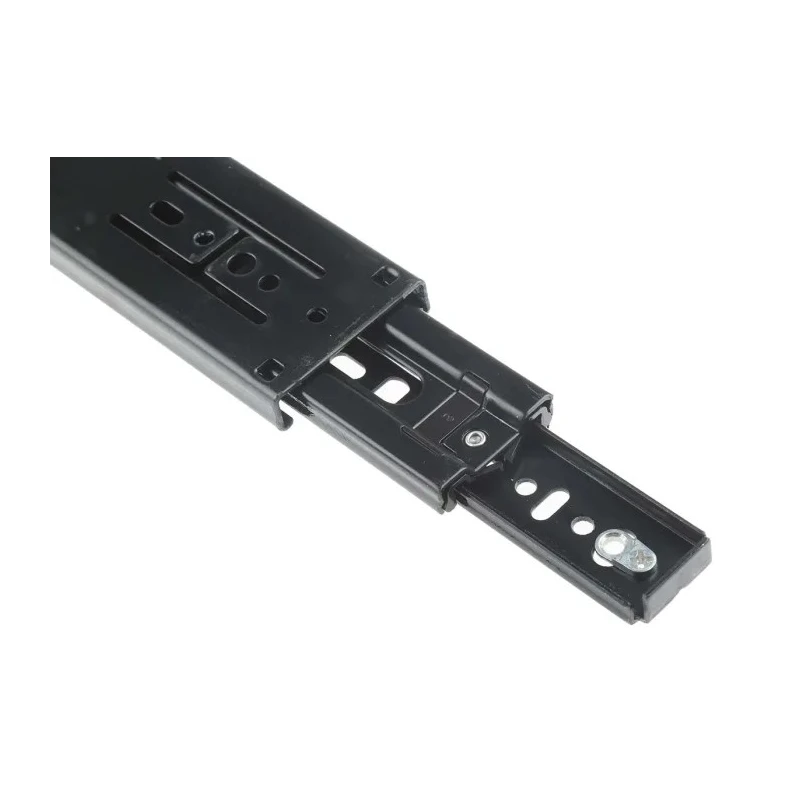

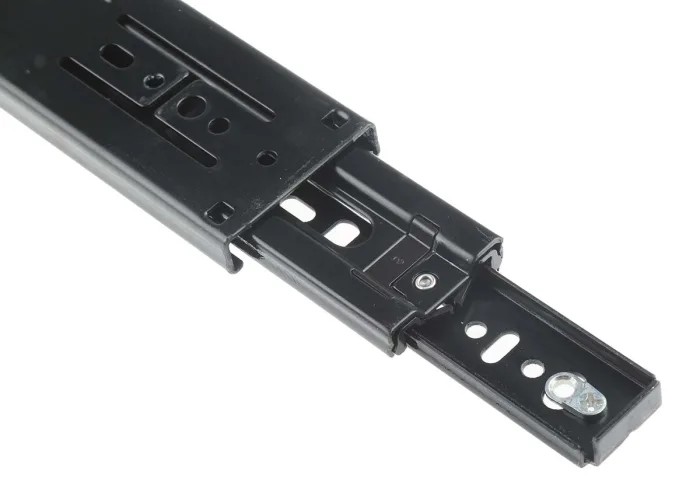

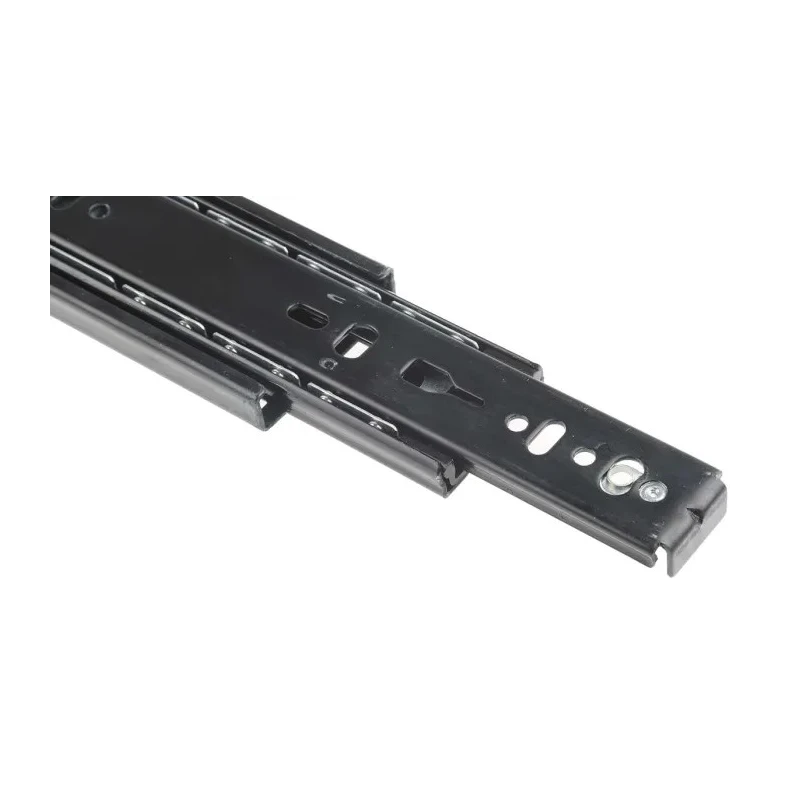

Accuride Self-Closing Steel Drawer Slide Zinc Plated 50 kg Load 400mm DB 3832-0040SC
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Accuride |
| Material | Steel |
| Model | DB 3832-0040SC |
| Finish | Zinc Plated |
| Series | DB3832 |
| Maximum Load | 50kg |
| Closing Type | Self-Closing |
| Overall height | 45.7mm |
| Closed Length | 400mm |
| Travel Length | 406mm |
Key Features
- Constructed from durable zinc plated steel for longevity and corrosion resistance.
- Self-closing mechanism ensures drawers close securely with 14 to 27 N closing force.
- Full 100% extension capability with 406 mm travel length for easy access.
- Supports a maximum load of 50 kg with up to 10,000 opening cycles.
- Features self-cleaning ball bearing retainer for smooth, quiet operation.
- Front disconnect allows easy drawer removal via a lever mechanism.
- Hold-in detent feature secures drawer in closed position until pressure is applied.
- Cam adjuster enables 3.2 mm front alignment for precision fitting.
Product Description
Accuride DB 3832-0040SC self-closing steel drawer slide features zinc plated steel construction and a robust self-closing mechanism designed for industrial and commercial storage cabinetry. With a 400 mm closed length and a travel length of 406 mm, this drawer slide offers full 100% extension of drawers, facilitating easy access and operation. The slide supports a maximum load of 50 kg with verified durability for up to 10,000 opening and closing cycles, ensuring long-lasting performance.
These drawer runners incorporate a self-cleaning ball bearing retainer that maintains smooth and quiet sliding action while protecting the raceways from foreign particles. The self-closing spring mechanism returns the drawer fully into the cabinet, preventing bouncing or partial closure.
Additional features include a front disconnect lever for quick and convenient drawer removal, and a hold-in detent system which keeps the drawer firmly closed until deliberate force is applied, preventing accidental openings. A cam adjustment of 3.2 mm on the front enables precise alignment during installation to achieve optimal fit and appearance.
Installation is straightforward requiring M4 screws, 4 mm wood screws, or 6 mm Euro screws. Optional brackets are available separately for specialized mounting needs. This drawer slide is designed for indoor use in environments protected from excessive moisture, dirt, corrosion, and chemical fumes. Typical applications include cabinetry in industrial, laboratory, commercial, and general purpose storage settings.
Constructed from durable zinc plated steel for corrosion resistance and long life. Self-closing feature ensures secure drawer closure with minimal user effort. Ball bearing mechanism provides smooth and quiet operation. Full extension allows complete drawer access optimizing storage usability.
Front disconnect lever for easy drawer removal and maintenance. Hold-in detent maintains drawer closure until intentional opening force is applied. Cam adjustment facilitates precise front panel alignment. Supports up to 50 kg load with high cycle durability.
Ideal for cabinetry in industrial, commercial, and laboratory applications. Explore more quality Drawer Runners and Material Handling Equipment at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Accuride DB 3832-0040SC supports a maximum load of 50 kg.
The closed length of this drawer slide is 400 mm.
It offers a travel length of 406 mm, allowing for full 100% extension of drawers.
This model features a self-closing mechanism that ensures drawers close securely with a closing force of 14 to 27 N.
It is constructed from steel with a zinc plated finish for corrosion resistance.
The overall height of the Accuride DB 3832-0040SC is 45.7 mm.
The front disconnect lever allows for easy drawer removal by using a simple lever mechanism.
This model is designed for durability with a verified performance of up to 10,000 opening and closing cycles.
It features a cam adjuster that enables 3.2 mm of front alignment for precise fitting during installation.
It is designed for indoor use in environments protected from excessive moisture, dirt, corrosion, and chemical fumes.
Installation requires M4 screws, 4 mm wood screws, or 6 mm Euro screws.
