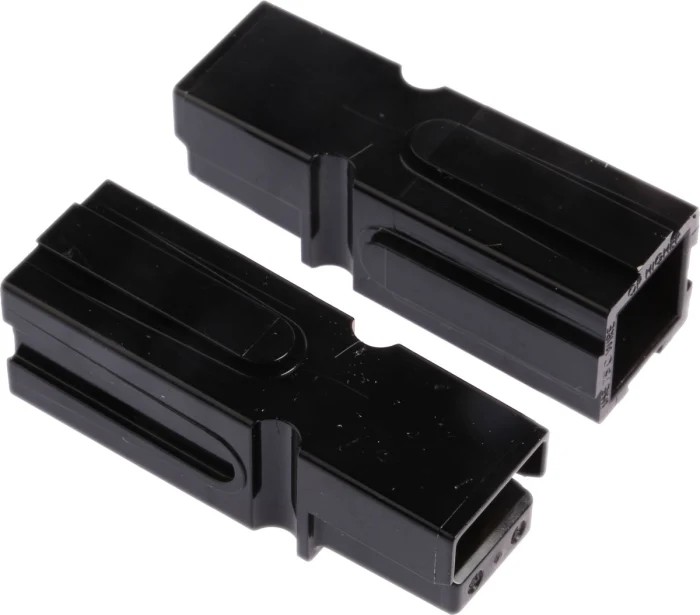

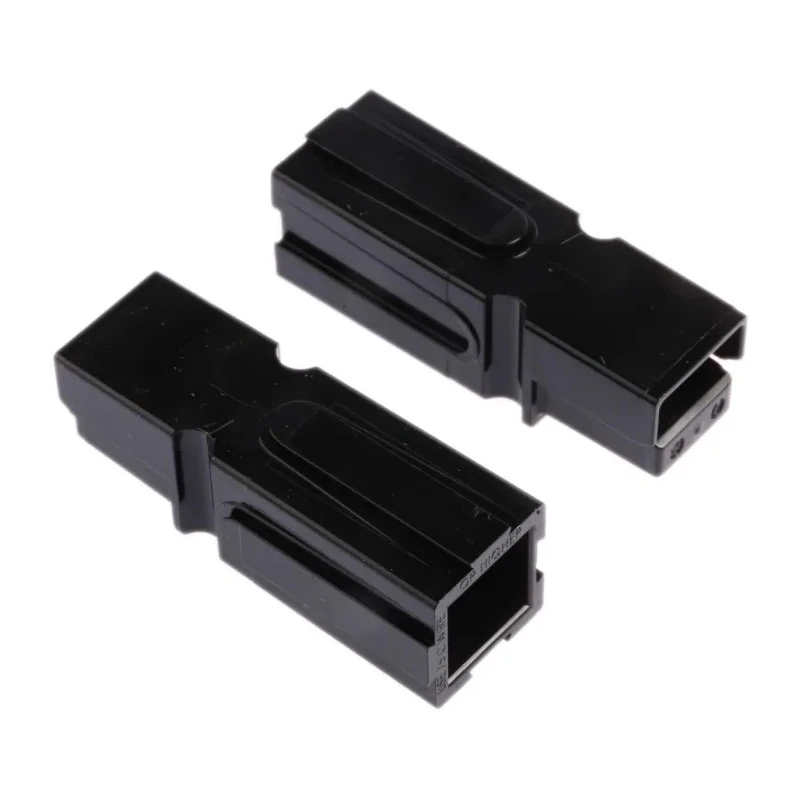

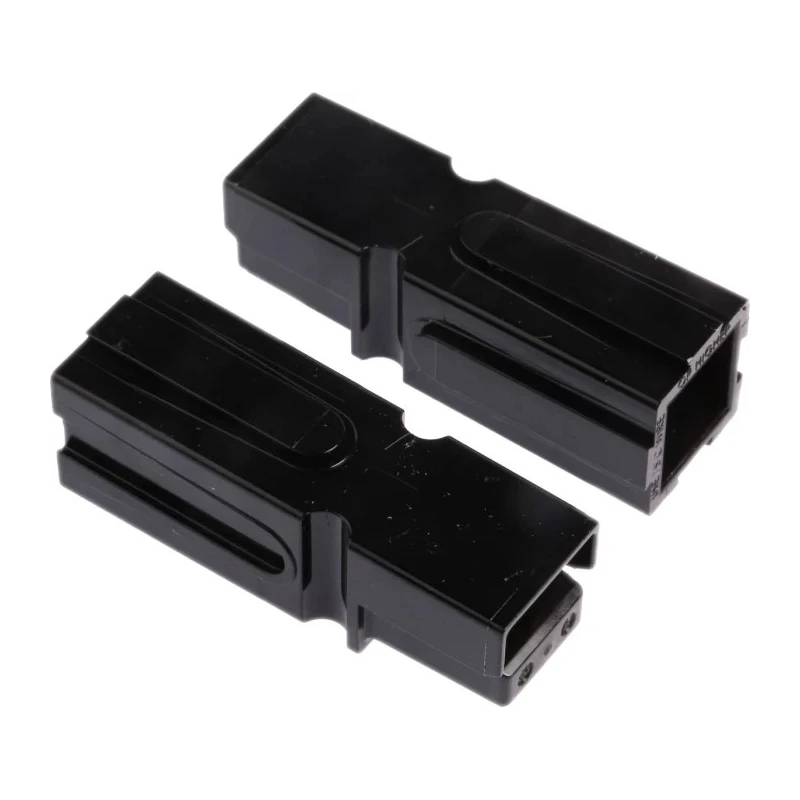

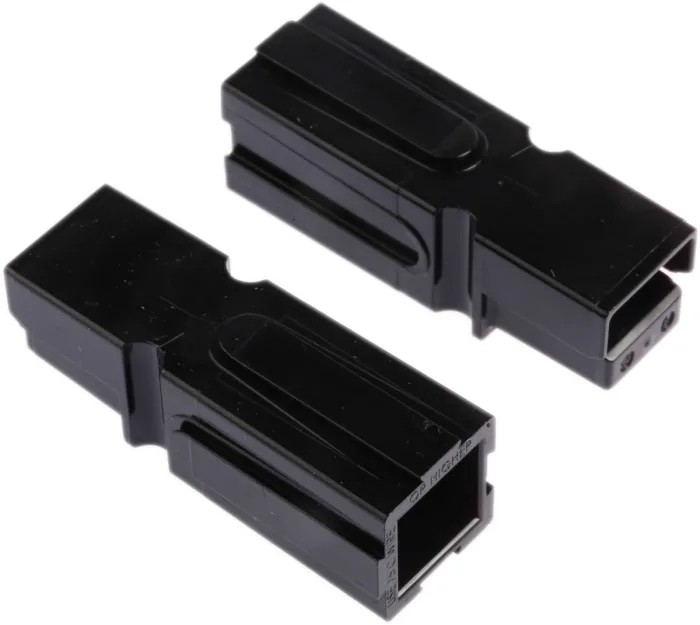

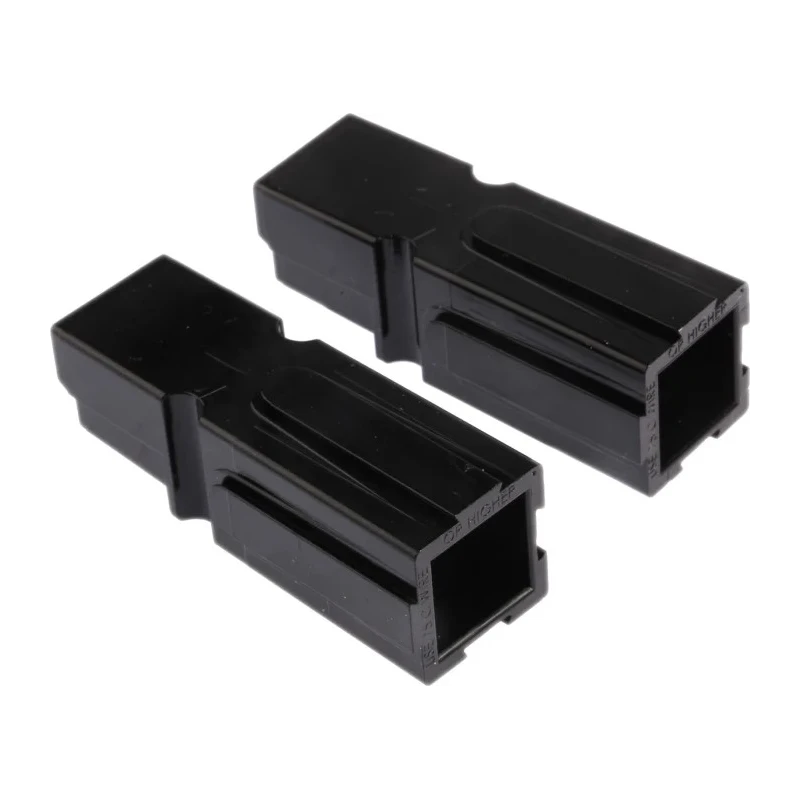

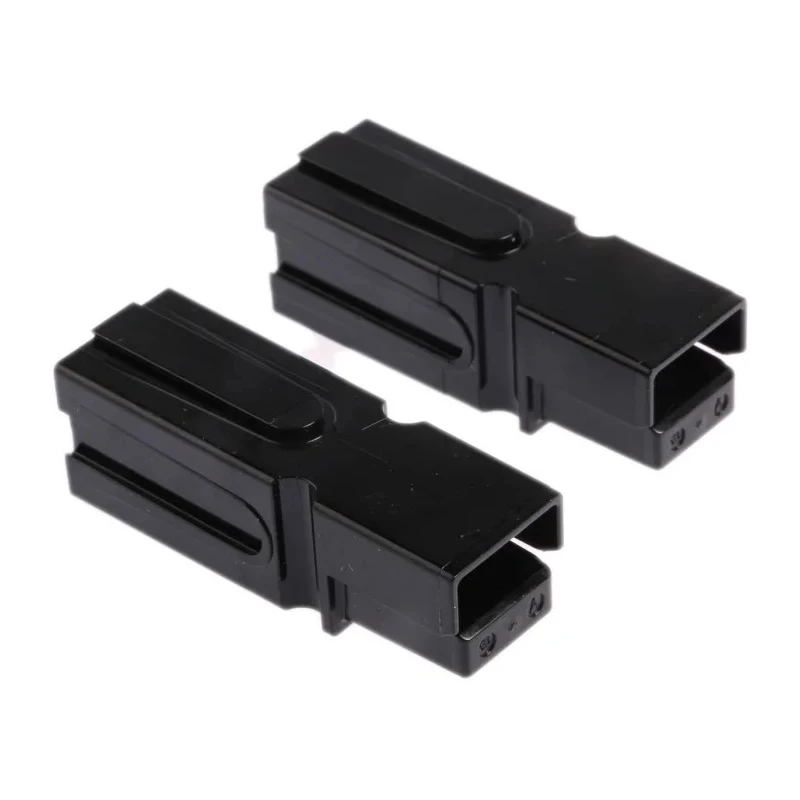

Anderson Power Products E Range Heavy Duty Power Connector Housing Polycarbonate Body IP20 5916G4
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Anderson Power Products |
| Body Material | Polycarbonate |
| Model | 5916G4 |
| IP Rating | IP20 |
| Mount Type | Cable |
| Series | E |
| Sub Type | Connector Housing |
| For Use With | PP75 |
| Cable Entry Angle | Bottom |
Key Features
- Part of the E Range series designed for heavy duty power connections.
- Constructed from durable polycarbonate for robust performance.
- Features a cable mount type with a bottom cable entry angle.
- Single pole modules join with dovetail for custom configurations.
- Silver plated copper contacts available separately for high current ratings.
- Suitable for process control, panel building, and power applications.
- Modules are genderless for design flexibility and easy assembly.
- Rated IP20 for protection against solid objects and low moisture.
Product Description
Anderson Power Products 5916G4 Heavy Duty Power Connector Housing from the E Range series features a polycarbonate body and an IP20 ingress protection rating, making it resilient for various industrial applications.
This connector housing supports a cable mount type and has a bottom cable entry angle, facilitating easy integration in power systems. Designed with single pole modules that interlock via dovetail mechanisms, it allows for the assembly of custom configurations tailored to specific power connection needs.
The module halves are genderless, ensuring design flexibility and ease of assembly, and may be permanently secured using cyanoacrylate adhesives if required.
The housing is compatible for use with PP75 series contacts, which include silver plated copper contacts rated at 30A, 75A, and 120A, suited for high current power connections in process control, panel building, and other demanding applications.
This product is UL Listed (E26226) and CSA Certified (LR 25154) for safety and reliability. Note that although the housing is marked PP75 with a 75A rating, it has been re-tested and rated for 120A per updated datasheets.
Part of the E Range designed for Heavy Duty Power Connector applications. Body material is polycarbonate providing strong electrical insulation and durability. IP20 rating offers protection against solid foreign objects greater than 12mm.
Bottom cable entry angle aids in cable management and installation. Compatible with PP75 series modules and contacts for high current ratings. Applications include industrial, manufacturing, and process control power connections.
UL and CSA certifications ensure compliance with North American safety standards.
This heavy duty connector housing is an essential component for reliable and flexible power interconnections in demanding industrial environments. Explore our comprehensive Electronics & Electricals category and find more specialized connectors from Anderson Power Products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing has an IP20 ingress protection rating, which offers protection against solid foreign objects larger than 12mm and low moisture.
The body of this connector housing is constructed from polycarbonate, providing strong electrical insulation and durability.
This model features a bottom cable entry angle, which aids in cable management and installation.
It is compatible with PP75 series contacts, which include silver plated copper contacts rated at 30A, 75A, and 120A for high current applications.
This connector housing is suitable for applications in process control, panel building, and other power applications in industrial environments.
Yes, the modules of this connector housing are genderless, allowing for design flexibility and easy assembly.
The country of origin for this connector housing is the United States.
The contacts used with this housing are rated for 30A, 75A, and 120A, depending on the specific contact selected.
Yes, the modules can be permanently secured using cyanoacrylate adhesives if required.
The model number of this connector housing is 5916G4.
This connector housing utilizes a cable mount type for installation.
This product is UL Listed (E26226) and CSA Certified (LR 25154) for safety and reliability in compliance with North American safety standards.
