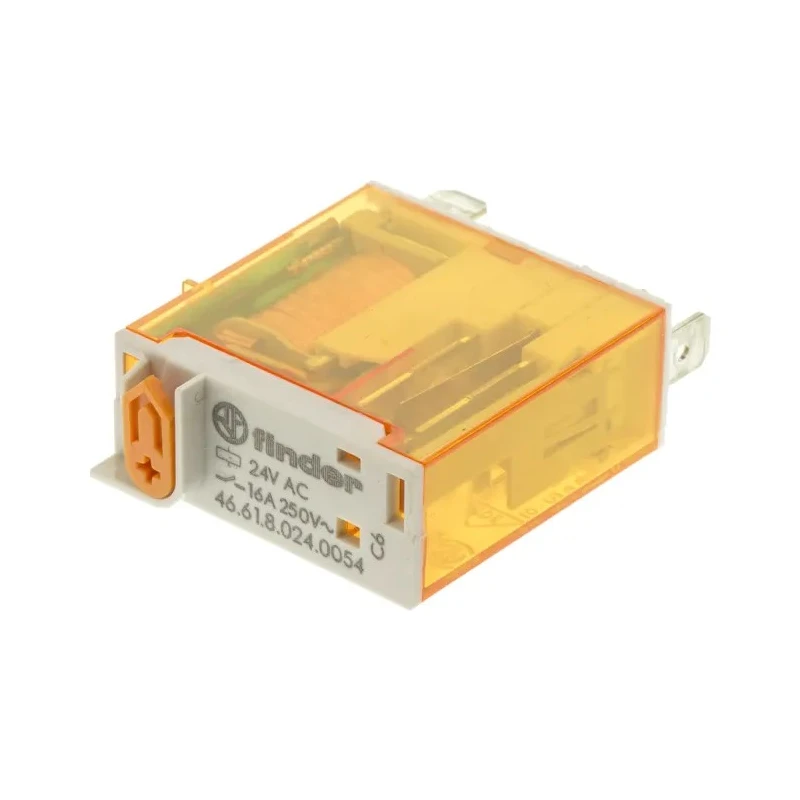

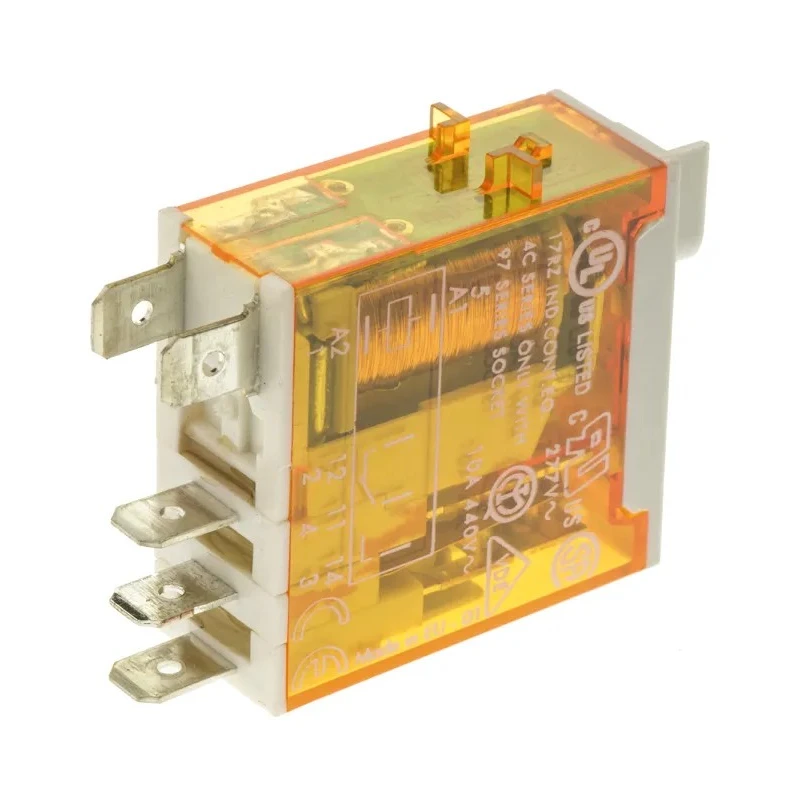

Finder PCB Power Relay 24V AC Coil 16A Switching Current SPDT 46.61.8.024.0054

Finder 46.61.8.024.0054 PCB Power Relay is engineered for high performance and reliability in a compact PCB-mount design. Featuring a 24V AC coil voltage and 16A switching current, this single pole double throw (SPDT) relay is ideal for industrial, automation, electrical distribution, and control panel applications.

The relay's quick connect terminal design facilitates fast and secure wiring, reducing installation time and maintenance effort. Its compact form factor with dimensions of 29mm length, 32.8mm height, and 12.4mm width makes it space-efficient for PCB mounting.

Operating across a wide temperature range (-40°C to +70°C), this relay is suitable for harsh environmental conditions including outdoor and industrial settings. Its switching capability supports up to 250V AC and 125V DC, allowing for versatile use in automation systems such as blinds, shutters, road and tunnel lighting, lifts, bottling plants, and cranes.

Constructed with silver alloy contacts, it ensures high conductivity and long service life. The coil resistance of 320Ω and coil power of 1.2W contribute to energy-efficient operation. The relay also features strong electrical insulation rated at 6kV between coil and contacts, enhancing safety and operational reliability.

Operates with a 24V AC coil voltage for standard industrial power requirements. Supports a 16A switching current suitable for controlling moderate to high loads. SPDT contact arrangement offers switching flexibility for various circuit designs.

Quick connect terminals ease installation and reduce wiring errors. Compact dimensions fit efficiently on printed circuit boards (29mm x 32.8mm x 12.4mm). Wide operational temperature range from -40°C to 70°C for diverse environments.

High switching voltages of 250V AC and 125V DC ensure broad application compatibility. Silver alloy contacts offer durability and reliable electrical performance. Low coil power consumption with 1.2W and 320Ω coil resistance for energy savings.

High insulation rating of 6kV between coil and contacts improves surge protection. Complies with international standards including RoHS, CE, CSA, and others for quality assurance.

This relay is well-suited for applications in industrial automation, building management, electric distribution systems, control panels, lifts and elevators, bottling plants, cranes, and road/tunnel lighting systems. Its design ensures both reliability and ease of integration in various electronic and electrical projects.
