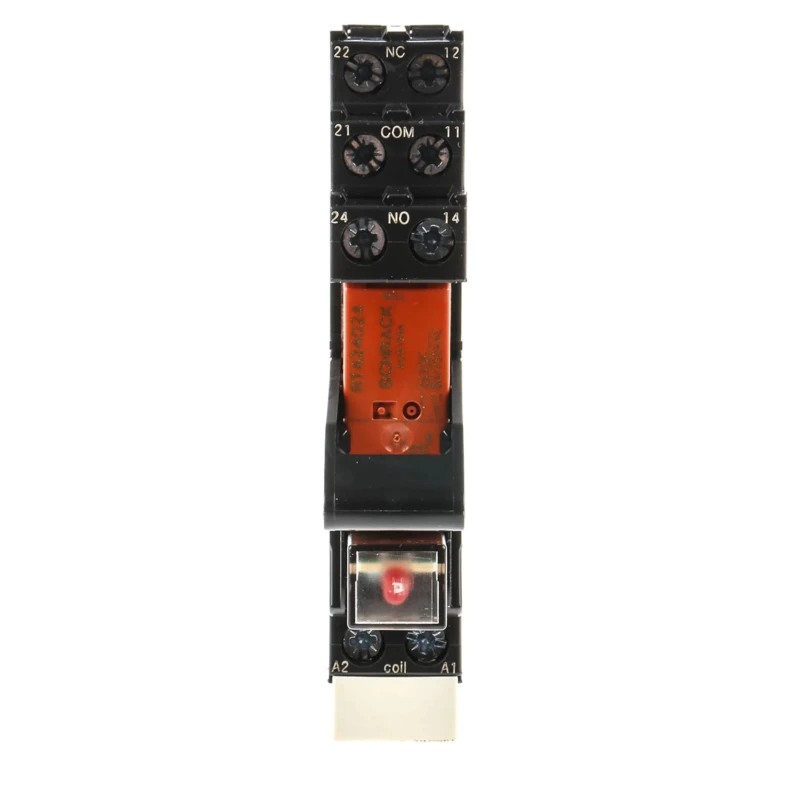

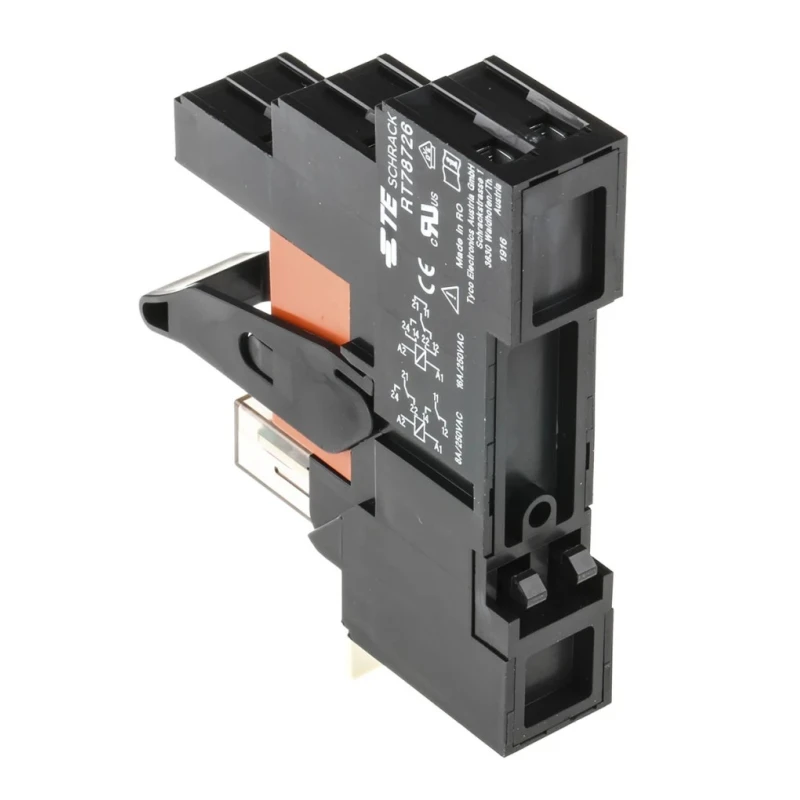

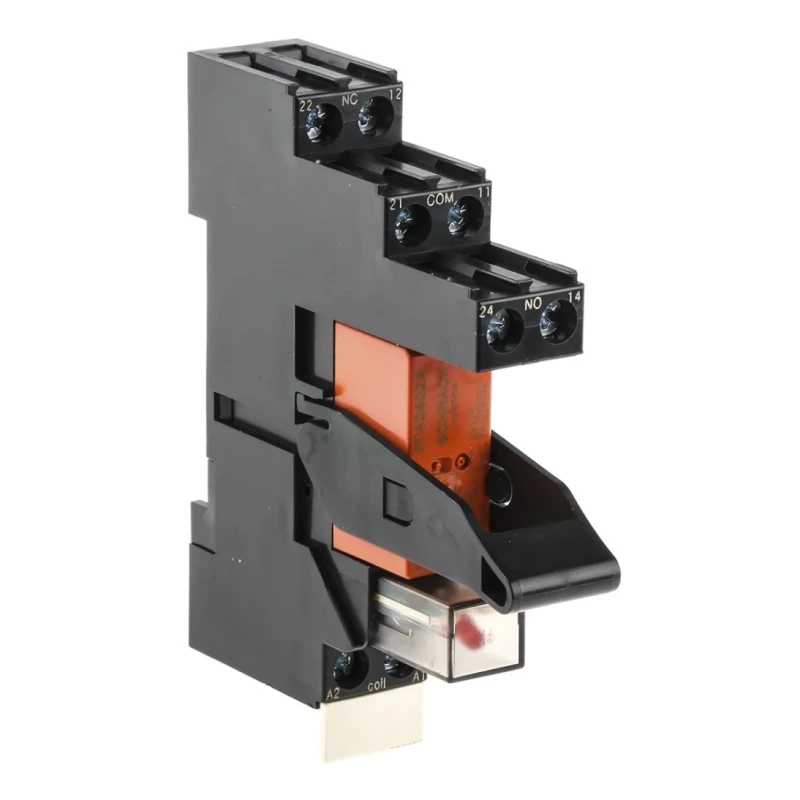

TE Connectivity RT Series Electromechanical Interface Relay Module DIN Rail Mount 24V DC Coil DPDT 8A RT4S4LC4 1-1415073-1

TE Connectivity RT4S4LC4 1-1415073-1 is a compact electromechanical interface relay module designed for industrial automation and control systems. This model features a 24V DC coil and a double pole double throw (DPDT) contact configuration, providing versatile switching options in a robust form factor optimized for DIN rail mounting.

The relay module supports a coil current of 16.67mA with a coil resistance of 1440Ω, ensuring efficient operation. The contacts are rated for 8A switching current and can handle voltages up to 250VAC and 24V DC, making it suitable for various industrial electrical loads.

Constructed with durable silver alloy contact material, this relay offers reliable electrical performance and long service life. Its small dimensions (77mm length, 15.8mm width, 69mm height) allow for high-density installation in constrained electrical panels.

Designed for robust industrial use, the RT Series relay is rated for operating temperatures between -20°C and 85°C and features a reinforced insulation protection class II. The coil-to-contact isolation voltage reaches up to 5000V, enhancing safety and electromagnetic compatibility.

Installation is straightforward with screw-type terminals, and mounting is compatible with standard DIN rails or chassis options. This relay module excels in industrial process control, motor control applications, electrical isolation, and signal conditioning, making it a versatile component in automation systems.

It meets international standards and certifications including RoHS, IEC 61810-1, IEC 60664-1, IEC 61984, as well as approvals from VDE, UL (Canada & US), BEAB, and SEMKO, ensuring compliance and reliability for global industrial use.

Designed for compact industrial panel installations with a small footprint. Coil operates at 24V DC with 16.67mA current consumption. Double Pole Double Throw (DPDT) switching contacts rated for 8A at 250VAC. Durable silver alloy contact material for reliable switching performance.

Mounts easily on DIN rails with screw terminal connections. Wide operating temperature range from -20°C to 85°C. Isolation voltage between coil and contacts up to 5000V for safety and noise immunity. Suitable for industrial process control, motor control, and signal matching applications.

Approvals include RoHS compliance, VDE, UL (Canada & US), BEAB, and SEMKO certifications. Explore a wide range of Interface Relay Modules and electromechanical components at EnvMart for reliable industrial automation solutions.
