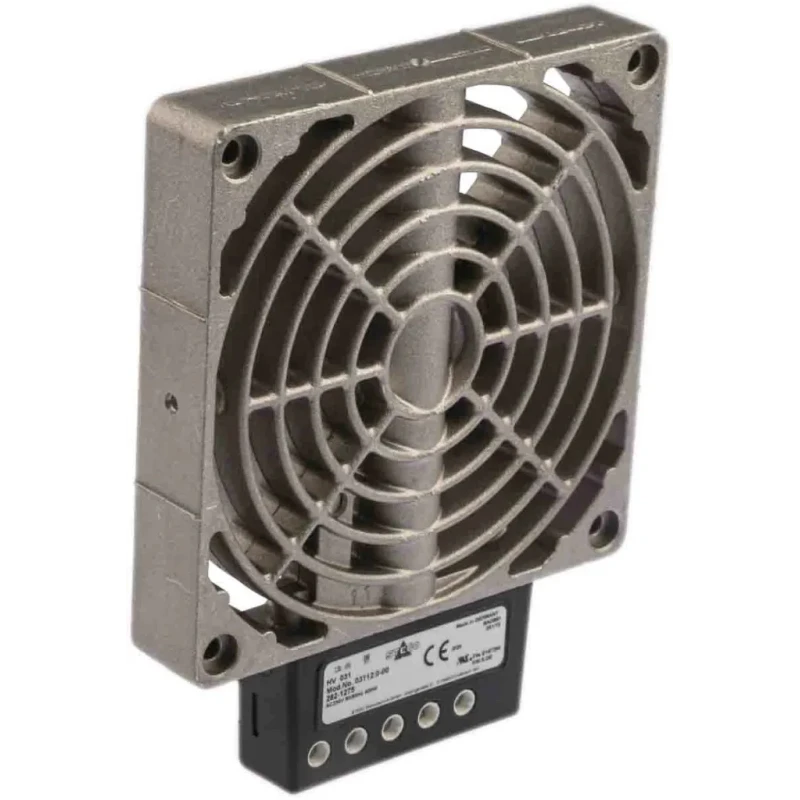

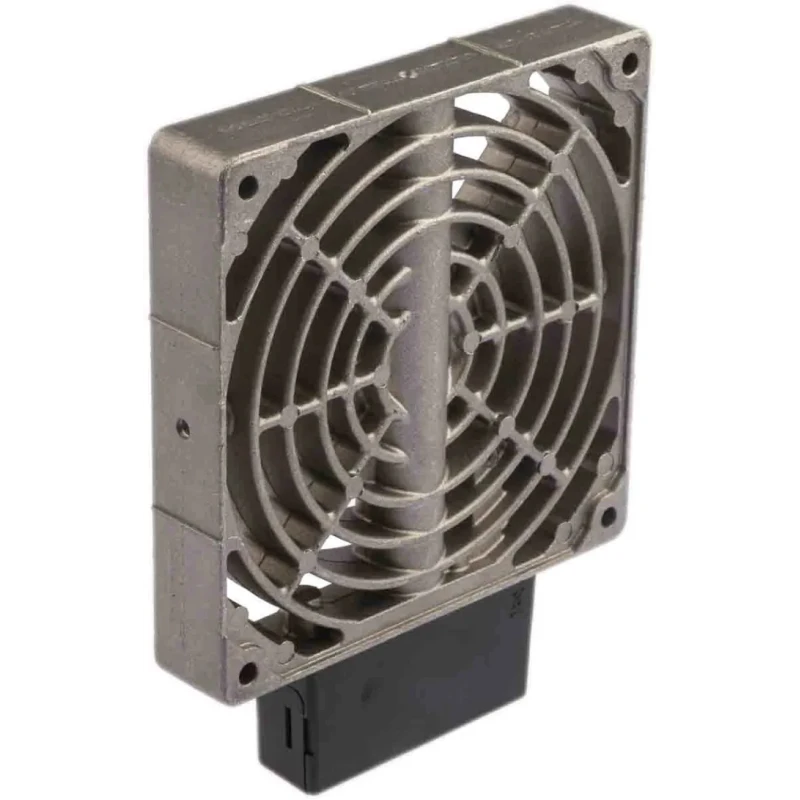

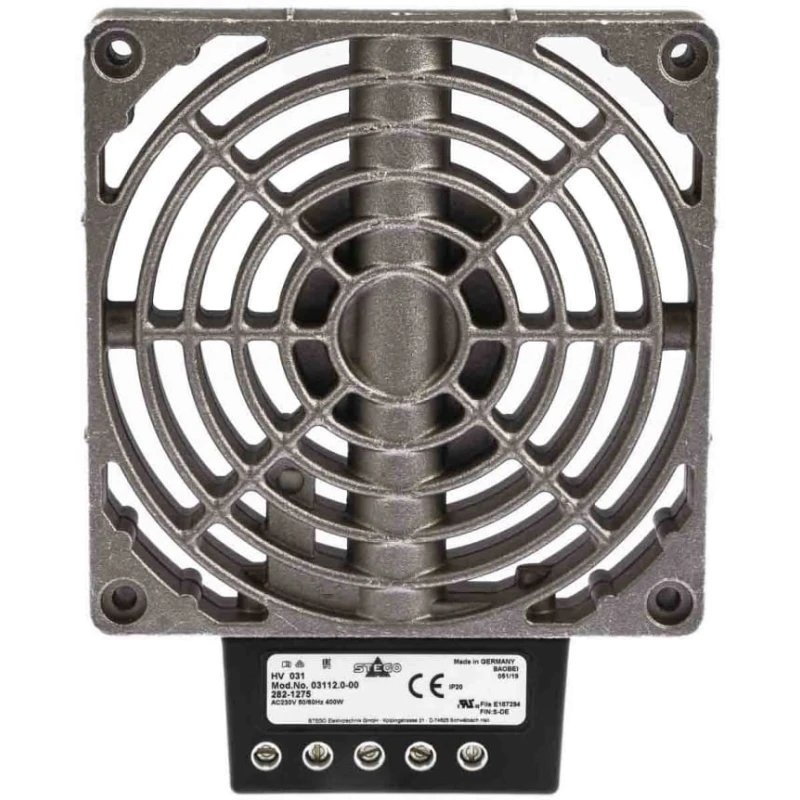

STEGO Enclosure Heater, 230V AC, 400W Input Power, 400W Output Power, 119mm x 151mm, DIN Rail Mount 03112.0-00
Specifications
| Country of Origin | India |
|---|---|
| Brand | STEGO |
| Mounting | clip for 35mm DIN rail, EN 60 715 |
| Air Flow | 108m³/h |
| Connection | 3-pole terminal AWG 14 max. (2.5mm2), torque 0.8Nm max |
| Connection Type | 3-Pole Terminal |
| Depth | 151mm |
| IP Rating | IP20 |
| Width | 119mm |
| Output Power | 400W |
| Mount Type | DIN Rail |
| Input power | 400W |
| Heating element | high performance cartridge |
| Maximum Operating Temperature | 158°C |
| Minimum Operating Temperature | -49°C |
| Supply Voltage | 230V ac |
| Overheat Protection | built-in temperature limiter |
| Mounting Position | horizontal |
| Standards/Approvals | VDE (230V only), UL File No. E187294, CE, RoHS, cURus |
| Operating / Storage temperature | -49 to +158°F (-45 to +70°C) |
| Heater body | die-cast aluminum, glass bead finish |
| Connection housing | plastic, UL 94V-0, black |
| Protection class / Protection type | I (grounded) / IP20 |
| Axial fan, ball bearing service life | 50,000h at 77°F (25°C) |
| Axial fan connection | 2-pole terminal AWG 14 max. (2.5mm2), terminals L2/N2 |
| STEGO Enclosure Heater, 230V ac, 150W Output, 150W Input 80mm x 112 mmBrand | STEGO |
Key Features
- Operates at 230V AC supply voltage with 3-pole terminal connection.
- Compact dimensions measuring 119mm width by 151mm depth.
- Equipped with a built-in temperature limiter for overheat protection.
- Constructed with die-cast aluminum body with glass bead finish for durability.
- Mounts horizontally on standard 35mm DIN rail using clip mounting system.
- Suitable for operating temperature range from -49°C to 158°C.
- Rated with IP20 protection and protection class I grounded design.
- Axial fan with ball bearing ensures service life of 50,000 hours at 25°C.
Product Description
STEGO 03112.0-00 Enclosure Heater is a high-performance industrial heating device designed for maintaining optimal temperature inside electrical enclosures and preventing condensation that can damage sensitive components. Operating at 230V AC, it provides 400W input and output power with efficient heat distribution through a high-performance cartridge element.
The heater features a robust die-cast aluminum body finished with a glass bead texture for corrosion resistance and durability in industrial environments. It mounts easily on a 35mm DIN rail in horizontal orientation, making it suitable for various electrical panel setups.
Overheat protection is ensured by a built-in temperature limiter, while the IP20 rated enclosure guarantees moderate protection against solid particles. The heater is grounded as Class I for electrical safety and is suitable for a wide operating temperature range from -49°C to 158°C.
An axial fan with ball bearings supports efficient air circulation within the enclosure, boasting a service life of approximately 50,000 hours at 25°C, although fans must be purchased separately. Connection terminals support AWG 14 cables with torque specifications of up to 0.8 Nm. The plastic connection housing complies with UL 94V-0 standards, ensuring flame retardance.
Operates at 230V AC with 400W power input and output. Compact size of 119mm width and 151mm depth for easy enclosure integration. Robust aluminum heater body with corrosion-resistant glass bead finish. DIN rail clip mounting suitable for 35mm rails.
Built-in overheat protection via temperature limiter. Operating temperature range from -49°C to 158°C suits extreme conditions. IP20 protection rating with grounded Class I protection. Requires separately purchased axial fan for air circulation (stock no. 211-9336 or 211-9314).
This enclosure heater is widely used in industrial control panels, automation systems, manufacturing facilities, and HVAC enclosures to ensure reliable operation of electronic devices in cold or humid environments. Its durable construction and safety features meet multiple international standards including VDE, UL, CE, RoHS, and cURus certifications (230V models).
Explore EnvMart’s comprehensive range of industrial Enclosure Heaters and electrical protection products for advanced solutions to your automation and temperature control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 400W input and output power, ensuring efficient heat distribution within electrical enclosures.
It is suitable for an operating temperature range from -49°C to 158°C, making it effective in extreme conditions.
It mounts horizontally on a standard 35mm DIN rail using a clip mounting system, allowing for easy installation in electrical panels.
It features a built-in temperature limiter that provides overheat protection, ensuring safe operation.
The heater has an IP20 protection rating, which provides moderate protection against solid particles.
The heater body is made of die-cast aluminum with a glass bead finish for corrosion resistance and durability.
It has an airflow capacity of 108m³/h, which aids in effective heat distribution within the enclosure.
It utilizes a 3-pole terminal connection for AWG 14 cables, with a maximum torque specification of 0.8 Nm.
The dimensions of this model are 119mm in width and 151mm in depth, allowing for compact integration into enclosures.
It complies with multiple international standards, including VDE, UL, CE, RoHS, and cURus certifications for 230V models.
The axial fan, equipped with ball bearings, has a service life of approximately 50,000 hours at 25°C.
No, the axial fan must be purchased separately, with stock numbers 211-9336 or 211-9314 available for reference.
