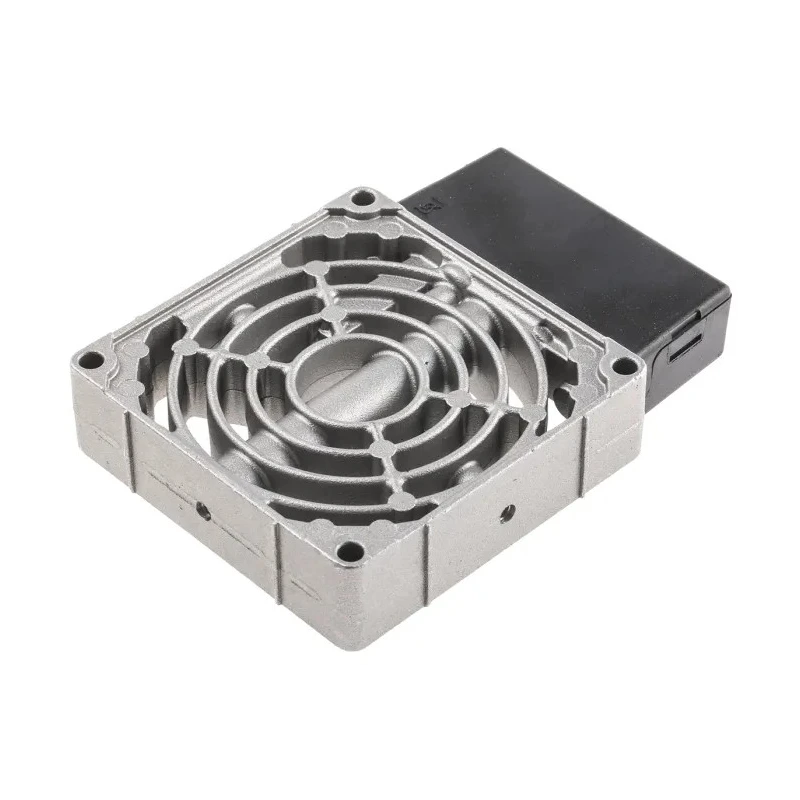

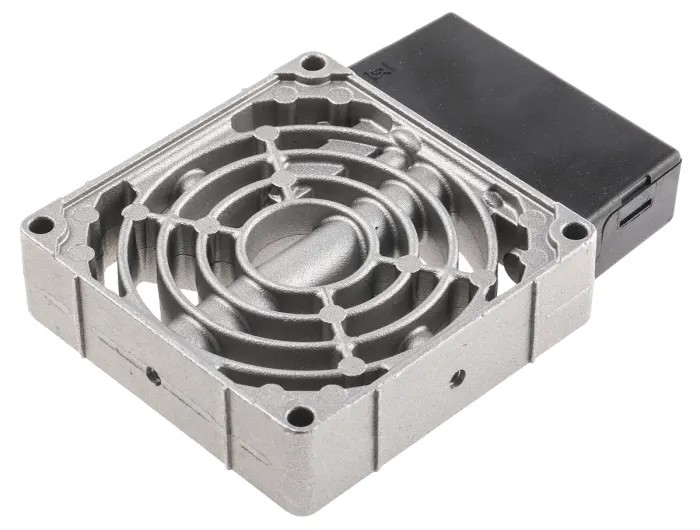

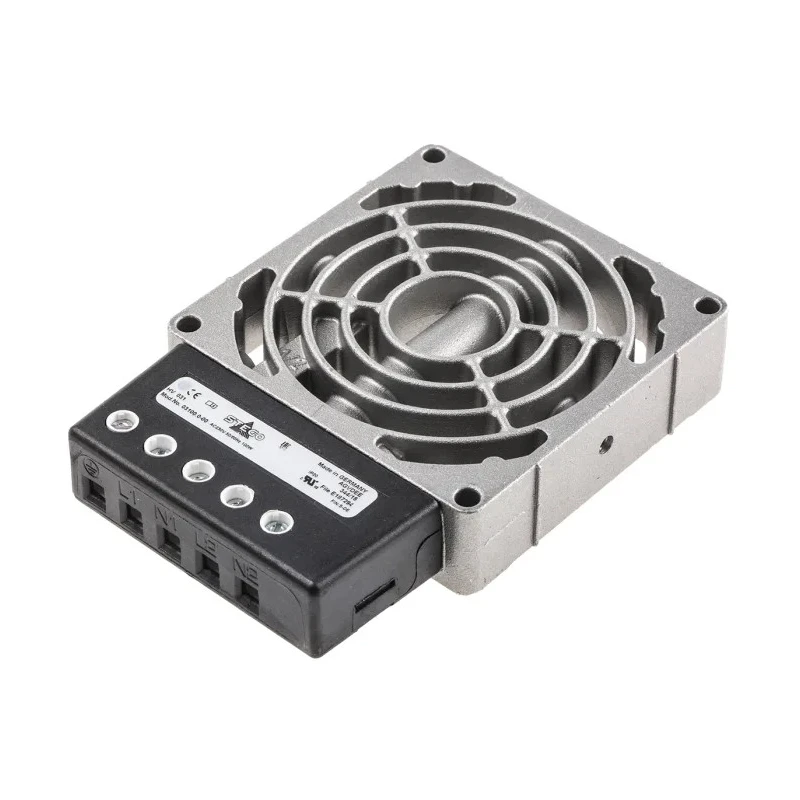

STEGO Enclosure Heater 230V AC 100W Output, 100W Input, DIN Rail Mount 80mm x 112mm 03100.0-00
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 60Hz |
| Brand | STEGO |
| Mounting | clip for 35mm DIN rail, EN 60 715 |
| Air Flow | 35m³/h |
| Connection | 3-pole terminal AWG 14 max. (2.5mm2), torque 0.8Nm max |
| Connection Type | Screw |
| Depth | 112mm |
| IP Rating | IP20 |
| Width | 80mm |
| Output Power | 100W |
| Mount Type | DIN Rail |
| Series | HV |
| Input power | 100W |
| Heating element | high performance cartridge |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -45°C |
| Supply Voltage | 230V ac |
| Overheat Protection | built-in temperature limiter |
| Mounting Position | Vertical |
| Standards/Approvals | CE, VDE (230V only), UL File No. E187294, cURus, RoHS |
| Operating / Storage temperature | -49 to +158°F (-45 to +70°C) |
| Heater body | die-cast aluminum, glass bead finish |
| Connection housing | plastic, UL 94V-0, black |
| Protection class / Protection type | I (grounded) / IP20 |
| Axial fan, ball bearing service life | 50,000h at 77°F (25°C) |
| Axial fan connection | 2-pole terminal AWG 14 max. (2.5mm2), terminals L2/N2 |
Key Features
- This enclosure heater uses a high performance cartridge heating element for consistent internal temperature.
- Equipped with built-in temperature limiter for overheat protection.
- Heater body made of die-cast aluminum with glass bead finish for durability.
- Mounts vertically using a clip for 35mm DIN rail systems.
- Protection class I with IP20 rating, suitable for industrial electrical enclosures.
- Operates within temperature range -45°C to +70°C for versatile applications.
- Includes axial fan connection but fans are sold separately.
- Complies with CE, VDE, UL File No. E187294, cURus, and RoHS standards.
Product Description
STEGO 03100.0-00 Enclosure Heater is a high performance, compact heating solution designed for industrial electrical enclosures requiring condensate prevention and stable interior air temperature. It operates on 230V AC with a 100W output power and 100W input power, ensuring efficient heat distribution within enclosures.
The heater utilizes a robust cartridge heating element with a die-cast aluminum body finished with glass bead treatment, providing excellent durability and heat conduction. It includes a built-in temperature limiter to prevent overheating, enhancing safety and reliability during continuous operation.
Mounting is achieved via a clip suited to 35mm DIN rails and the unit is designed for vertical installation. The enclosure heater is rated IP20 with protection class I (grounded), suitable for indoor electrical and industrial environments. The device supports axial fan connection to improve airflow, improving heating efficiency; however, fans must be purchased separately as per specific enclosure requirements.
Operating temperature range spans from -45°C minimum to 70°C maximum, accommodating diverse industrial and commercial applications including electrical enclosure heating, automation cabinets, and HVAC control panels. The product conforms to multiple international standards including CE, VDE for 230V versions, UL, cURus, and RoHS, ensuring quality and compliance.
This heater prevents condensation formation inside electrical enclosures to avoid equipment damage. Ideal for applications in industrial automation, electrical enclosures, HVAC, manufacturing, and water treatment systems.
Durable, efficient heating element with long service life and safety features. Compact size: 80mm width and 112mm depth with ventilated fan connection capability. High reliability achieved by protection class I and temperature limiter.
Comprehensive international safety and quality approvals.
For optimal use, fans compatible with this heater must be sourced separately as per stock numbers provided in the product documentation. Explore the range of Enclosure Heaters at EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The heater has an output power of 100W, ensuring efficient heat distribution within enclosures.
It operates within a temperature range of -45°C to +70°C, accommodating diverse industrial applications.
The heater mounts vertically using a clip designed for 35mm DIN rail systems, complying with EN 60 715 standards.
This unit utilizes a high performance cartridge heating element for consistent internal temperature control.
The heater has a width of 80mm and a depth of 112mm, making it compact for various installations.
It is rated IP20, indicating it is suitable for indoor use in electrical enclosures.
Yes, it is equipped with a built-in temperature limiter to prevent overheating during operation.
The heater features a screw connection type with a 3-pole terminal, allowing for a maximum wire size of 2.5mm².
It complies with multiple standards including CE, VDE, UL File No. E187294, cURus, and RoHS.
Yes, it includes a connection for an axial fan to improve airflow, although fans must be purchased separately.
The heater body is made of die-cast aluminum with a glass bead finish, providing durability and effective heat conduction.
The heater supports an airflow capacity of 35m³/h, enhancing its heating efficiency in enclosures.
