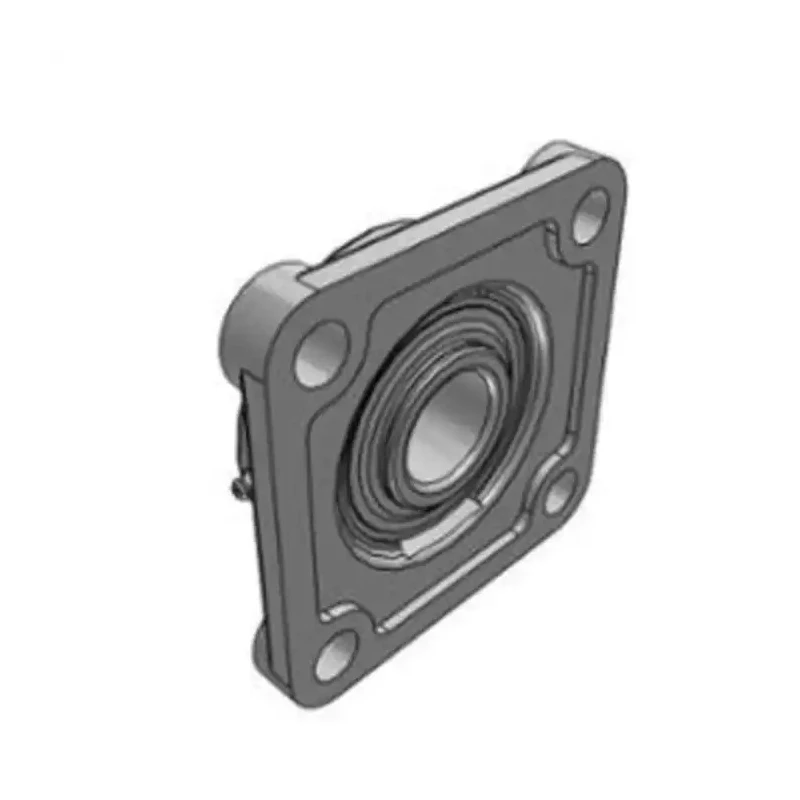

SKF 4 Hole Cylindrical Flange Bearing Unit 40 mm ID, Set Screw Locking, Cast Iron Housing UCF 308

Free Delivery in India | Lowest Global Shipping Charges

SKF 4 Hole Cylindrical Flange Bearing Unit 40 mm ID, Set Screw Locking, Cast Iron Housing UCF 308



Category Bearing Units Brand SKF Condition New

Specifications

Country of Origin	China
Brand	SKF
Material	Cast Iron
Length	149mm
Model	UCF 308
Depth	112mm
Width	56mm
Series	UCF
Inside Diameter	40mm
Limiting Speed	4200rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	24kN
Dynamic Load Rating	41kN
Mount Hole Size	19 mm
Mount Hole Centre-to-Centre	112mm
Number of Mount Holes	4
Locking Type	Set Screw

Key Features

Features a 4-hole mounting pattern for stable attachment.
Constructed from durable cast iron for industrial applications.
Cylindrical bore design provides reliable shaft support.
Open end type housing facilitates easy inspection and maintenance.
Designed for a static load rating of 24 kN and dynamic load rating of 41 kN.
Limits speed up to 4200 rpm suitable for rotary bearing applications.
Mount hole size is 19 mm with a center-to-center distance of 112 mm.
Housing dimensions measure 149 mm length, 56 mm width, and 112 mm depth.

Product Description

SKF UCF 308 is a high-quality 4 hole cylindrical flange bearing unit featuring a 40 mm inside diameter and manufactured with a cast iron housing for strength and durability. It incorporates a set screw locking mechanism enabling secure fixation on shafts in demanding operational environments.

The unit's cylindrical bore and open end type facilitate straightforward installation and maintenance. The robust construction allows it to sustain a static load rating of 24 kN and a dynamic load rating of 41 kN, while supporting rotational speeds of up to 4200 rpm. The flange unit has four mounting holes sized 19 mm, spaced 112 mm centre-to-centre, ensuring stable attachment to surfaces.

Its housing dimensions are 149 mm in length, 56 mm in width, and 112 mm in depth, providing a compact yet resilient solution for supporting rotating shafts effectively.

These flange bearing units by SKF are designed for industrial and mechanical applications such as manufacturing plants, conveyor systems, agricultural equipment, and HVAC machinery, where reliable shaft support and long service life are critical.

Manufactured in China under the UCF series, this SKF bearing unit conforms to rigorous quality standards ensuring performance and durability. Features a 4-hole mounting pattern for stable attachment. Constructed from durable cast iron for industrial applications.

Cylindrical bore design provides reliable shaft support. Open end type housing facilitates easy inspection and maintenance. Designed for a static load rating of 24 kN and dynamic load rating of 41 kN. Limits speed up to 4200 rpm suitable for rotary bearing applications.

Mount hole size is 19 mm with a center-to-center distance of 112 mm. Housing dimensions measure 149 mm length, 56 mm width, and 112 mm depth. Ideal for industrial, manufacturing, and mechanical machinery use. Explore more SKF Bearing Units and rotary bearing solutions at EnvMart to find matched components for your industrial setup.
