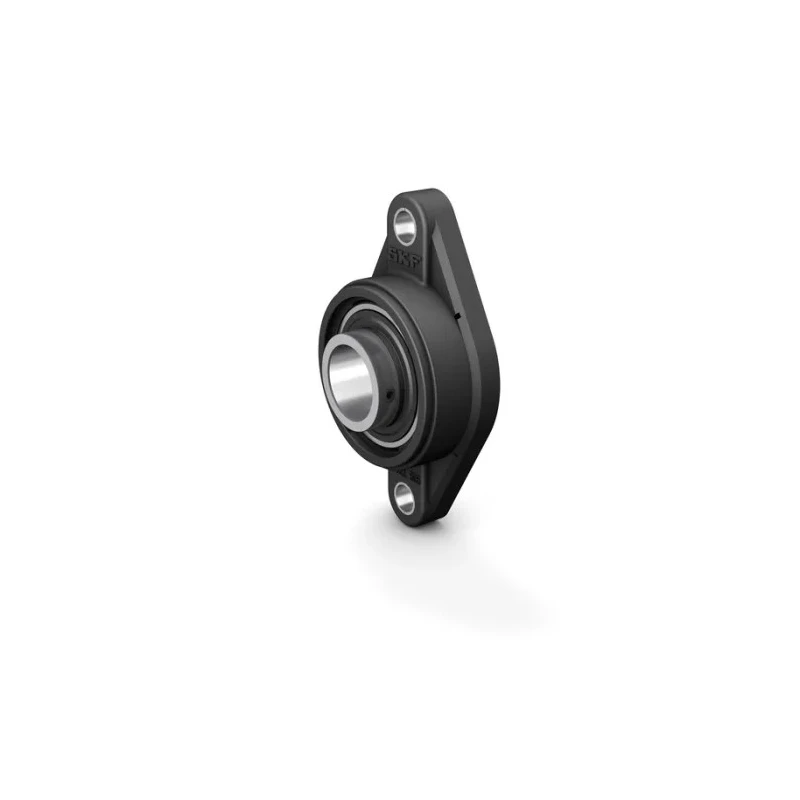

SKF 2 Hole Cylindrical Flange Bearing Unit Steel Housing 20 mm ID FYTBK 20 TF
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | SKF |
| Material | Steel |
| Length | 112mm |
| Model | FYTBK 20 TF |
| Depth | 37.3mm |
| Width | 37.3mm |
| Series | FYTBK |
| Inside Diameter | 20mm |
| Limiting Speed | 8500rpm |
| End Type | Open |
| Bore Type | Cylindrical |
| Static Load Rating | 6.55kN |
| Dynamic Load Rating | 12.7kN |
| Mount Hole Size | 12.3 mm |
| Mount Hole Centre-to-Centre | 90mm |
| Number of Mount Holes | 2 |
| Locking Type | Set Screw |
Key Features
- The housing is steel for robust support in industrial applications.
- It includes two mounting holes with a centre-to-centre distance of 90 mm for secure installation.
- The bearing uses a cylindrical bore type with set screw locking for easy shaft attachment.
- The product length is 112 mm with a width and depth of 37.3 mm each.
- Mount hole size is 12.3 mm to accommodate standard bolts.
- Designed with an open end type for accessibility and maintenance.
- Static load rating is 6.55 kN with a dynamic load rating of 12.7 kN for reliable performance.
- Limiting speed is 8500 rpm suitable for high-speed machinery.
Product Description
SKF FYTBK 20 TF is a 2 Hole Cylindrical Flange Bearing Unit featuring a steel housing and a 20 mm inside diameter. This flange bearing unit is designed for industrial, mechanical, and manufacturing applications requiring secure shaft support and easy mounting.
The unit consists of an insert bearing mounted inside a durable steel housing that can be bolted to the support surface using the two mounting holes spaced 90 mm apart. It uses a cylindrical bore type with set screw locking, allowing quick and reliable installation on shafts.
With an overall length of 112 mm and width and depth dimensions of 37.3 mm, this bearing unit provides a compact and sturdy solution. The mount hole diameter is 12.3 mm, while the end type is open, facilitating maintenance and inspection.
The bearing unit is designed to handle a static load rating of 6.55 kN and a dynamic load rating of 12.7 kN. It supports limiting speeds of up to 8500 rpm, making it suitable for high-speed rotary machinery in industries such as manufacturing, HVAC, and construction.
The housing is steel for strength and durability. Cylindrical bore with set screw locking ensures stable shaft attachment. Two mounting holes spaced 90 mm center-to-center allow secure mounting. Open end type design provides access for maintenance.
Static and dynamic load ratings support heavy operational loads. The product is made in Italy, reflecting SKF’s commitment to quality.
This bearing unit belongs to the FYTBK series, a trusted range of flange bearing units widely used in mechanical and fluid power applications. It is suitable for industrial, laboratory, manufacturing, HVAC, and construction machinery that require reliable and easy-to-mount bearing support.
Explore more SKF Bearing Units and related rotary bearing products on EnvMart for complete mechanical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inside diameter of this bearing unit is 20 mm.
This model has a length of 112 mm, with both width and depth measuring 37.3 mm each.
The static load rating of this bearing unit is 6.55 kN.
The dynamic load rating for this model is 12.7 kN.
The maximum limiting speed of this bearing unit is 8500 rpm.
The bearing unit features two mounting holes spaced 90 mm apart, center-to-center.
It uses a set screw locking mechanism for stable shaft attachment.
The mount hole size for this unit is 12.3 mm, accommodating standard bolts.
This bearing unit features an open end type design, facilitating maintenance and inspection.
The housing of this bearing unit is made of steel, providing robust support for industrial applications.
This bearing unit is manufactured in Italy.
It is suitable for industrial, laboratory, manufacturing, HVAC, and construction machinery that require reliable bearing support.
