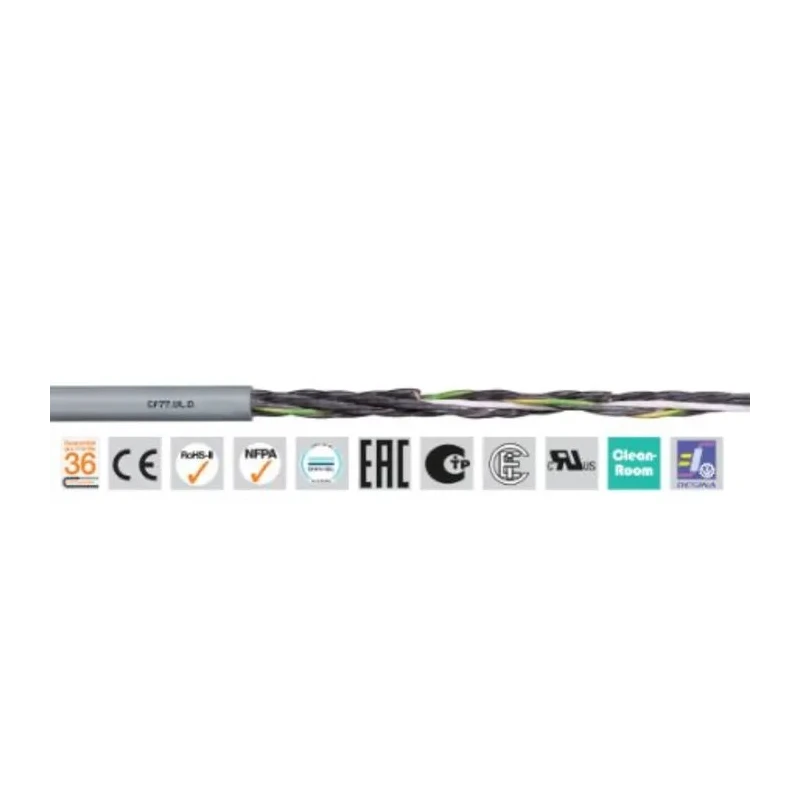

Igus chainflex CF77.UL.D Control Cable 4 Cores 1mm² 17 AWG Unscreened 300/500V Thermoplastic Elastomer CF77.UL.10.04.D (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF77.UL.10.04.D (50m) |
| Cable Length | 50m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 7mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, EN |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant, Halogen Free |
| American Wire Gauge | 17AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 1mm² |
Key Features
- Constructed with copper conductors for reliable electrical conductivity.
- Jacket made of thermoplastic elastomer in grey color, providing excellent abrasion and chemical resistance.
- Designed for heavy-duty industrial and control applications with high oil resistance.
- Flame retardant and halogen free, meeting IEC 60332-1-2 standards.
- Operating temperature range from -50°C minimum to 80°C maximum.
- Features a patented core bundle design to ensure durability under dynamic movement.
- Suitable for use in cable carriers and flexible e-chain applications with small bend radius requirements.
- Compliance with CE and EN standards ensures safety and performance.
Product Description
Igus CF77.UL.10.04.D (50m) Control Cable is a high-quality, 4-core electrical cable with 1mm² conductor cross-section (17 AWG). It features an unscreened design with a grey thermoplastic elastomer sheath, making it ideal for demanding industrial control and automation applications requiring flexibility and oil resistance.
This cable supports a voltage rating of 300/500V and operates reliably within a temperature range from -50°C to 80°C. The construction includes stranded copper conductors that ensure excellent electrical conductivity and mechanical resilience.
The thermoplastic elastomer jacket provides superior abrasion resistance and chemical protection, suitable for harsh environments that involve oil and bio-oil exposure. Its patented core bundle design allows for a reduced bend radius, perfect for installations in cable carriers, flexible e-chain applications, and environments requiring continuous flexing.
Safety and compliance are addressed with flame retardant and halogen-free materials meeting IEC 60332-1-2, CE, and EN standards. The cable's robustness and certification make it a reliable choice for machining units, packaging machinery, storage and retrieval systems, refrigeration sectors, and more.
Manufactured in Germany, this Igus cable guarantees longevity and performance in industrial and automation settings. Its large 50-meter length enables accommodating extensive installations with ease.
Constructed with copper conductors for reliable electrical conductivity. Jacket made of thermoplastic elastomer in grey color, providing excellent abrasion and chemical resistance. Designed for heavy-duty industrial and control applications with high oil resistance.
Flame retardant and halogen free, meeting IEC 60332-1-2 standards. Operating temperature range from -50°C minimum to 80°C maximum. Features a patented core bundle design to ensure durability under dynamic movement. Suitable for use in cable carriers and flexible e-chain applications with small bend radius requirements.
Compliance with CE and EN standards ensures safety and performance. Manufactured in Germany, assuring quality and reliability. Explore the range of high-performance cables and control solutions available at EnvMart for your industrial, automation, and electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable has a voltage rating of 300/500V.
It operates reliably within a temperature range from -50°C to 80°C.
The cable features 4 cores.
The conductors are made of stranded copper, ensuring reliable electrical conductivity.
The outside diameter of the cable is 7mm.
Yes, it is designed for use in cable carriers and flexible e-chain applications with small bend radius requirements.
It features a jacket made of thermoplastic elastomer, which provides excellent abrasion and chemical resistance.
This model meets CE and EN standards, ensuring safety and performance.
The cable is flame retardant and halogen-free, meeting IEC 60332-1-2 standards.
The cable is 50 meters long, accommodating extensive installations with ease.
It is designed for heavy-duty industrial and control applications, including machining units, packaging machinery, and refrigeration sectors.
This control cable is manufactured in Germany, ensuring quality and reliability.
