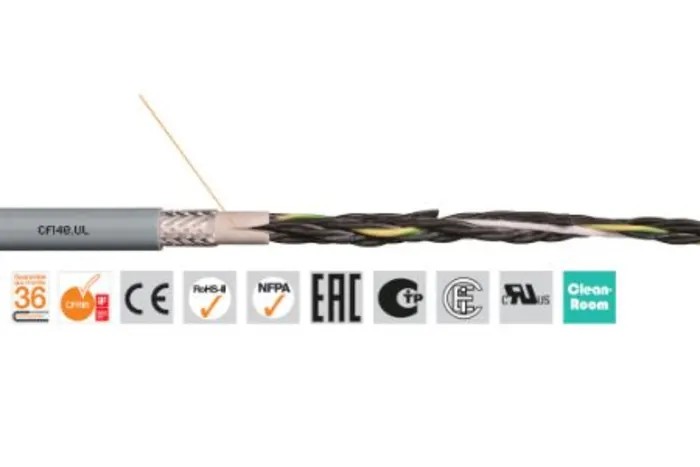

Igus Chainflex CF140.UL Screened Control Cable 7 Cores 0.75mm² 18 AWG Thermoplastic Elastomer Jacket CF140.07.07.UL (10m)

Igus CF140.07.07.UL (10m) is a high-quality screened control cable designed for medium duty industrial and automation applications. It features 7 cores with 0.75mm² (18 AWG) stranded copper conductors and is covered by a durable, grey thermoplastic elastomer jacket offering excellent oil resistance and abrasion protection.

This control cable supports voltages up to 300/500 V and operates reliably in temperatures ranging from -15°C to 70°C. The patented bundle design facilitates a small bend radius, making it ideal for installation in cable carriers (e-chains) and flexible mechanical environments requiring long travel and durability.

Its screened and armoured construction provides enhanced protection against electromagnetic interference (EMC/EMI) and mechanical stress. The flame retardant jacket complies with IEC 60332-1-2 and related standards, ensuring safety in case of fire.

Typical application areas include wood and stone processing, packaging machinery, supply systems, and handling or adjustment equipment in industrial settings. The cable is silicone-free and meets international standards such as CE, EN, UL/CSA, NFPA, and RoHS, ensuring environmental compliance and technical reliability.

Manufactured in Germany, this cable is suitable for use in industrial, automation, manufacturing, and control gear environments. Its robust design extends service life and minimizes downtime in demanding continuous flexing applications. The 10-meter length and 7-core configuration make it a versatile solution for various control wiring needs.

The cable is screened and armoured for EMC and mechanical protection. Its outside diameter measures 10 mm with a length of 10 meters. Rated voltage is 300/500 V suitable for control cable use. It has a stranded copper conductor of AWG 18 size ensuring flexibility.

Operating temperature ranges from -15°C to 70°C. The thermoplastic elastomer jacket is oil resistant and flame retardant. Designed for indoor or outdoor use above freezing temperatures. Compliance with CE and EN standards ensures safety and quality.

The cable is suitable for continuous flexing applications and e-chain use. Manufactured in Germany following RoHS and other relevant certifications. Explore EnvMart’s wide selection of Control Cables and industrial wiring solutions for reliable electrical and automation installations.
