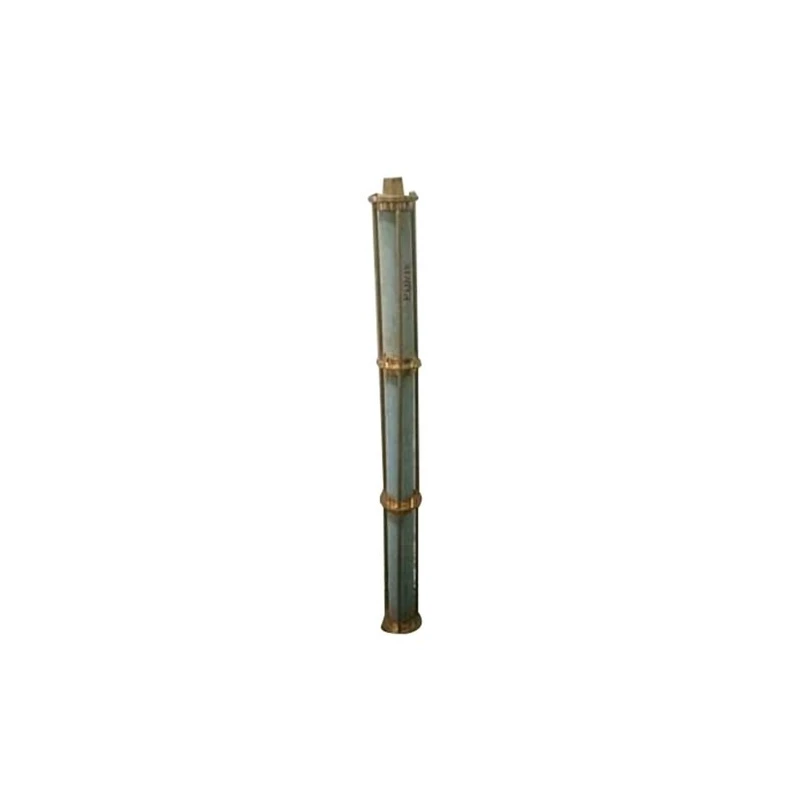

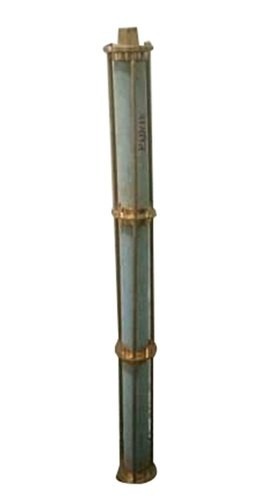

Industrial Casagrande Porous Tube Piezometer
Specifications
| Country of Origin | India |
|---|---|
| Applications | Industrial |
| Length | 12 Inches |
| Outer Diameter | 37 MM |
| Wall Thickness | 6MM |
| Filter Size | 60 Micronz |
Key Features
- For measuring pore water pressures
- Used to monitor piezo metric water levels
- Used to monitor ground water levels
- Used to measure pore pressure in an embankment
- Hydrological investigation.
Product Description
Casagrande Porous Tube PiezometersThe top Porous Tube Piezometers manufacturers and suppliers are from Roorkee, Uttarakhand. Casagrande type porous tube piezometers are used for measuring and controlling pore water pressure in soil and rock and to monitor the construction control and stability in embankments, dams, and reservoirs. A standpipe, with a porous piezometer tip connected at its lower end, is installed in a borehole. Bentonite and/or grout are used to seal the borehole above the "tip". The water level inside the "standpipe" is measured with the help of an electronic water level indicator and corresponds to the water pressure at the piezometer elevation. When required, the permeability of soil in the vicinity of the tip can be determined by increasing the water head in the standpipe, and observing its dissipation rate. Advantages: - (a) ideal fordermining the piezo-metric level during routine site investigation. (b) can also be installed after the completion of construction & therefore suitable for use in existing dams and embankments. The wide demand for our Porous Tube Piezometers testifies to its quality as well as performance levels.
- Monitoring pore-water pressure to determine the stability of slopes, embankments, and landfill dikes.
- Monitoring water draw down during pumping tests
Frequently Asked Questions
The primary use of the Industrial Casagrande Porous Tube Piezometer is to measure pore water pressures in soil and rock, which helps in monitoring the stability of slopes, embankments, and landfill dikes.
The Industrial Casagrande Porous Tube Piezometer has a length of 12 inches, an outer diameter of 37 mm, and a wall thickness of 6 mm.
The filter size of the Industrial Casagrande Porous Tube Piezometer is 60 microns, which allows for effective monitoring of pore water pressures.
Yes, the Industrial Casagrande Porous Tube Piezometer can be installed after the completion of construction, making it suitable for use in existing dams and embankments.
Bentonite and/or grout are used to seal the borehole above the piezometer tip, ensuring accurate measurements.
The water level inside the standpipe of the piezometer is measured with an electronic water level indicator, which corresponds to the water pressure at the piezometer elevation.
The Industrial Casagrande Porous Tube Piezometer is used in various applications, including hydrological investigations, monitoring groundwater levels, and conducting pumping tests.
This piezometer is manufactured in India, ensuring quality and performance that meets industry standards.
The advantages of the Industrial Casagrande Porous Tube Piezometer include its suitability for routine site investigations and its ability to monitor pore-water pressure effectively.
To purchase the Industrial Casagrande Porous Tube Piezometer, please contact our sales team or visit our website for more information on ordering.
