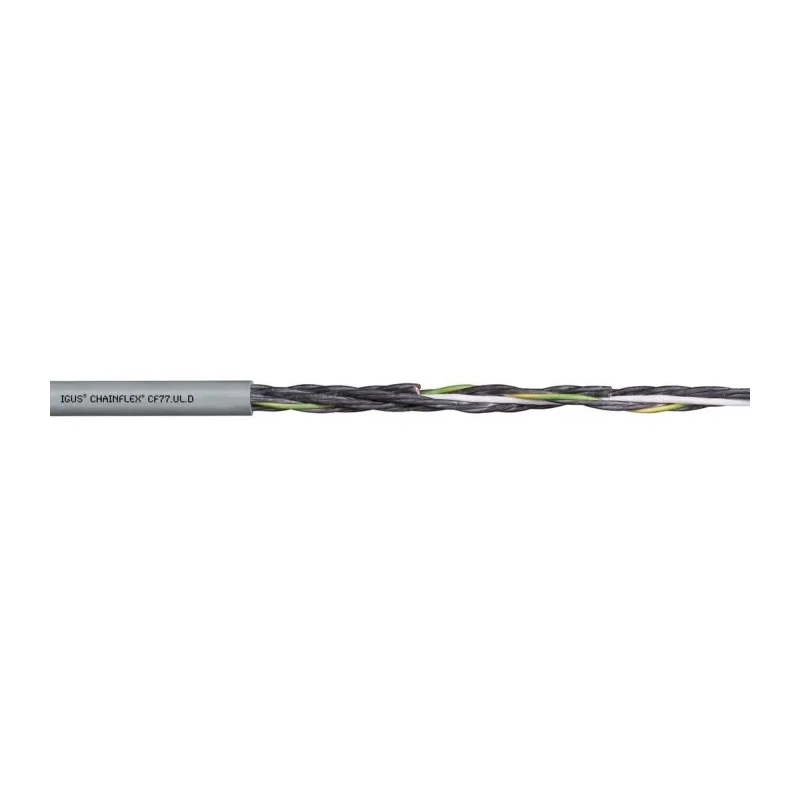

Igus chainflex CF77.UL.D Control Cable 5 Cores 2.5mm² 14 AWG Unscreened Armoured 25m Grey Polyurethane Sheath CF77.UL.25.05.D
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | Igus |
| Model | CF77.UL.25.05.D |
| Cable Length | 25m |
| Series | chainflex CF77.UL.D |
| Outside diameter | 10.5mm |
| Maximum Operating Temperature | 80°C |
| Outer Jacket | PUR |
| Number Of Cores | 5 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -25°C |
| Jacket Material | Polyurethane |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 14AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 2.5mm² |
Key Features
- The cable features five stranded copper conductors with a cross-sectional area of 2.5mm² (14 AWG).
- Constructed with a durable grey polyurethane outer jacket that is coolant, oil, hydrolysis, microbe, UV resistant, and flame retardant.
- Suitable for indoor and outdoor use with operating temperatures ranging from -25°C to 80°C.
- Rated for 1kV voltage and meets multiple standards including CE, UL, CSA, and IEC 60332-1-2 flame retardancy.
- Ideal for applications requiring flexibility and robustness such as machining centers, handling systems, and packaging industry environments.
- Available in lengths of 25 meters with an outer diameter of 10.5mm.
Product Description
Igus CF77.UL.25.05.D Control Cable is a high-performance unscreened cable designed for demanding industrial environments. It comprises five stranded copper conductors, each 2.5mm² (14 AWG), ensuring excellent current carrying capacity and flexibility.
The grey polyurethane (PUR) jacket provides exceptional resistance against coolant, oil, abrasion, hydrolysis, microbes, UV rays, and is flame retardant and halogen-free. This makes the cable suitable for use in both indoor and outdoor settings exposed to moderate solar radiation.
Rated at 1kV and armoured for mechanical protection, this control cable withstands operating temperatures from -25°C up to 80°C, accommodating a wide range of industrial conditions.
Compliance with multiple industry standards such as CE, CEI 20-35, cRUus, CSA, DIN EN 50363-4-1, IEC 60332-1-2, NFPA 79, UL, and VW-1 ensures reliable performance and safety.
This control cable is commonly used in automation systems, machining centres, machine tools, storage and retrieval systems, packaging machinery, and handling equipment. Its robust design allows unsupported travel distances up to 100 meters for gliding applications.
The cable has a flame retardant and halogen-free polyurethane jacket, making it safe for industrial environments. The armoured construction adds mechanical protection in high-stress installations. It is resistant to oils, coolants, and microbial attacks, increasing service life and reducing maintenance.
Suitable for use in industrial automation, manufacturing, HVAC, and commercial sectors. The 25-meter length and 10.5 mm diameter offer flexibility and versatility for installation needs. Set contains: 1 Control Cable, 5 Cores, 2.5mm² conductor, length 25 m.
Explore the wide range of industrial cables and Control Cables at EnvMart to find options suited for your specific automation and electrical system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The control cable features five stranded copper conductors, each with a cross-sectional area of 2.5mm² (14 AWG).
It can operate at a maximum temperature of 80°C.
This control cable is rated for a voltage of 1kV.
The outer diameter of the cable is 10.5mm.
Yes, it is suitable for both indoor and outdoor use, as it is designed to withstand moderate solar radiation.
The outer jacket is made of grey polyurethane (PUR), which provides resistance to coolant, oil, and UV rays.
The cable can operate in temperatures ranging from -25°C to 80°C.
It complies with multiple standards including CE, UL, CSA, IEC 60332-1-2, and NFPA 79.
The cable is available in a length of 25 meters.
The cable is flame retardant, making it suitable for industrial environments where fire safety is a concern.
It is suitable for applications in automation systems, machining centers, packaging machinery, and handling equipment.
This model is an unscreened control cable.
