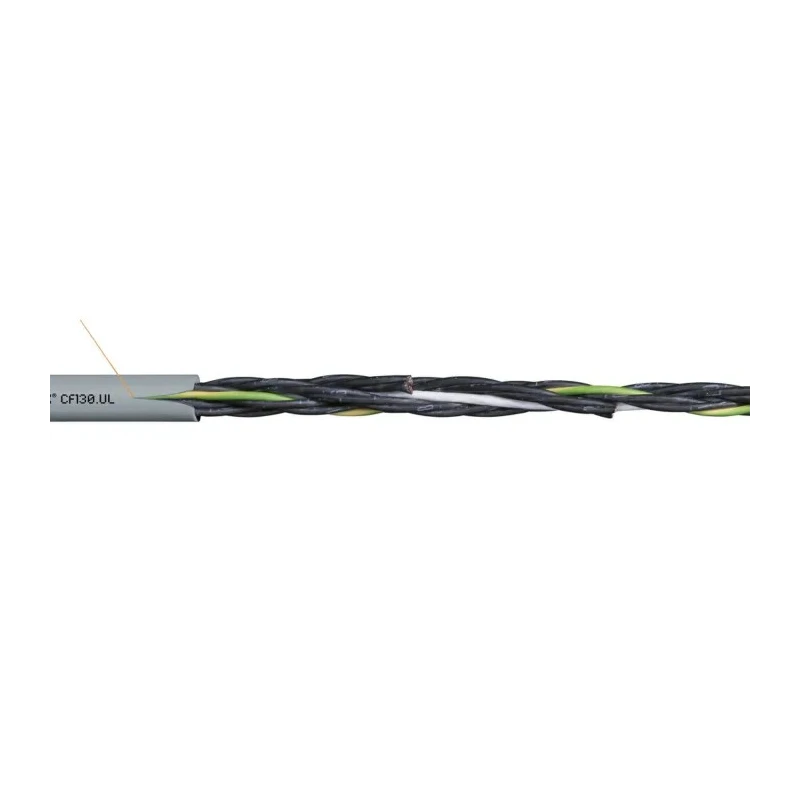

Igus Chainflex CF130.UL PVC Control Cable 4 Cores 0.5mm² 20 AWG 300V Unscreened Grey Polyvinyl Chloride Sheath CF130.05.04.UL
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Igus |
| Model | CF130.05.04.UL |
| Cable Length | 50m |
| Series | Chainflex CF130.UL |
| Outside diameter | 6mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Polyvinyl Chloride |
| Outer Sheath | Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10) |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 0.5mm² |
Key Features
- Fine-wire stranded copper conductors ensure high electrical conductivity.
- Grey polyvinyl chloride (PVC) sheath offers flame retardant properties.
- Designed for medium load requirements with torsion resistance.
- Suitable for freely suspended travel distances and gliding applications up to 50 m.
- Operates in temperature ranges from -5°C to 70°C safely.
- Complies with multiple international standards including IEC 60332-1-2, UL, cRUus, and CSA.
- Outer sheath is a low-adhesion PVC mixture optimized for Energy Chains® applications.
- Armoured and unscreened cable suitable for electrical, automation, and control use cases.
Product Description
Igus CF130.05.04.UL Chainflex® PVC Control Cable is a highly reliable cable designed for industrial and automation applications requiring medium mechanical load handling. This 4-core control cable offers a conductor cross-section of 0.5mm² (20 AWG), which provides excellent electrical performance primarily for control and signal transmission.
The cable features fine-wire stranded bare copper conductors compliant with EN 60228, ensuring flexibility and durability. The grey polyvinyl chloride (PVC) outer sheath is flame retardant according to IEC 60332-1-2 and other international fire safety standards, enhancing workplace safety.
CF130.05.04.UL cable is torsion resistant and designed for indoor use where freely suspended or gliding travel distances up to 50 meters are required, making it appropriate for use within cable carriers and robotic systems.
Operating temperature range from -5°C to 70°C allows for use in standard industrial environments. The unscreened and armoured construction offers protection without affecting signal integrity for typical control applications.
Fine-wire stranded copper conductors provide high conductivity and flexibility. Flame retardant PVC sheath ensures safety compliance. Torsion resistance prolongs cable life in dynamic applications. 50 m cable length supports extended automation setups.
Rated for 300V electrical voltage suitable for most control systems. Complies with standards: CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1. Armoured design for mechanical protection in industrial installations.
Low-adhesion outer sheath optimized for energy chain applications.
Ideal for electrical power and industrial cable applications within manufacturing, automation, HVAC, and laboratory environments. The cable is manufactured in Germany, ensuring consistent quality and reliability.
Explore additional options in Control Cable category at EnvMart for varied specifications and lengths to suit your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The control cable features fine-wire stranded bare copper conductors, which ensure high electrical conductivity and flexibility.
It can operate safely at a maximum temperature of 70°C.
This model has 4 cores.
The cable is rated for 300V electrical voltage, suitable for most control systems.
The outer jacket is made of grey polyvinyl chloride (PVC), which is flame retardant according to IEC 60332-1-2.
The cable length is 50 meters, making it suitable for extended automation setups.
Yes, it is designed for freely suspended travel distances and gliding applications up to 50 meters.
The cable features flame retardant properties, complying with fire safety standards such as IEC 60332-1-2.
The outside diameter of this control cable is 6mm.
It is manufactured in Germany, ensuring consistent quality and reliability.
This model is unscreened, designed for typical control applications without affecting signal integrity.
It is suitable for electrical, automation, and control use cases within manufacturing, automation, HVAC, and laboratory environments.
