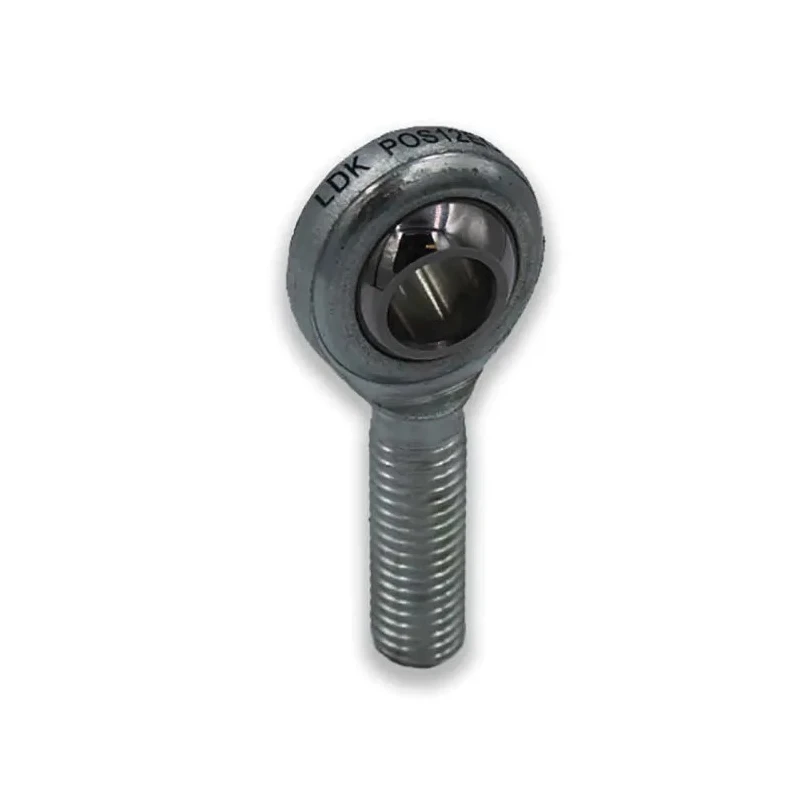

LDK M14 Male Carbon Steel Rod End Metric, 14mm Bore, Left Hand Thread POS 14ECL

LDK POS 14ECL M14 Male Carbon Steel Rod End Metric, 14mm Bore, Left Hand Thread provides a high quality rod end solution engineered to meet rigorous mechanical and fluid power system demands.

The rod end features a precision ground and polished ball manufactured from AISI 52100 bearing steel that is heat treated to achieve a hardness of HRC58-64. This ensures long-lasting wear resistance and durability in dynamic conditions.

The body is constructed from durable carbon steel with a clear zinc plating finish to resist corrosion and environmental degradation while maintaining structural integrity.

This rod end includes a 14mm bore diameter with an M14 male connection and left-hand thread direction according to metric standards, suitable for various mechanical system integrations.

The PTFE composite race and steel/PTFE composite sliding contact surfaces minimize friction and wear, enhancing operational life and reliability under load.

With a dynamic load rating of 17.2kN and static load rating of 28.2kN, this component is engineered for demanding load applications in industrial, manufacturing, HVAC, and fluid power applications.

Its compact sizes with a 34mm outside diameter and 77mm overall width make it adaptable for space-constrained assemblies requiring strong mechanical connections and rotational movement.

This rod end is made in China and carries no specific certifications or standards approvals, making it a solid choice for engineering projects requiring reliable metric rod ends with left hand threading.

Constructed with a carbon steel body that is clear zinc plated for corrosion resistance. Features a 14mm bore with M14 male connection and left-hand threading. Ball is made from AISI 52100 bearing steel, heat treated to HRC58-64 for high hardness and precision.

Dynamic load rating is 17.2kN and static load rating is 28.2kN for robust performance. Sliding contact surfaces combine steel and PTFE composite for reduced wear and friction. Overall width of the rod end is 77mm with an outside diameter of 34mm.

Designed according to metric thread standards with no specific approvals or certifications. Suitable for industrial, mechanical, fluid power, and bearing applications requiring precise movement and load handling. Explore more premium rotary bearing units and Rod Ends at EnvMart for your industrial machinery and mechanical system needs.
