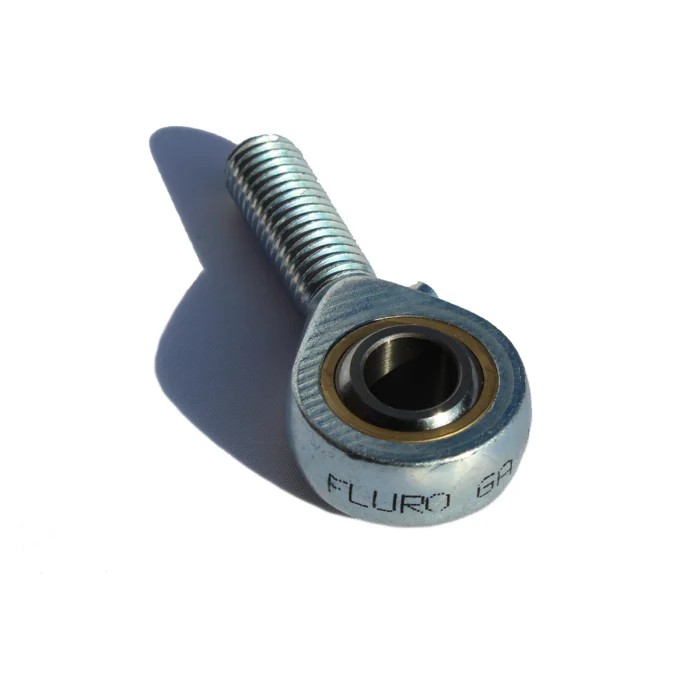

Fluro Galvanised Steel Rod End M12 x 1.75 Male Thread Metric, 12mm Bore GA12

Fluro GA12 galvanised steel rod end features a robust M12 x 1.75 male threaded metric connection with a 12mm bore, designed for precision mechanical and fluid power applications.

This rod end is constructed with high-quality galvanised steel for enhanced corrosion resistance and durability in demanding environments. It supports a dynamic load rating of 10 kN and a static load rating of 25.5 kN, making it suitable for handling substantial mechanical stresses.

The rod end’s right hand thread direction and male connection ensure compatibility with a wide range of mechanical assemblies. It is designed for operation within a temperature range of -50°C to 200°C, suitable for diverse industrial environments.

The overall width measures 70mm, providing a compact yet sturdy form factor. The housing is regreasable through a flush type grease fitting allowing easy maintenance and longer service life.

Engineered to metric thread standards and manufactured in Germany, the GA12 model exemplifies quality and reliability. This rod end is ideal for industrial, manufacturing, hydraulic, and fluid power applications where precision and robustness are critical.

Manufactured from durable galvanised steel material. Male threaded connection size M12 x 1.75 with a bore diameter of 12mm. Dynamic load rating of 10 kN and static load rating of 25.5 kN. Right hand thread direction with male connection gender.

Suitable for operation between -50°C and 200°C temperature range. Overall width of the rod end is 70mm. Regreasable housing with flush type grease fitting ensures maintenance ease. Complies with metric thread standards for industrial compatibility.

Manufactured in Germany ensuring high-quality engineering standards. Explore the comprehensive range of Fluro Rod Ends available at EnvMart for all your industrial rotary bearing needs.
